Description
**Discontinued, Replacement: SRP-350 Plus III **

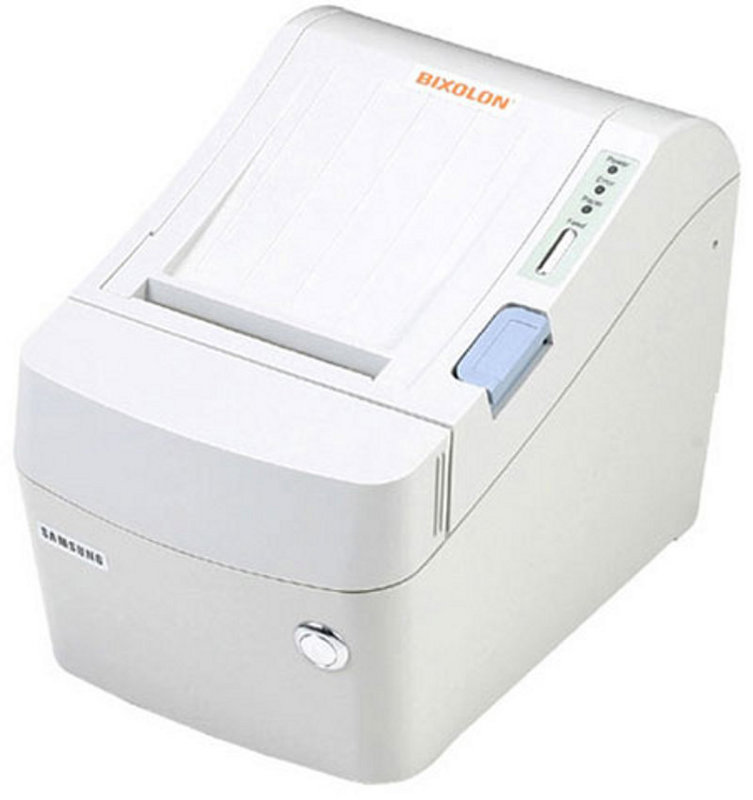

Samsung Mini Printers keep at the forefront of technology and commitment to reliability with new model. Two colour thermal printing capability makes it ideal for corporate branding, highlighting specials, coupons, customer loyalty and restaurant applications. Printing at maximum speed of 200 mm/sec. The logo/firmware download program helps you use logos efficiently and easily.
Features:
- Compact Thermal Receipt Printer
- Fast Printing Speed up to 200 mm/sec
- Two Colour Printing
- (on special thermal paper)
- Multiple interface cards available:
- RS-232C, IEEE Parallel, RS-485, USB, Ethernet & Bluetooth
- Large NV Bitmap Memory
- ESC POS Compatible
- Easy to use:
- Drop in Paper loading
- Eliminates Paper Jams
- Full or Partial Cut
- available in Dark Grey & White
Attachments
Specifications
|
Printing Method |
Thermal Line Dot method |
|
|
Print Speed |
Max. 200 mm/sec (61.7 Lines/sec) |
|
|
Resolution |
SRP370: 180 dpi (7 dot/mm) |
|
|
SRP372: 203 dpi (8 dot/mm) |
||
|
Column Capacity |
Font A: 42 Columns |
|
|
Font B: 56 Columns |
||
|
Character Set |
Alpha Numeric Character: 95 |
|
|
Extended Graphics: 128 X 7 (1 Space Page) |
||
|
International Characters: 32 |
||
|
Character Size |
Font A: |
1.25 x 3 mm (12 x 24 dots) |
|
Font B: |
0.88 x 3 mm (9 X 24 dots) |
|
|
Emulation |
ESC/POS |
|
|
Paper Type |
Mono & Two Colour Thermal Paper |
|
|
Paper Width |
57.5 ± 0.5 mm, 79.5 ± 0.5 mm, 82.5 ± 0.5mm |
|
|
Roll Diameter |
Max. 105 mm |
|
|
Bar-code type |
UPC-A/E, JAN-13/8, ITF, Code 39, Code 128, CODABAR, Code 93 |
|
|
Data Buffer |
4Kb |
|
|
NV Bitmap Memory |
256 Kb |
|
|
Interface |
Serial |
RS-232C |
|
RS-485 |
||
|
Unidirectional Parallel |
IEEE 1284 |
|
|
USB |
|
|
|
Ethernet |
|
|
|
Drawer Kick-out |
2 drawers through 1 RJ12 Connector |
|
|
Power |
24 DCV, 2.3A, External power supply |
|
|
External Dimensions (WxDxH) |
146 x 204 x 160 mm |
|
|
Reliability |
Head |
150Km |
|
Mechanism |
Mono: 70,000,000 Lines |
|
|
Colour: 35,000,000 Lines |
||
|
Auto Cutter |
1.5 million Cuts |
|
|
Safety Standards |
UL, C-UL, FCC Class A, TUV-GS, CE Marking |
|
