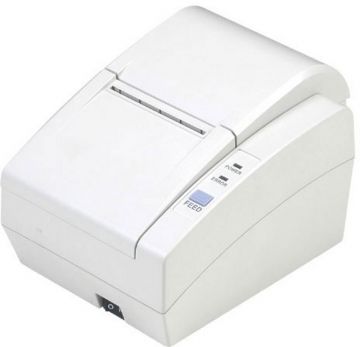

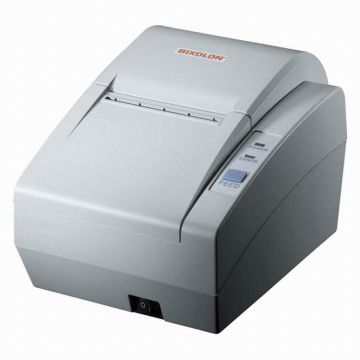

Samsung (Bixolon) - STP-131P/R Thermal Receipt Printer

STP131R / STP131P
[Contact us for a price] Request a quote
Free Shipping order above $500
For Special & Volume Pricing – Call +61 2 8806 0106

Need Help

Choosing a Product
+61 2 8806 0106 Live Chat Email Us
Talk to our technical Expert
price match

Description

**Discontinued, Replacement: SRP-350 Plus III**

The STP-131 is a low cost Thermal Printing offering in the BIXOLON Samsung mini printer line-up. It has both the Parallel and Serial interfaces build in on the same connector. The used interface is selected by changing the interface cable.

Main Features :

  • Compact Thermal Receipt Printer
  • Fast 75 mm/sec Printing
  • ESC POS, CITIZEN, STAR Compatible
  • Auto Paper loading function
  • Full or Partial Cut
  • Both RS-232 & Parallel interface on board, selectable through different Cable
  • One cable comes with the unit
  • NV Bitmap Memory
  • Cost Effective uni

Attachments

STP131-Usermanual (STP131-usermanual.pdf, 1,749 Kb) [Download]

STP131-Brochure (stp131-brochure.pdf, 782 Kb) [Download]

Specifications



Print

Printing Method

Direct Thermal

Printing Speed

75mm/sec (23LPS)

Resolution

180dpi (7dot/mm)

Font

Character Set

Alphanumeric Character : 95 Extended Graphic : 128 × 7 Page International Character :32

Character Size

Font A : 12 × 24 Font B : 9 × 24 Korean: 24 X 24 Chinese: 24 x 24

Character per Line

Font A : 42 Font B : 56 Korean: 21 Chinese: 21

Paper Spec

Paper type

Thermal paper

Paper Width

80mm

Paper Roll Diameter

Max Ø 83.0mm

Paper Supply Method

Auto Paper Loading

Reliability

MCBF

30,000,000 Lines

Auto Cutter

1,000,000 cuts

TPH

100Km

Barcodes

EAN-13, EAN-8, Code 39, Code 93, Code 128, ITF, Coda Bar, UPC-A

Emulation

ESC/POS

Flash Memory

8 Mbit

Driver

Windows95/98/ME/2000/NT/XP/2003 server, VISTA,OPOS

Sensor

Paper Near End Sensor, Paper End Sensor, Cover open sensor

Drawer Port

2 Ports

Interface

RS-232C, IEEE1284

Option

Language

Buyer Language Support

Power Supply (Adapter)

AC 100~240V, DC 24V, 2.5A

Dimensions (W*L*H)

150 × 205 × 132 mm

Operating Temp

0 ~ 45 °C

Auto Cutter

Type

Guillotine
