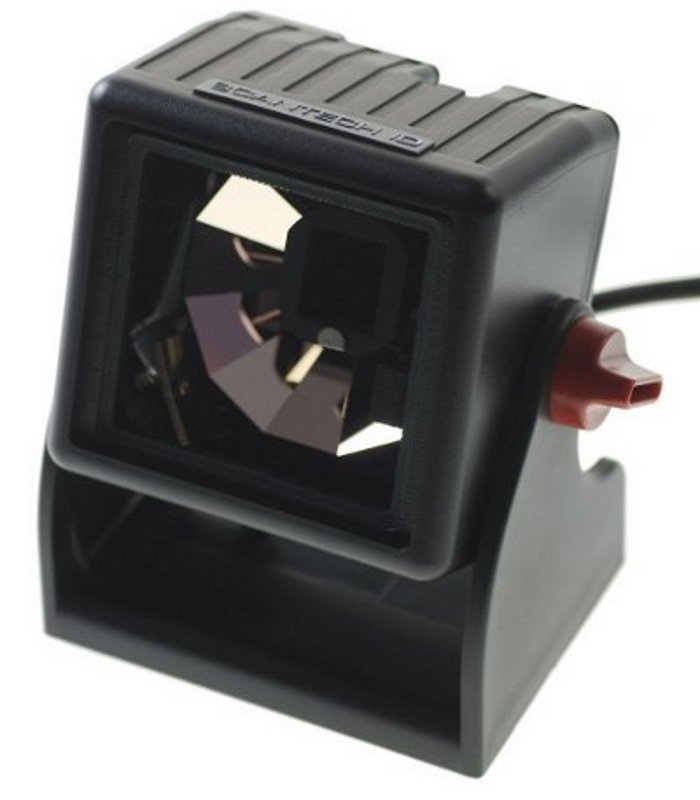

Scantech-ID M9030 Mica USB Stand BLK Omni Directional Desktop Scanner

[Contact us for a price] Request a quote
Free Shipping order above $500
For Special & Volume Pricing – Call +61 2 8806 0106

Need Help

Choosing a Product
+61 2 8806 0106 Live Chat Email Us
Talk to our technical Expert
price match


**Discontinued - Now replaced by the Scantech Libra L-7050**
 The Scantech ID MICA M-9030 is a very compact and high performance omni-directional laser barcode scan engine ideal for built-in and Original Equipment Manufacturer (OEM) applications.
With 24 scan lines in 6 scan directions and 2,000 scans per second, the MICA M-9030 provides an outstanding scan performance and makes it very easy to scan all common type 1D barcodes, including GS1 DataBar, independent of its orientation.
The optimized compact design makes it very easy to integrate the MICA M-9030 in many built-in and OEM applications like kiosks, ATM’s,return vending machines, price verifiers and access control terminals.
The MICA M-9030 has a multiple interfaces, user upgradeable software and auto-sense which saves costs and improves life time. If you are looking for a compact, easy to integrate barcode scan engine with an outstanding scan performance, then the MICA M-9030 is the answer.
Main Features :
  • Most compact omni-directional laser barcode scan engine in its class.
  • Optimized design for built-in and OEM applications.
  • Reading all common 1D barcodes, incl. GS1 DataBar, regardless of its orientation.
  • Scantech ID STAR reconstruction software for reading of fragmented and damaged barcodes.
  • High first scan rate.
  • Auto-Sense function, which saves power and improves life time.
  • Most compact size with longest depth of field
  • Easy integration in all type of built-in and OEM applications
  • Auto-sense function


Scantech-ID M-9030-Brochure (M9030.pdf, 807 Kb) [Download]



46 mm/ 1.81 inch


62 mm/ 2.44 inch


67 mm/ 2.63 inch





DC input to scanner

+5 V DC, 250 mA or +12 V DC,

Power consumption

1.25 Watt @ +5 V DC / 1.68 Watt

Light source

650±10nmnm visible laser diode

Depth of field

Up to 230mm @ UPC/EAN 100%, PCS 90%

Scan pattern

6 direction scan field, 24 lines

Scan rate

2,000 scans per sec

Light level

Up to 4,800 Lux

Barcode types

EAN/UPC/JAN+Add-on,ISBN,Code 128,EAN 128,Code 93,Code 39,Code 32,Codabar,Interleaved 2 of 5,MSI-Plessey,GS1 DataB


RS232, KBW, USB, Powered USB (Optional)

Operating Temp

0°C – 40°C

Storage Temp

20°C – 60°C


20% ~ 95% RH (non – condensing dew)

Laser Safety

IEC 825 –1 (1993) Class I, U.S. 21 CFR1040 Class IIa

Electrical SafetyEN

60950 second edition UL1950, c – UL (according CSA22.2.950)

Flammability Ratio


Radio and TV InterferenceEN

55022 Class B (1994), FCC part 15 Class B (1992)

Radio Frequency ImmunityEN

50082 – 1 (1992)

Electro Static Discharge (ESD)

IEC 801 – 2 (1991)
