Description

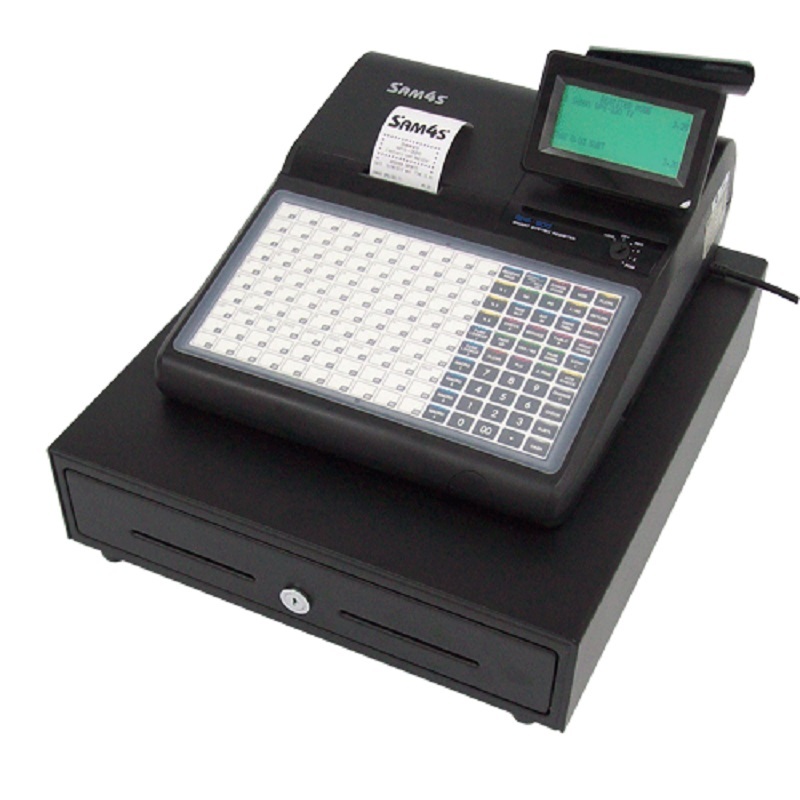

The SPS-320is well suited for the small to medium convenience store, fruit markets, restaurants and various retail operations.It has a large LCD display and real-time network function.
Main Features :
- High featured 1 Station Cash Register
- High Speed (23 LPS) 1 Station Direct Thermal Printer with Auto Cutter.
- Drop in Paper loading
- 8 Line 32 Character LCD Operator Display
- Link up to 16 ECR's via IRC
- Up to 20000 PLU's
- 14 Digit PLU/Barcode Number Capable
- Eat In/Takeaway/Drive Thru Function
- Graphic Logo Print
- Also available with raised keyboard
- Electronic Journal
Attachments
Specifications
|
Printing Method |
1 Station Direct Thermal Type with Auto Cutter |
|
|
Printing Speed (Max.) |
up to 23 LPS |
|
|
Paper Width |
57.5 ± 0.5mm |
|
|
Paper Roll Diameter |
Max Ø 83.0mm |
|
|
Paper Supply Method |
Easy Paper Loading, Drop in and Print |
|
|
Keyboard |
150 Key Flat Keyboard |
|
|
Display |
Operator: |
LCD 8 Lines of 32 Characters |
|
Customer |
10 Digit VFD |
|
|
Memory |
ROM: 16 Mbits Flash ROM |
|
|
RAM: 16 Mbits SRAM |
||
|
Memory Protection |
90 Days |
|
|
Interface |
3 x RS232 |
COM1 : DB9 Serial |
|
COM2 : DB9 Serial |
||
|
COM3 : RJ45 Serial |
||
|
1 x USB |
Virtual COM serial (Optional: can be changed to RJ45 RS232 COM 4) |
|
|
IRC |
Batch mode IRC (up to 100 Meter) |
|
|
Drawer |
4B/8C |
|
|
Memory Configuration ("Max." depends on Memory Sharing choices) |
up to 20000 PLU's |
|
|
Max. 99 Clerks |
||
|
Max. 99 Groups |
||
|
Max. 200 Checks (Accounts) |
||
|
Max. 230 Lines Record Per Account |
||
|
Soft (Restaurant Style) or Hard (Service Station Style) Check (Account) System |
||
|
Max. 5 Price Levels |
||
|
Max. 99 Mix & Match |
||
|
Max. 50000 Electronic Journal |
||
|
OS Functions |
32 Character per Line Logo Description (6 Lines Heading + 6 Lines Footing) |
|
|
18 Character Description |
||
|
14 Digit PLU Number |
||
|
5 Modifier Levels |
||
|
20 Macro keys (with Manager Control Option) |
||
|
10 Tender Keys |
||
|
Charge Posting Accounts |
||
|
Max. 4 Currency Conversion |
||
|
Inventory Item |
||
|
Condiment Item |
||
|
Table Management or Clerk Interrupt |
||
|
Training Mode |
||
|
9 Digit Clerk Password |
||
|
Graphic Logo on the Receipt Heading and Footing |
||
|
Maximum 230 Line Record per Transaction |
||
|
Software Utilities |
Programming Utility Software, ASCII converter for PC comm's Virtual Com Port Driver for Windows (32/64-bit) and Ethernet comms module |
|
|
Weight |
12 Kg |
|
|
External Dimensions (W x D x H) |
400 x 455 x 305 mm |
|
|
EMC/Safety Standards |
CE, FCC, UL, TUV, GS, C-tick |
|
|
Power Supply |
AC 230V± 10% |
|
