Description

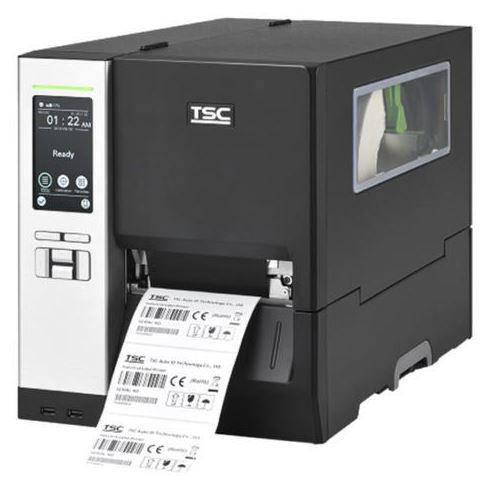

Maximize productivity in high-demand industrial environments with the TSC MH241P Premium 203DPI Thermal Transfer Label Printer. Engineered for performance, this robust printer features a die-cast aluminium frame, 3.5" colour LCD, and fast printing speeds of up to 14 inches per second—ideal for manufacturing, logistics, warehousing, and healthcare applications across Australia.
The MH241P supports both Thermal Transfer and Direct Thermal printing methods, offering maximum flexibility. It includes USB, Serial, and Ethernet connectivity, dual USB Host ports for scanners or keyboards, and scalable 512MB Flash and 256MB SDRAM memory. The built-in microSD slot allows expansion up to 32GB, perfect for storing large label formats and fonts.
TSC’s Sense Care technology enables remote printer monitoring with SOTI Connect and TSC Console for proactive maintenance and reduced downtime. The MH241P supports multiple command languages including TSPL-EZD (compatible with ZPL, EPL, DPL), ensuring seamless integration into existing systems.
Product Features
- 203DPI Resolution – Crisp barcode and label printing for compliance and shipping
- Thermal Transfer & Direct Thermal – Ideal for short-term or long-lasting labels
- Print Speed up to 14 IPS – High-speed throughput to meet demanding production targets
- Robust Industrial Build – Die-cast metal housing with a clear media view window
- 3.5” Colour LCD – User-friendly control with 6-button navigation panel
- Standard Interfaces – USB 2.0, Serial, Internal Ethernet, Dual USB Host ports
- Expandable Memory – 512MB Flash, 256MB SDRAM, plus microSD slot up to 32GB
- Label Compatibility – Handles continuous, black mark, fan-fold, die-cut, and tag labels
- TSC Sense Care & Remote Management – SOTI Connect and TSC Console supported
- Energy Star Certified – Environmentally efficient and cost-effective to run
Product Specifications
Specification | Details |
Model | TSC MH241P-A001-0004 |
Print Resolution | 203 DPI (8 dots/mm) |
Print Method | Thermal Transfer & Direct Thermal |
Max Print Speed | 356 mm/sec (14 ips) |
Max Print Width | 4 inch (104 mm) |
Max Print Length | 25,400 mm (1,000") |
Media Width | 0.7 inch to 4 inch (20 mm – 114 mm) |
Media Types | Die-cut, continuous, black mark (top/bottom), fan-fold, tags, notch |
Ribbon Length | Up to 600m (ink-in or ink-out) |
Connectivity | USB 2.0, Serial (RS-232), Ethernet (10/100 Mbps), Dual USB Host |
Display | 3.5” Colour LCD, 6-button operation |
Memory | 512MB Flash, 256MB SDRAM, microSD slot (up to 32GB) |
Barcode Support | 1D & 2D including QR Code, PDF417, DataMatrix, Aztec, Code128, etc. |
Emulation | TSPL-EZD (ZPL, ZPL II, EPL, DPL compatible) |
Label Roll Capacity | 203.2 mm (8") Outer Diameter |
Sensors | Gap, Black Mark, Ribbon End, Ribbon Encoder, Head Open |
Construction | Die-cast print mechanism and metal cover |
Dimensions (WxDxH) | 276mm x 502mm x 326mm |
Weight | 15.6 kg |
Power Supply | Internal 100-240V, 50/60Hz |
Operating Temperature | 0°C to 40°C |
Compliance | RCM, CE, FCC, UL, RoHS, ENERGY STAR® |
Warranty | 2-Year Warranty |
Features
- 4"
- Thermal Transfer
- Direct Thermal
- USB Host
- USB
- Serial / RS232
- Ethernet
- Grey
- Monochrome
- 14
- Industrial
- 4 inch
