Description

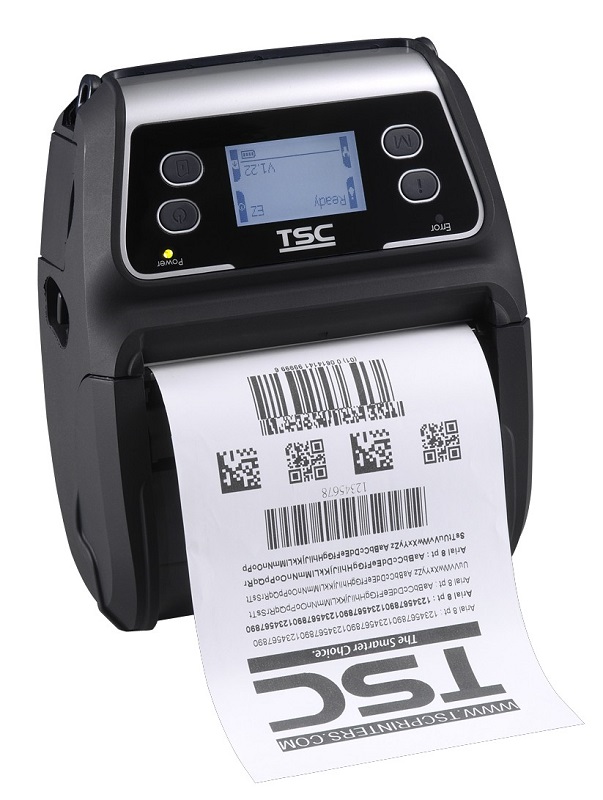

The TSC Alpha-4L is a rugged and reliable 4-inch mobile label and receipt printer designed to handle demanding print applications in retail, logistics, field service, and warehouse environments. With its IP54-rated protective case, drop-resistant design, and long-lasting 5800 mAh battery, this printer delivers industry-best durability and mobility.
Featuring Bluetooth connectivity, fast printing speeds of 4 IPS (102 mm/s), and a flexible range of media support—including linerless labels—the Alpha-4L is ideal for printing labels, receipts, pick tickets, and more on the go. With 16MB Flash, 32MB SDRAM, and support for multiple emulations (TSPL-EZ, EPL, ZPL, CPCL), this printer is as versatile as it is tough.
Built for all-day performance and seamless integration, the TSC Alpha-4L includes USB and optional RS-232/Wi-Fi, mobile SDKs for iOS and Android, and real-time clock support—making it perfect for today's mobile workforces across Australia.
Product Features
- Rugged Portable Design – IP54-rated case with 1.5 m drop protection (1.8 m with case)
- Fast Print Speeds – 4 IPS (102 mm/s) for efficient field labelling
- High Capacity Battery – 5800 mAh Li-ion battery ensures all-day mobile printing
- Bluetooth & USB Connectivity – Reliable wireless performance for mobile use
- Multi-Language Support – Compatible with TSPL-EZ, ZPL, EPL, and CPCL
- Flexible Media Handling – Supports die-cut, linerless, receipt, and black mark media
- Smart Sensors – Includes peel, gap, black mark, and head open sensors
- Real-Time Clock (RTC) – Timestamp critical print jobs
- SDK Support – iOS, Android, and WinCE integration-ready
- Optional Upgrades – LCD display, Wi-Fi, vehicle adapter, and shoulder strap
Product Specifications
Specification | Details |
Model | Alpha-4L (99-052A001-0204) |
Print Method | Direct Thermal |
Print Resolution | 203 DPI |
Max Print Speed | 4 IPS (102 mm/sec) |
Max Print Width | 4 inch (104 mm) |
Max Print Length | 2,286 mm (90”) |
Media Width | 4 inch |
Media Types | Receipt, Die-Cut, Linerless, Continuous, Black Mark, Fanfold |
Media Thickness | 0.055 – 0.165 mm |
Roll Capacity | 67.3 mm (OD) |
Connectivity | USB 2.0, Bluetooth (RS-232 and Wi-Fi optional) |
Memory | 16 MB Flash / 32 MB SDRAM |
Expandable Memory | Up to 4 GB via microSD |
Battery | 5800 mAh Li-ion (Rechargeable) |
Drop Rating | 1.5 m (1.8 m with case) |
Ingress Protection | IP54 (with case) |
Processor | 32-bit RISC CPU |
Barcodes Supported | 1D and 2D (QR Code, PDF417, DataMatrix, Aztec, etc.) |
Programming Languages | TSPL-EZ, EPL, ZPL II, CPCL |
Sensors | Gap, Black Mark, Peel, Head Open |
Real-Time Clock | Yes |
Dimensions (W x H x D) | 160mm x 192mm x 79mm |
Weight (with battery) | 1.1 kg |
Environmental | Operating: -10°C to 50°C; Storage: -40°C to 60°C |
Compliance | FCC, CE, CB, CCC, TUV, RoHS, WEEE |
Warranty | 2-Year |
