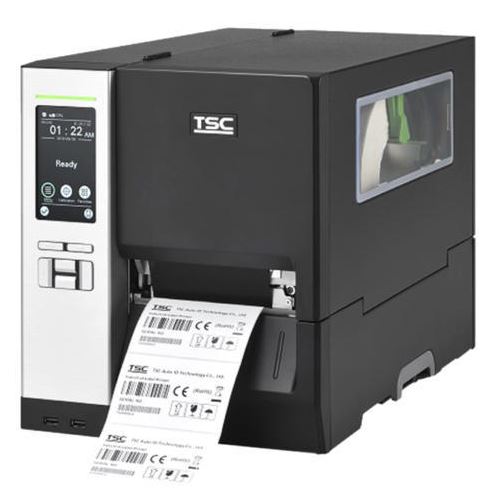

TSC MH241T 4" 203DPI ADVANCED INDUSTRIAL THERMAL TRANSFER LA

4", 2 Years, Thermal Transfer, Direct Thermal , USB Host, USB, Serial / RS232, Ethernet, 203dpi, Black, Monochrome, 14, Industrial, 4 inch
$1,999.00
For Special & Volume Pricing - Call +61 2 9090 4610
MH241T-A001-0004
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

Engineered for high-volume, mission-critical printing, the TSC MH241T is an advanced 203DPI industrial label printer that delivers unmatched performance, precision, and flexibility. With an ultra-fast print speed of 14 inches per second, the MH241T is ideal for demanding warehouse, logistics, manufacturing, and healthcare environments across Australia.

Constructed with a rugged die-cast aluminium frame and a bi-fold metal cover, the MH241T offers durability while allowing users to easily monitor media usage through the large clear window. The 4.3” full-colour LCD touchscreen, paired with a six-button keypad, provides an intuitive user experience with real-time status updates.

Equipped with multiple connectivity options including USB, Serial, and Ethernet, and optional Bluetooth and Wi-Fi, this printer easily integrates into any workflow. Its powerful 32-bit RISC CPU, 512MB Flash, and expandable microSD memory (up to 32GB) ensure high-speed processing and storage for graphics, fonts, and label formats.

Supporting both Thermal Transfer and Direct Thermal printing, and compatible with ZPL, EPL, DPL, and TSPL-EZD printer languages, the MH241T offers maximum compatibility with your existing systems. With SOTI Connect and TSC Console remote management, monitoring and maintaining your printers is easier than ever.


Product Features

  • 203 DPI High-Resolution Printing – Delivers crisp barcodes and text
  • Ultra-Fast Performance – Up to 14 IPS print speed for high-output operations
  • Dual Printing Modes – Supports both Thermal Transfer and Direct Thermal methods
  • Durable Design – Die-cast print mechanism with a metal bi-fold cover
  • 4.3” Colour Touchscreen – With multi-language support and 6-button keypad
  • Expandable Memory – 512MB Flash, 256MB SDRAM, microSD slot up to 32GB
  • Remote Management – Compatible with SOTI Connect & TSC Console
  • Multiple Interfaces – Standard USB, Serial, Ethernet + optional Wi-Fi/Bluetooth
  • Advanced Sensors – Adjustable gap, black mark, head open, ribbon end, and more
  • Flexible Media Handling – Supports continuous, die-cut, fan-fold, tags, and care labels


Product Specifications

Specification

Details

Model

TSC MH241T-A001-0004

Print Method

Thermal Transfer & Direct Thermal

Resolution

203 DPI (8 dots/mm)

Max Print Speed

14 IPS (356 mm/s)

Max Print Width

4 inch (104 mm)

Max Print Length

25,400 mm (1,000")

Enclosure

Die-cast mechanism with bi-fold metal cover

Display

4.3” Colour Touchscreen (480 x 272 px), 6 operation buttons

Media Width

0.79 inch – 4 inch (20 – 114 mm)

Media Roll Diameter

Up to 203.2 mm (8")

Media Thickness

0.06 – 0.28 mm (2.36 – 11 mil)

Media Types

Continuous, Die-Cut, Black Mark, Fanfold, Perforated, Tags

Ribbon Length

600 m (1" core, ink in or out)

Ribbon Width

1 inch – 4.5 inch (25.4 – 114.3 mm)

Processor

32-bit RISC CPU

Memory

512MB Flash, 256MB SDRAM, microSD slot (up to 32GB)

Interfaces (Standard)

USB 2.0, RS-232 Serial, Ethernet 10/100 Mbps, USB Host (x2)

Optional Interfaces

GPIO + Parallel, Bluetooth 5.0 MFi, Wi-Fi with BT 4.2 Combo

Printer Language

TSPL-EZD (ZPL, EPL, DPL compatible)

Sensors

Gap, Black Mark, Head Open, Ribbon End, Media Near End, etc.

Barcode Support

1D & 2D barcodes including QR Code, DataMatrix, PDF417, Aztec

Power Supply

100–240V AC, 50/60Hz, 243W Output

Dimensions (WxHxD)

276mm x 326mm x 502mm

Weight

15.7 kg

Operating Temp

0–40°C, Humidity: 25–85% non-condensing

Storage Temp

-40–60°C, Humidity: 10–90% non-condensing

Certifications

RCM, CE, UL, FCC, ENERGY STAR®, RoHS, WEEE, and more

Warranty

2 Years

Features

Print Size:
  • 4"
Warranty:
2 Years
Print Method:
  • Thermal Transfer
  • Direct Thermal
Interface:
  • USB Host
  • USB
  • Serial / RS232
  • Ethernet
Color:
  • Black
Type:
  • Monochrome
Print Speed :
  • 14
Printer Type / Suitable For:
  • Industrial
Print Width:
  • 4 inch

Attachments

Brochure (mh241-mh261_en-emea-23122020.pdf, 2,046 Kb) [Download]
