TSC TC200 4" DT+TT Serial+USB+Parallel+Ethernet. 203 DPI with RTC and Cutter Label Printer

USB, 1.5 inch, Cutter, Windows, 4", 2 Years, Thermal Transfer, Direct Thermal , USB, Parallel, Ethernet, Serial, 203 dpi , Black, Monochrome, 6, Desktop, 4 inch, TSC
$1,099.00
For Special & Volume Pricing - Call +61 2 9090 4610
99-059A003-6024
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

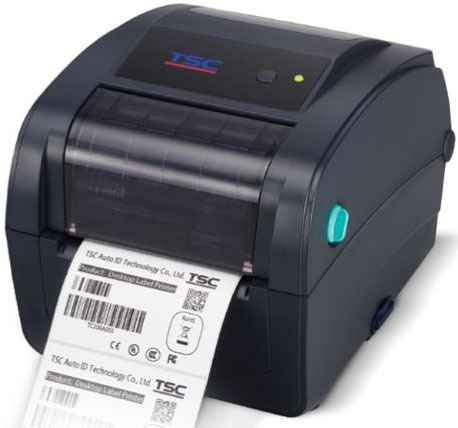

Built for speed, durability, and versatility, the TSC TC200 4 Inch Thermal Transfer & Direct Thermal Label Printer delivers exceptional performance in a compact footprint. Equipped with Real-Time Clock (RTC) and integrated cutter, this robust printer is ideal for high-volume label printing in retail, logistics, manufacturing, and healthcare environments across Australia.

Designed with a durable double-walled clamshell housing, the TC200 ensures reliability in demanding workplaces. Supporting multiple connectivity interfaces including USB, Serial, Parallel, and Ethernet, the printer allows seamless integration with legacy and modern systems alike.

Whether you need to print compliance labels, barcodes, shipping labels, or asset tags, the TC200 combines print speeds of 6 inches per second with high precision 203DPI resolution. It's powered by TSPL-EZ firmware, which is compatible with ZPL, EPL, and more—making transition from older models easy.


Product Features

  • Supports both Thermal Transfer and Direct Thermal printing
  • Built-in Real-Time Clock (RTC) for time-sensitive label applications
  • Integrated guillotine cutter for clean label separation
  • Up to 6 inches per second print speed for fast output
  • High-resolution 203 DPI printing for clear, crisp labels
  • Multiple connectivity: USB, Serial, Parallel, and Ethernet
  • Rugged double-walled clamshell design for industrial durability
  • Compatible with TSPL-EZ firmware (ZPL, EPL, ZPL II)
  • Expandable memory with SD card slot up to 4GB
  • ENERGY STAR certified and compliant with RoHS & WEEE directives


Product Specifications

Specification

Details

Model

TSC TC200

Part Number

99-059A003-6024

Print Method

Thermal Transfer / Direct Thermal

Print Resolution

203 DPI (8 dots/mm)

Max Print Speed

6 IPS (152 mm/sec)

Max Print Width

4 inch (108 mm)

Max Print Length

2,286 mm (90 inches)

Memory

4MB Flash, 8MB SDRAM, SD slot (expandable to 4GB)

Interfaces

USB 2.0, Serial RS-232, Centronics Parallel, Ethernet

Included Options

Real-Time Clock (RTC), Cutter

Media Width

0.7 inch to 4 inch (20 mm to 112 mm)

Media Thickness

0.06 ~ 0.19 mm

Media Types

Continuous, Die-cut, Black Mark, Fanfold, Notch

Media Core Diameter

25.4 mm to 38.1 mm (1 inch to 1.5 inch)

Sensors

Gap, Black Mark, Ribbon End, Head Open

Enclosure

Double-walled plastic

Dimensions (W x H x D)

203mm x 191mm x 259mm

Weight

Approx. 3.5 kg

Barcodes Supported

1D & 2D: Code 128, EAN-13, QR Code, PDF417, Data Matrix, etc.

Operating Temperature

5°C to 40°C

Warranty

2 Years


Features

Cable:
  • USB
Core Size:
1.5 inch
Cutter Option:
  • Cutter
OS Compatability:
  • Windows
Print Size:
  • 4"
Warranty:
2 Years
Print Method:
  • Thermal Transfer
  • Direct Thermal
Interface:
  • USB
  • Parallel
  • Ethernet
  • Serial
Color:
  • Black
Type:
  • Monochrome
Print Speed :
  • 6
Printer Type / Suitable For:
  • Desktop
Print Width:
  • 4 inch
Manufacturer
:
TSC

Attachments

Brochure (tsc-200.pdf, 830 Kb) [Download]
