TSC TC210 DT+TT ETH/USB/SER/PAR WITH LCD LABEL PRINTER

USB, 1.5 inch, No Auto-Cutter, Windows, 4", 2 Years, Thermal Transfer, Direct Thermal , USB, Parallel, Ethernet, Serial, 203dpi, Black, Monochrome, 6, Desktop, 4 inch, TSC
$1,059.00
For Special & Volume Pricing - Call +61 2 9090 4610
99-059A001-0004
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

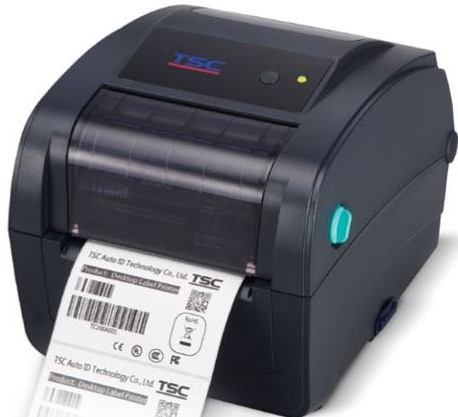

Engineered for reliability and performance, the TSC TC210 desktop label printer is a powerful and compact solution for businesses that demand consistent, high-quality labelling. Featuring dual print methods (thermal transfer and direct thermal), 203 DPI resolution, and an intuitive 2.3” colour LCD display, the TC210 is ideal for a wide range of applications including shipping, retail, asset tracking, and healthcare.

With its durable double-walled clamshell design, easy media and ribbon loading, and versatile connectivity – including USB, Ethernet, Serial, and Parallel interfaces – the TC210 delivers industry-leading value in a space-saving footprint. The built-in SD card slot allows memory expansion up to 32GB, while TSPL-EZ firmware ensures seamless integration into existing systems with support for ZPL and EPL.

Designed for Australian businesses that need fast, reliable and flexible desktop labelling.


Product Features

  • Dual printing modes: Thermal Transfer & Direct Thermal
  • High-speed printing at up to 6 IPS (152 mm/sec)
  • Compact design with double-walled clamshell housing
  • 2.3” colour LCD for intuitive operation and status monitoring
  • 128MB Flash & 64MB SDRAM with SD card expansion up to 32GB
  • Multiple connectivity options: USB, Ethernet, Serial, Parallel
  • Supports wide range of media and ribbons (110mm wide)
  • Advanced TSPL-EZ firmware – compatible with ZPL, ZPL II, EPL
  • ENERGY STAR qualified for energy efficiency
  • Backed by 2-Year Warranty


Product Specifications

Specification

Details

Model

TSC TC210 (99-059A001-0004)

Print Resolution

203 DPI (8 dots/mm)

Print Method

Thermal Transfer & Direct Thermal

Max Print Width

4 inch (108 mm )

Max Print Speed

6 IPS (152 mm/sec )

Max Print Length

25,400 mm (1,000")

Media Width

4 inch

Media Roll Capacity

5 inch (127 mm)

Ribbon Support

110 m (0.5” core), width 40 – 110 mm

Memory

128MB Flash, 64MB SDRAM, SD card (up to 32GB)

Display

2.3” Colour TFT LCD

Connectivity

USB 2.0, Serial, Ethernet, Parallel, USB Host

Media Sensors

Gap, Black Mark, Ribbon End, Head Open

Supported Barcodes

1D & 2D including QR, PDF417, Aztec, Code 128, EAN, UPC

Label Types

Continuous, Die-cut, Fanfold, Black Mark, Notch

Power Supply

External 100-240V AC, 24V DC output

Dimensions

203mm x 191mm x 259mm

Weight

Approx. 2.5 kg

Operating Temperature

5°C to 40°C

Warranty

2 Years Warranty

Features

Cable:
  • USB
Core Size:
1.5 inch
Cutter Option:
  • No Auto-Cutter
OS Compatability:
  • Windows
Print Size:
  • 4"
Warranty:
2 Years
Print Method:
  • Thermal Transfer
  • Direct Thermal
Interface:
  • USB
  • Parallel
  • Ethernet
  • Serial
Color:
  • Black
Type:
  • Monochrome
Print Speed :
  • 6
Printer Type / Suitable For:
  • Desktop
Print Width:
  • 4 inch
Manufacturer
:
TSC

Attachments

Brochure (TSC-TTP-244-Pro.jpg, 42 Kb) [Download]
