Description

**Discontinued - Replaced by To TTP-245c**

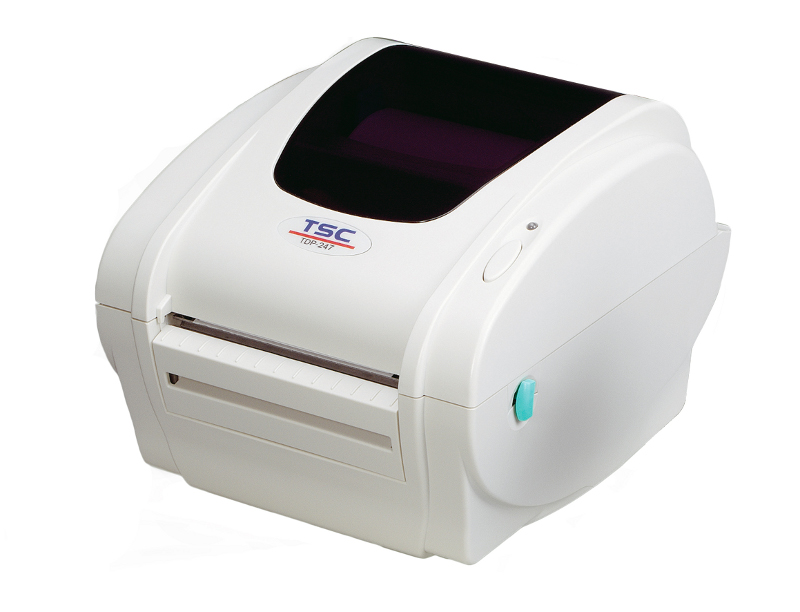

 The TDP-247 series features two high speed models – the TDP-247 ideally suited for product marking, shipping, retail and other labeling applications. The TDP-247 can print four-inch-wide 203 dpi labels at speeds up to 7 inches per second. Other options include an internal Ethernet interface for easy network integration, label cutters, and a keyboard for printing labels in stand-alone or down-time situations. the TDP-247 series printers are ideally suited for a variety of applications, fitting easily into cramped work spaces that are often too small for larger printers. Both models feature a user-friendly clamshell design that allows users to simply open the cover and drop labels into a center-biased storage bay.

Key Features
  • High quality double-walled clamshell design
  • 203 dpi and 300 dpi resolution models
  • Direct thermal print technology
  • Up to 177.8 mm (7") per second print speed
  • Drop-in media loading
  • Label capacity up to 214 mm (8.4") OD
  • SD Flash memory expansion up to 4 GB
  • Head-up sensor
  • USB 2.0, parallel and serial connectivity
  • Optional internal Ethernet interface
  • Optional cutter, standalone keyboard and peel-and-present assembly
  • With 24 Months Manufacturer Warranty

Attachments

TSC-TDP-247-Brochure (TDP-247.pdf, 1,305 Kb) [Download]

Specifications

Resolution :

• 8 dots/mm (203 DPI)

Memory :



• 4 MB Flash memory

• 8 MB SDRAM

• SD card reader for Flash memory expansion, up to 4 GB

Fonts/Graphics :



• Standard fonts: 5 bitmapped, expandable 8x

• Soft font storage in Flash memory

• Line and box drawing

• PCX graphic storage

Interface :



USB 2.0

RS-232

Centronics

Internal Ethernet, 10/100 Mbps (factory option)

Bluethooth (user option)

External 802.11 b/g/n wireless (user option)

Power :



• External universal switching power supply

• Input: AC 100-240V, 2.5A, 50-60Hz

• Output: DC 24V, 3.75A, 90W

Sensors :



• Transmissive gap sensor

• Black mark reflective sensor (position adjustable)

• Head open sensor

Accessories :



• Windows labeling software CD disk

• Quick start guide

• USB cable

• Power cord

• External universal switching power supply

• Label spindle, fixing tab x 2, 1.5“ core adapter x 2

Factory options :



• Internal Ethernet interface (10/100 Mbps)

• Real time clock
