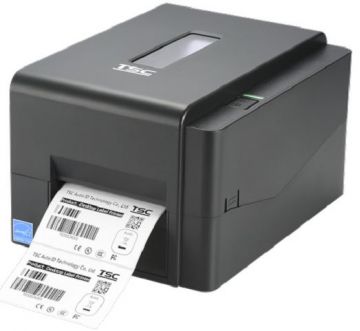

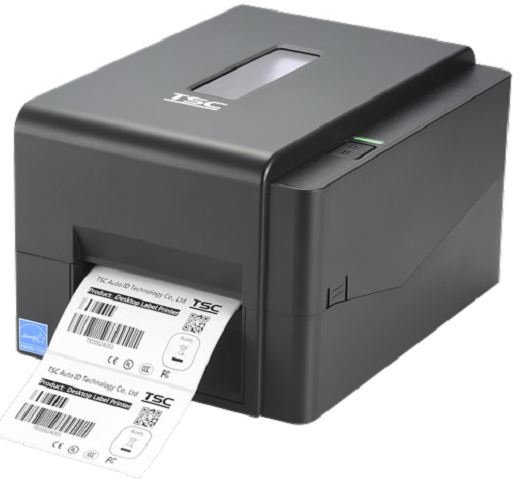

TSC TE310 Desktop TT/DT USB/RS-232/ETH Label Printer

1 inch, No Auto-Cutter, Windows, 4", 2 Years, Thermal Transfer, Direct Thermal , USB Host, USB, Serial / RS232, Ethernet, Bluetooth, 300 dpi, Black, Monochrome, 6, Desktop, 4 inch, TSC
$849.00
For Special & Volume Pricing - Call +61 2 9090 4610
99-065A904-00LF00
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

The TSC TE310 is a compact and powerful 300DPI desktop label printer that combines high-resolution thermal transfer and direct thermal printing in one versatile unit. Ideal for applications in retail, logistics, healthcare, and manufacturing, it delivers exceptional print quality and reliability with the added benefit of USB, RS-232 Serial, and Ethernet connectivity.

With a robust ABS housing and fast 5 IPS print speed, the TE310 is engineered to handle demanding labelling tasks while maintaining a small desktop footprint. It supports both 300-metre and 110-metre ribbons, giving users the flexibility to choose media and ribbon sizes based on operational needs. Whether you're printing shipping labels, patient IDs, product tags, or compliance barcodes, the TE310 offers precise and cost-effective label printing you can rely on.


Product Features

  • High-resolution 300 DPI printing for crisp labels and fine barcodes
  • Supports both Thermal Transfer and Direct Thermal printing
  • Fast print speed 5 inches per second (127 mm/sec)
  • Compact desktop design with durable ABS plastic construction
  • Connectivity options: USB 2.0, Serial (RS-232), and Ethernet
  • 300m ribbon support for reduced downtime and cost-efficiency
  • Adjustable media sensor supports various label types and sizes
  • Large 128MB Flash and 64MB SDRAM for complex label formats
  • Emulates EPL, ZPL, ZPL II, and DPL for seamless integration
  • ENERGY STAR qualified for energy-efficient operation


Product Specifications

Specification

Details

Print Method

 Thermal Transfer & Direct Thermal

Print Resolution

300 DPI (12 dots/mm)

Max. Print Speed

5 IPS (127 mm/sec)

Max. Print Width

4inch (105.7 mm)

Max. Print Length

11,430 mm (450")

Media Width

4 inch

Media Thickness

0.06 mm0.19 mm

Ribbon Support

300m (1inch core) or 110m (0.5 inch core)

Memory

128MB Flash, 64MB SDRAM

Interfaces

USB 2.0, RS-232 Serial, Ethernet, USB Host

Dimensions (WxHxD)

204mm x 164mm x 280mm

Weight

2.5 kg

Construction

ABS plastic

Power Supply

External, 100–240V AC, 24V DC Output

Operating Temperature

5°C – 40°C

Storage Temperature

-40°C – 60°C

Warranty

2 Years (Printer), 12 Months (Print Head)


Features

Core Size:
1 inch
Cutter Option:
  • No Auto-Cutter
OS Compatability:
  • Windows
Print Size:
  • 4"
Warranty:
2 Years
Print Method:
  • Thermal Transfer
  • Direct Thermal
Interface:
  • USB Host
  • USB
  • Serial / RS232
  • Ethernet
  • Bluetooth
Color:
  • Black
Type:
  • Monochrome
Print Speed :
  • 6
Printer Type / Suitable For:
  • Desktop
Print Width:
  • 4 inch
Manufacturer
:
TSC

Attachments

Brochure (TE200_ENG_datasheet_A4.pdf, 579 Kb) [Download]
