TSC TTP-384M 8" 300 DPI

Serial, USB, Ethernet, 3 inch, 8", 2 Years, Thermal Transfer, Direct Thermal , USB, Serial / RS232, Ethernet, 300 dpi, Grey, Monochrome, 4, Industrial, 8 inch, TSC
$4,419.00
For Special & Volume Pricing - Call +61 2 9090 4610
99-035A001-00LF
+

Minimum quantity for "TSC TTP-384M 8" 300 DPI" is 1.

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

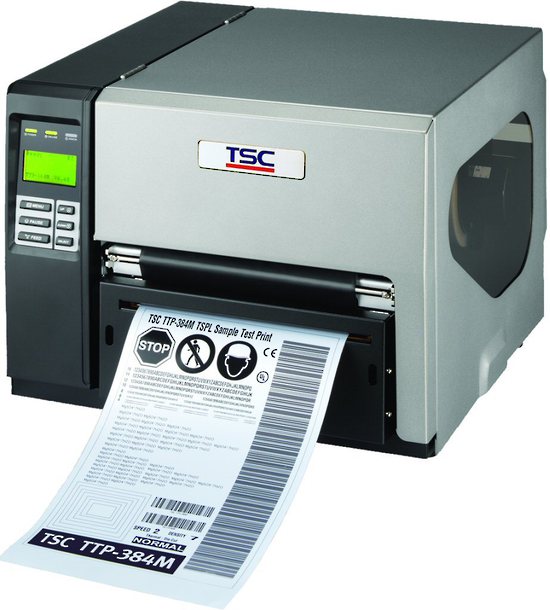

The TSC TTP-384MT 300DPI Industrial Label Printer is the ideal solution for high-resolution, wide-format labelling in demanding industrial environments. Built with a rugged die-cast aluminium frame and equipped with a colour touch LCD display, this 8-inch wide printer delivers exceptional performance at a competitive price.

Designed for large-format applications such as compliance labelling, drum labelling, warning signs, pallet tags, and custom signage, the TTP-384MT supports a maximum print width of 219.5 mm (8 inch) and a print resolution of 300 DPI for crisp, professional-grade labels.

With a robust interface suite—including USB, Serial, Ethernet, Parallel, and USB Host—plus optional Bluetooth and Wi-Fi modules, the TTP-384MT integrates effortlessly into existing operations. Its 600-metre ribbon capacity, expandable memory, and multiple media compatibility make it a reliable workhorse for high-volume labelling.


Product Features

  • High-Resolution 300 DPI Printing – Sharp text, graphics, and barcodes for compliance and branding
  • Wide Format Support – Prints labels up to 8 inch wide on media up to 9.5 inch
  • Durable Industrial Design – Die-cast chassis and sheet metal housing with clear media view window
  • Large Ribbon Capacity – 600m ribbon support reduces downtime and boosts productivity
  • Colour LCD Display – 4.3” resistive touch screen for intuitive control and monitoring
  • Versatile Connectivity – Standard USB, Serial, Parallel, Ethernet, USB Host; Optional Bluetooth/Wi-Fi
  • Advanced Memory Options – 512MB Flash, 256MB SDRAM and expandable SD Flash up to 32GB
  • Flexible Media Handling – Supports a wide variety of media types including die-cut, black mark, fan-fold, and continuous
  • Extensive Barcode Support – 1D and 2D barcode symbologies including QR, DataMatrix, PDF417, Maxicode, and more
  • TSC Printer Language – Compatible with TSPL-EZ™ (ZPL, ZPL II, EPL emulation)


Product Specifications

Specification

Details

Model

TTP-384MT

Part Number

99-035A001-00LF

Print Method

Thermal Transfer & Direct Thermal

Print Resolution

300 DPI (12 dots/mm)

Max Print Width

8 inch (219.5 mm)

Max Print Length

5,080 mm (200”)

Print Speed

Up to 4 IPS (102 mm/sec)

Media Width

4 inch to 9.5 inch (101.6 mm to 241.3 mm)

Media Roll OD

Up to 208.3 mm (8.2”)

Media Thickness

0.06 – 0.254 mm (2.36 – 10 mil)

Ribbon Length

600 metres

Ribbon Width

4 inch – 10 inch (110 mm – 254 mm)

Connectivity

USB 2.0, RS-232, Parallel, Ethernet (10/100), USB Host

Optional Interfaces

Bluetooth, 802.11 b/g/n Wi-Fi, GPIO

Memory

512 MB Flash, 256 MB SDRAM, SD Card up to 32 GB

Display

4.3” colour LCD, resistive touch screen

Supported Languages

TSPL-EZ™ (ZPL, ZPL II, EPL)

Barcode Support

Linear & 2D (QR Code, PDF417, DataMatrix, Maxicode, etc.)

Dimensions (W x H x D)

440mm x 336mm x 514mm

Weight

23.7 kg

Warranty

2 Years

Features

Cable:
  • Serial
  • USB
  • Ethernet
Core Size:
3 inch
Print Size:
  • 8"
Warranty:
2 Years
Print Method:
  • Thermal Transfer
  • Direct Thermal
Interface:
  • USB
  • Serial / RS232
  • Ethernet
Color:
  • Grey
Type:
  • Monochrome
Print Speed :
  • 4
Printer Type / Suitable For:
  • Industrial
Print Width:
  • 8 inch
Manufacturer
:
TSC

Attachments

Brochure (TTP-384M_ENG_datasheet_20110627.pdf, 1,107 Kb) [Download]
