Description

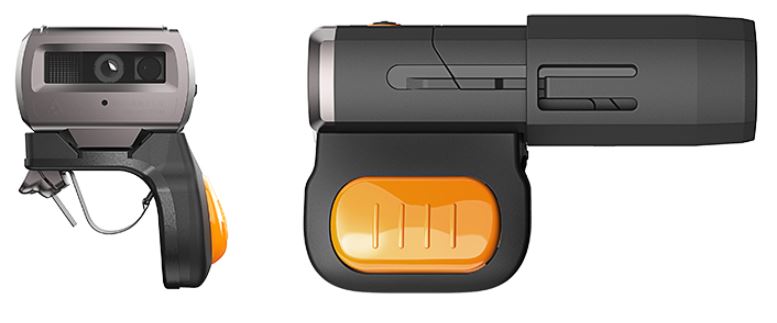

The SR5600 Wearable 2D Scanning Ring is a compact, high-performance barcode scanner designed for hands-free operation in fast-paced industrial and logistics environments. Worn comfortably on the finger or over a glove, it combines speed, convenience, and ruggedness for maximum productivity.
Powered by a 1.2 GHz processor and a megapixel scanning engine with laser cross aiming, the SR5600 delivers professional-grade decoding performance for both 1D and 2D barcodes—even in demanding conditions. It supports dual-mode Bluetooth (Classic + BLE) and NFC tap-to-pair for quick, hassle-free connectivity with a wide range of mobile devices and systems.
With a removable 800 mAh battery, it supports up to 4 hours of continuous use and over 24 hours standby. Rated IP65, the SR5600 is protected from dust, moisture, and impact, making it ideal for warehouse, logistics, retail, and manufacturing environments.
Available accessories include multi-slot charging cradles, battery docks, and glove-compatible mounts for scalable deployment.
Product Features
-
Megapixel Scanning Engine – Fast and accurate decoding of 1D & 2D barcodes
-
Laser Aiming Crosshair – Ensures precision scanning in busy environments
-
Dual-mode Bluetooth – Supports Classic and BLE for flexible wireless pairing
-
NFC Touch Pairing – Quick connection with compatible devices (ISO15693)
-
Wearable Design – Attaches via ring or glove bracket for hands-free use
-
Rugged Build – IP65 sealed, ESD-resistant, and shock-tolerant
-
Removable 800mAh Battery – 4 hours of operation, 24+ hours standby
Product Specifications
Scanning Technology | SE2030, 2D imager with cross laser aiming & white fill-in light |
Supported Codes | 1D & 2D barcodes |
Decoding Range | 5 to 40 cm (varies by application) |
Decoding Speed | < 100 ms |
Processor | 1.2 GHz high-performance processor |
Wireless Communication | Bluetooth Dual-Mode |
Mounting Options | Finger bracket, glove mount, hand strap |
Dimensions | 62.9 x 31 x 18.2 mm |
Interface Connector | 4-pin Pogo pin |
Optional Accessories | Four-slot charger, battery cradle, glove mount, ring charger |
