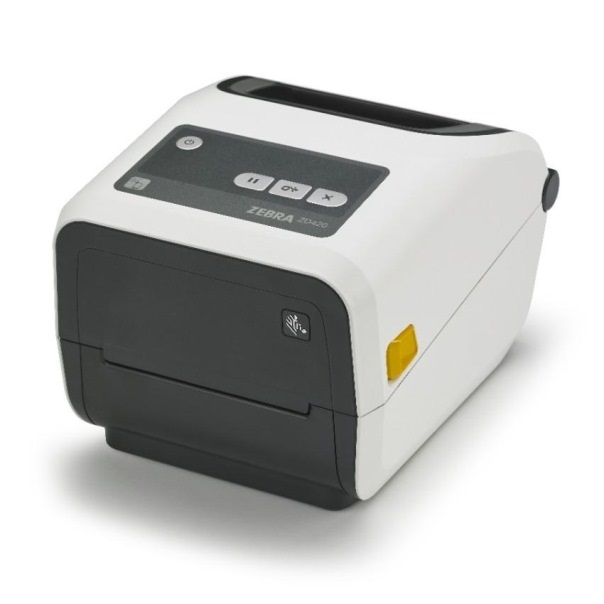

Zebra D/TOP ZD420-HC 300DPI T/T USB MOD/S Label Printer

1 inch, No Auto-Cutter, iOS, Android, Windows, 4", 2 Years, Thermal Transfer, USB Host, USB, Zebra
$1,039.00
For Special & Volume Pricing - Call +61 2 9090 4610
ZD42H43-T0P000EZ
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

Designed specifically for healthcare environments, the Zebra ZD420-HC 300DPI Label Printer delivers the performance, reliability and sanitation-focused features that medical professionals demand. With disinfectant-ready plastics, IEC 60601-1 compliant power supply, and a sealed-button interface, this advanced 4-inch printer ensures clean, safe operation in hospitals, labs, and clinics.

Part of Zebra's next-generation desktop series, the ZD420-HC builds on the legacy of the GK Series with greater flexibility, a smarter interface, faster deployment, and stronger remote management capabilities via Link-OS and Print DNA. Print crisp 300DPI labels and wristbands with ease using USB connectivity or upgrade modular slots for additional interfaces. Compatible with ZPL, EPL, and more, it’s built to seamlessly integrate into your existing setup.

Whether you’re printing patient ID wristbands, pharmacy labels, or specimen tags, the ZD420-HC ensures smooth performance, long-term reliability, and peace of mind through Zebra’s proven healthcare design.


Product Features

  • Healthcare-specific design with disinfectant-ready plastics and medical-grade power supply
  • 300 DPI high-resolution printing for clear, scannable labels and wristbands
  • Thermal Transfer and Direct Thermal print methods for versatile media compatibility
  • USB 2.0 + USB Host standard; modular slot supports future interface upgrades
  • ZPL II & EPL programming for seamless system integration
  • 5 icon LED display with 3-button interface for simplified user operation
  • OpenACCESS clamshell design for fast media and ribbon loading
  • Supports Link-OS and Zebra Print DNA for cloud-based remote printer management
  • Optional media handling add-ons: cutter, peeler, dispenser
  • Backed by a 2-year limited warranty


Product Specifications

Specification

Details

Model

ZD420-HC

Print Method

Thermal Transfer, Direct Thermal

Resolution

300 DPI (12 dots/mm)

Max Print Width

4 inch (104 mm)

Max Print Speed

4 IPS (102 mm/sec)

Connectivity

USB 2.0, USB Host

Modular Slot

Yes (for optional Serial, Ethernet, WLAN)

OS Compatibility

Windows, iOS, Android

Memory

512 MB Flash, 256 MB SDRAM

Media Types

Die-cut, Continuous, Wristband, Black Mark, Fanfold

Max Media Width

4 inch (118 mm)

Max Roll Diameter

5 inch (127 mm)

Media Core Diameter

0.5-inch, 1 inch, 3 inch (via adapters)

Display

5 Status Icons + 3 Buttons

Form Factor

Desktop

Weight

2.3 kg

Dimensions (W x H x D)

202mm x 177mm x 254mm

Compliance

ENERGY STAR, RoHS, CE, FCC, IEC 60601-1

Warranty

2-Year Limited Warranty

Features

Core Size:
1 inch
Cutter Option:
  • No Auto-Cutter
OS Compatability:
  • Android
  • iOS
  • Windows
Print Size:
  • 4"
Warranty:
2 Years
Print Method:
  • Thermal Transfer
Interface:
  • USB Host
  • USB
Manufacturer
:
Zebra
