ZEBRA D/TOP ZD421 300DPI T/T BT/USB/WIFI MOD/S

1 inch, Windows, iOS, Android, 4", 2 Years, Thermal Transfer, USB Host, USB, Bluetooth, WIFI, 300 dpi, Dark Grey, Monochrome, 4, Desktop, 4 inch, Zebra
$1,174.00
For Special & Volume Pricing - Call +61 2 9090 4610
ZD4A043-30PW02EZ
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

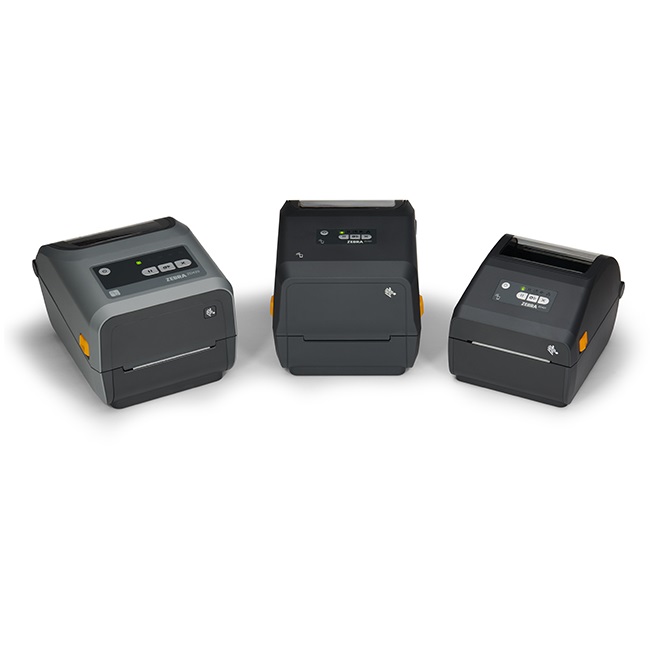

The next evolution in premium desktop label printing with the Zebra ZD421 300DPI Thermal Transfer Printer (ZD4A043-30PW02EZ). Designed for Australian businesses that demand flexibility, reliability, and security, the ZD421 offers superior performance in a compact desktop form.

Built on the legacy of the Zebra GK Series, the ZD421 features a high-resolution 300DPI output, advanced connectivity with USB, USB Host, Wi-Fi (802.11ac), Bluetooth 4.0, and a modular connectivity slot for future expandability. Its dual-wall frame construction, real-time clock (RTC), and five-icon user interface ensure operational efficiency in high-demand environments.

This model supports both Thermal Transfer and Direct Thermal printing, making it a versatile solution for applications across healthcare, retail, warehousing, transport, and logistics. With Zebra’s Print DNA suite and PrintSecure features, it ensures seamless setup, remote management, and robust cybersecurity.

Effortless media handling, easy loading with OpenACCESS, and compatibility with various label types including fanfold, die-cut, wristbands, and black mark media — the ZD421 is a true all-rounder built for future-forward productivity.


Product Features

  • 300DPI High-Resolution Printing – Ideal for fine-detail barcodes and labelling applications.
  • Dual Print Technology – Supports both Thermal Transfer and Direct Thermal.
  • Wireless Ready – Built-in Wi-Fi (802.11ac), Bluetooth 4.0, USB, and USB Host.
  • Modular Connectivity Slot – Field-upgradeable for Ethernet, Serial, and NFC options.
  • Print DNA Software Suite – Includes setup wizards, remote management, and PrintSecure for data protection.
  • Compact Yet Durable – Dual-wall frame construction for enhanced durability.
  • User-Friendly Interface – Five LED status icons and 3-button controls for ease of use.
  • OpenACCESS Clamshell Design – Simplifies media loading and reduces downtime.
  • Media Versatility – Handles continuous, die-cut, gap, black mark, fanfold, wristband, and tag stock.
  • ENERGY STAR Certified – Environmentally responsible with reduced power consumption.


Product Specifications

Specification

Details

Model

Zebra ZD421 (ZD4A043-30PW02EZ)

Print Method

Thermal Transfer

Print Resolution

300 DPI

Max Print Width

4 inch (108 mm)

Max Label Length

991 mm

Media Types

Labels, Receipts, Tags, Black Mark, Continuous, Fanfold, Wristbands

Media Thickness

Up to 4826 µm

Max Roll Diameter

5 inch (127 mm)

Interfaces

USB, USB Host, Wi-Fi (802.11ac), Bluetooth 4.0

Modular Options

Ethernet, Serial (RS-232), NFC

Mobile Device Support

Android, iOS

Print Languages

ZPL, ZPL II, EPL, EPL2, ZBI, XML, PDF Direct

Memory

256MB RAM

User Interface

5 Status Icons, 3 Buttons

Construction

Dual-wall frame

Power Supply

AC 120/230V (AUS, EU, UK, JP cords included)

Dimensions (WxDxH)

202mm x 267mm x 189mm

Weight

2.05 kg

Barcode Symbologies

QR Code, UPC, Code 128/39/93/11, Data Matrix, EAN-8/13, PDF417, Aztec, MaxiCode

Environmental Compliance

RoHS, ENERGY STAR

Warranty

2 Years Return to Base

Features

Core Size:
1 inch
OS Compatability:
  • Android
  • iOS
  • Windows
Print Size:
  • 4"
Warranty:
2 Years
Print Method:
  • Thermal Transfer
Interface:
  • USB Host
  • USB
  • Bluetooth
  • WIFI
Color:
  • Dark Grey
Type:
  • Monochrome
Print Speed :
  • 4
Printer Type / Suitable For:
  • Desktop
Print Width:
  • 4 inch
Manufacturer
:
Zebra

Attachments

Brochure (Zebra-ZD421-Spec-Sheet.pdf, 216 Kb) [Download]
