Description

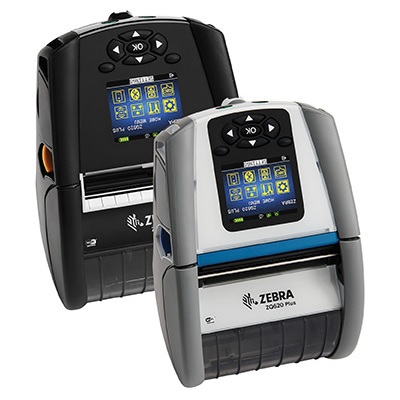

The Zebra ZQ630 Plus Mobile Label Printer delivers unmatched productivity, durability, and connectivity for businesses on the move. Designed for manufacturing, warehousing, retail, healthcare, and logistics operations, this rugged 4-inch (112mm) mobile printer builds on Zebra’s renowned QLn platform, offering Direct Thermal printing, dual wireless connectivity (Bluetooth 4.2 and Wi-Fi 802.11ac), and an ultra-high-capacity 6800 mAh PowerPrecision+ battery for full-shift power.
With its large colour display, intuitive interface, and support for linerless and linered labels, the ZQ630 Plus ensures fast, efficient, and reliable mobile printing. Advanced security, powerful management tools, and Zebra’s Print DNA software suite make it easy to deploy, integrate, and control across your fleet. Rugged enough to handle drops and rated IP54 dust and water resistant, this premium printer is built for tough environments.
Product Features
- Premium 4-inch (112mm) mobile label and receipt printer
- Direct Thermal printing – no ink or toner required
- Dual wireless connectivity: Wi-Fi 802.11ac + Bluetooth 4.2
- Large, colour display with easy navigation and custom alerts
- Rugged design – withstands 6 ft. (1.83 m) drops, IP54-rated for dust and water resistance
- High-capacity 6800 mAh battery with PowerPrecision+ technology for full-shift use
- Instant wake-up feature for maximum efficiency
- Supports linerless and linered labels, tags, and receipts
- Print DNA & Link-OS® for advanced management, integration, and security
- Multiple programming language support: CPCL, EPL, ZPL, and XML
- Compact and portable with included belt clip for easy mobility
- Certified for APAC markets including Australia and New Zealand
Product Specifications
Specification | Details |
Model | Zebra ZQ630 Plus (ZQ63-AAWAA04-00) |
Print Method | Direct Thermal |
Print Width | Up to 4.4 in (112mm) |
Print Resolution | 203 dpi (8 dots/mm) |
Print Speed | 4.5 in/sec (115mm/sec) |
Connectivity | Wi-Fi 802.11ac, Bluetooth 4.2 (Classic & BLE) |
Processor | 400 MHz 32-bit ARM |
Memory | 256 MB RAM, 512 MB Flash (128 MB user-available) |
Display | 288 x 240 PX full-colour screen with navigation buttons |
Battery | 6800 MAh (49.4 Wh) PowerPrecision+ Li-Ion removable battery |
Media Width | 2.0 in (51mm) to 4.4 in (112mm) (linered) |
Media Types | Die-cut labels, linerless labels, receipt paper, tags, RFID (optional) |
Media Thickness | 2.3 to 5.5 mil tag stock; up to 6.5 mil label stock |
Media Roll Size | Up to 66 mm OD; 0.75 in or 1.375 in core |
Drop Spec | Survives drops up to 6 ft. (1.83 m) to concrete |
Durability Rating | IP54 dust and water resistance |
Programming Languages | CPCL, EPL, ZPL, XML, ZBI 2.x |
OS Compatibility | iOS, Android, Windows |
Security | WPA/WPA2, AES, TKIP, 802.1x, EAP, FIPS support |
Weight | 1.1 kg (2.45 lbs) |
Dimensions | 186.7 mm (L) x 165.1 mm (W) x 82.5 mm (H) |
Management Tools | Zebra Print DNA, Link-OS®, SOTI®, AirWatch®, Ivanti®, SNMP, Web server |
Warranty | 12 months (standard manufacturer warranty) |
Features
- Tearbar
- Android
- iOS
- Windows
- 4"
- Direct Thermal
- Bluetooth
- WIFI
- Monochrome
- 4.5
- Mobile
- 4 inch
