Description

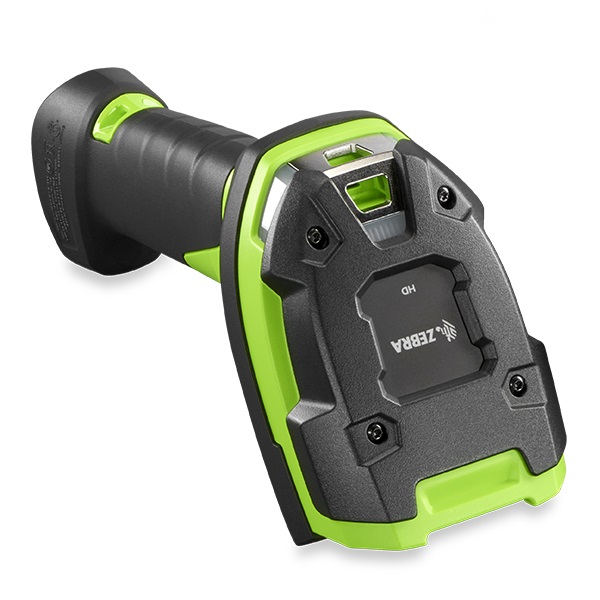

Engineered for the harshest industrial environments, the Zebra DS3608-DP Ultra-Rugged Corded Scanner delivers unbeatable performance for scanning Direct Part Marks (DPM) and standard 1D/2D barcodes. Designed for the manufacturing floor, this scanner ensures lightning-fast, precise data capture — even on the most challenging marks including dot peen, laser etch, ink mark, and chemical etch.
With its ultra-rugged construction, the DS3608-DP withstands multiple 8 ft drops to concrete, 5,000 tumbles, and is fully sealed to IP65 and IP67 standards — making it practically indestructible. The advanced illumination system adapts to various surfaces and contrasts, ensuring flawless scanning of reflective, curved, or low-contrast surfaces.
Whether you need reliable scanning for traceability, quality control, or inventory management, the DS3608-DP is your trusted tool for maximising productivity and minimising downtime in demanding manufacturing and warehousing environments.
Product Features
-
Superior DPM Scanning Performance — Instantly reads direct part marks and barcodes, even on challenging surfaces.
-
Ultra-Rugged Design — Withstands 8 ft (2.4m) drops and 5,000 tumbles, with IP65/IP67 sealing for dust, spray, and water resistance.
-
Advanced Illumination System — Captures marks on reflective, curved, low-contrast, or rough surfaces with ease.
-
Comprehensive Barcode Support — Reads a full range of 1D, 2D, OCR, and postal codes.
-
Industrial-Grade Performance — Operates reliably in extreme temperatures from -30°C to +50°C.
-
Intuitive User Feedback — Features direct decode indicators, LEDs, beeper, and vibration alerts.
-
Wide Host Interface Compatibility — Supports USB, RS232, and Keyboard Wedge connections.
-
Power-Efficient Operation — Consumes only 360mA (operating) with a standby current of 100mA.
-
Simple Device Management — Supports Zebra’s 123Scan and Scanner Management Service (SMS) tools.
-
3-Year Zebra Warranty — Industry-leading warranty for complete peace of mind.
Product Specifications
Scanner Type | 2D Imager for DPM & Barcodes |
Connectivity | Corded via USB, RS232, or Keyboard Wedge |
Drop Rating | Withstands multiple 2.4m drops to concrete |
Tumble Rating | 5,000 tumbles at 1m |
Sealing | IP65 / IP67 (dustproof, waterproof) |
Weight | 304g |
Decode Capability | 1D, 2D, DPM, OCR-A/B, Postal Codes |
Illumination | Dual Warm White LEDs, Red Diffused LEDs |
Aimer | 655nm Laser |
Print Contrast | 15% minimum reflectivity |
User Indicators | Beeper, LEDs, Vibration |
Warranty | 3 Years Manufacturer Warranty |
|
|
Features
IP Rating:
- 67
Rugged:
- Rugged
Scan Engine:
2D
Scan Range:
- Standard
Warranty:
3 Years
Color:
- Green
