Description

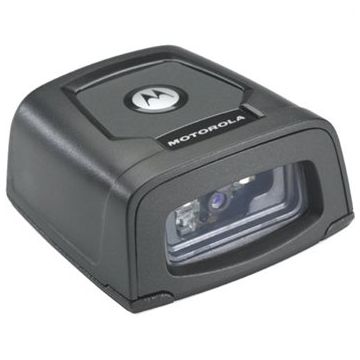

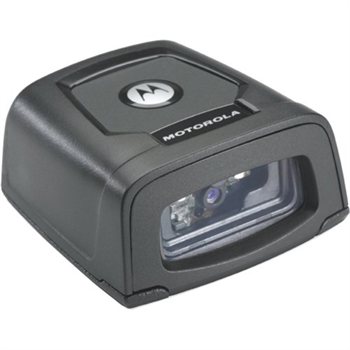

The Zebra DS457 Series barcode scanner delivers lightning-fast hands-free scanning in a compact, fixed-mount design. Whether you're at a retail checkout, airport gate, production line, or self-service kiosk, this scanner effortlessly captures virtually any barcode — including 1D, 2D, and even direct part marks (DPM) — from paper, screens, metal, or plastic.
Equipped with next-generation digital imaging technology, the DS457 series ensures unmatched scanning speed and accuracy, helping businesses streamline workflows and maximise efficiency. The ultra-compact form factor makes it ideal for space-constrained areas, while its sleek design complements customer-facing environments.
With multiple models tailored for specific applications — from high-density barcode reading to driver’s licence parsing — the DS457 is a versatile solution for industries including retail, manufacturing, transport, and security.
Product Features
-
Ultra-Fast Omni-Directional Scanning – Capture barcodes instantly without precise alignment.
-
Compact & Mountable – Just 2.3” wide, fits seamlessly under counters or in tight installations.
-
Mobile-Ready – Scans barcodes displayed on smartphones, ideal for loyalty cards, e-tickets, and boarding passes.
-
Powerful Processor – 624 MHz processor with patent-pending FastPulse illumination ensures rapid, reliable reads.
-
Seamless Integration – Use standalone or integrate into OEM systems like kiosks, terminals, and medical devices.
-
Flexible Connectivity – Supports USB and TTL RS232 interfaces.
-
Rugged & Reliable – Withstands multiple 30-inch drops and is sealed to IP54 for dust and water resistance.
Product Specifications
Scan Technology | Fixed-mount digital imager with FastPulse illumination |
Supported Barcodes | 1D, 2D (QR, PDF417, DataMatrix, Aztec), DPM, postal codes |
Sensor Resolution | 752 x 480 pixels, grayscale |
Scan Trigger | Automatic or triggered mode |
Interfaces | USB (full speed) and TTL RS232 |
Dimensions (H x L x W) | 2.92 x 5.84 x 6.2 cm (1.15 x 2.3 x 2.44 in.) |
Weight | 111 g (3.9 oz.) |
Operating Temp | -20° to 50° C |
Drop Specification | Multiple drops from 76 cm (30 in.) to concrete |
Sealing | IP54 |
Features
- 54
- Standard
- Fixed Mount
- Handsfree
- Wired
- Black
