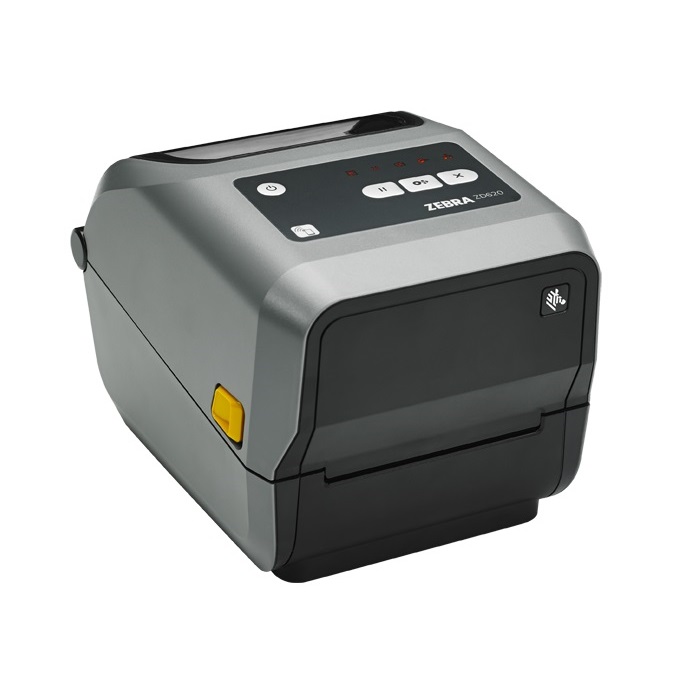

Zebra ZD620 D/TOP 203DPI D/T MULTI I/F LB/TAKE CUT Label Printer

1.5 inch, Cutter, iOS, Android, Windows, 4", 2 Years, Direct Thermal , USB Host, USB, Ethernet, Bluetooth, Serial, 203dpi, Black, Monochrome, 8, Desktop, 4 inch, Zebra
$1,149.00
For Special & Volume Pricing - Call +61 2 9090 4610
ZD62042-D4PF00EZ
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

Take your label printing to the next level with the Zebra ZD621 (ZD62042-D4PF00EZ), a next-generation 203DPI direct thermal desktop printer that builds on the trusted legacy of Zebra’s GX Series. Designed for maximum reliability, performance, and future-readiness, the ZD621 is engineered to thrive in demanding environments across healthcare, manufacturing, retail, logistics, and beyond.

Equipped with multiple connectivity options including USB, USB Host, Ethernet, Bluetooth, and NFC, this model also features a built-in cutter, Real-Time Clock, and an intuitive 3-button user interface with 5 status icons. Manage your device easily via Zebra's Print DNA suite, mobile setup app, and advanced remote management tools.

Its powerful architecture supports high-speed operations, secure processing, and seamless integration with ZPL/EPL legacy applications, making the ZD621 a perfect choice for businesses that need precision, durability, and scalability—all in one compact printer.


Product Features

  • Direct Thermal Printing – Print high-quality labels without the need for ribbons.
  • 203DPI Resolution – Crisp, accurate output for text, graphics, and barcodes.
  • Built-in Cutter – Automatically cuts labels for easy dispensing.
  • Multiple Interfaces – USB, USB Host, Serial, Ethernet, Bluetooth, and NFC.
  • Easy Setup & Monitoring – 3-button interface with 5 LED status icons and mobile setup app.
  • Advanced Connectivity – BLE support for mobile configuration (iOS & Android).
  • Real-Time Clock (RTC) – For time-sensitive labelling applications.
  • Smart Media Handling – Dual-wall frame, media dancer, and OpenACCESS design.
  • Wide Media Support – Compatible with various media types including tags, receipts, wristbands, and die-cut labels.
  • Zebra Print DNA & Security – Simplified remote management and built-in cybersecurity features.


Product Specifications

Specification

Details

Model

Zebra ZD621 (ZD62042-D4PF00EZ)

Print Method

Direct Thermal

Print Resolution

203 DPI

Max Print Width

4 inch (104 mm)

Max Label Length

991 mm

Print Speed

8 IPS (203mm/sec)

Interfaces

USB, USB Host, Serial, Ethernet, Bluetooth, NFC

User Interface

3 Buttons, 5 Status Icons

Cutter

Yes (Auto-Cutter)

Display

LCD (with Status Icons)

Memory

256MB RAM, 512MB Flash

Supported Languages

ZPL, ZPL II, EPL, EPL2, ZBI, XML

Media Types

Label, Tag, Receipt, Continuous, Wristband, Black Mark, Die-Cut

Max Roll Diameter

127 mm

Max Media Width

4 inch

Media Thickness

Up to 190 µm

Sensors

Gap, Black Mark, Full Width, Label Taken, Multi-Position

Mobile Device Printing

Yes (BLE Setup, SDKs available)

Operating System Support

iOS, Android, Windows

Construction

Dual-Wall Frame

Certifications

RoHS, ENERGY STAR, cTUVus

Power Supply

AC Supply, 50/60Hz

Dimensions

177mm x 221mm x 149mm

Weight

Approx. 1.63 kg

Warranty

2 Years Return To Base

Features

Core Size:
1.5 inch
Cutter Option:
  • Cutter
OS Compatability:
  • Android
  • iOS
  • Windows
Print Size:
  • 4"
Warranty:
2 Years
Print Method:
  • Direct Thermal
Interface:
  • USB Host
  • USB
  • Ethernet
  • Bluetooth
  • Serial
Color:
  • Black
Type:
  • Monochrome
Print Speed :
  • 8
Printer Type / Suitable For:
  • Desktop
Print Width:
  • 4 inch
Manufacturer
:
Zebra

Attachments

Brochure (Zebra_ZD620_Spec_Sheet.pdf, 293 Kb) [Download]
