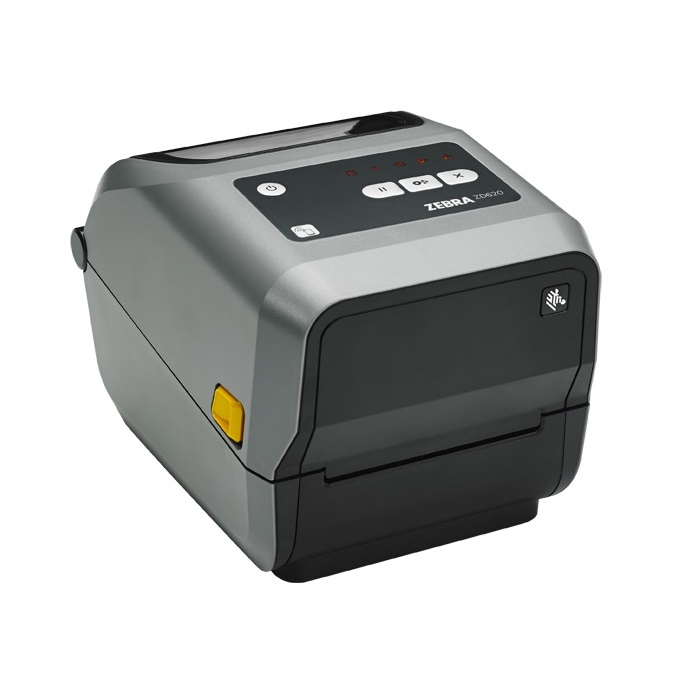

Zebra ZD620 D/TOP 203DPI D/T MULTI I/F LB/TAKE Label Printer

3 inch, No Auto-Cutter, Android, Windows, iOS, 4", 2 Years, Direct Thermal , USB, Serial / RS232, Ethernet, Bluetooth, WIFI, 203dpi, Grey, Monochrome, 8, Desktop, 4 inch, Zebra
$979.00
For Special & Volume Pricing - Call +61 2 9090 4610
ZD62042-D3PF00EZ
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

The Zebra ZD620 Direct Thermal Desktop Label Printer – the next-generation printer that combines top-tier performance, connectivity, and ease of use. Designed to replace the renowned GX Series and ZD500, the ZD620 delivers premium 203DPI print quality, a fast print speed, and an intuitive LCD user interface that simplifies operation.

This high-performance printer supports multiple connectivity options including USB, Ethernet, Serial, Bluetooth, and USB Host, making integration into your existing systems seamless. Ideal for industries like healthcare, retail, logistics, and manufacturing, the ZD620 is built to handle high-volume tasks with maximum uptime.

Equipped with a peel-and-present (label dispenser) mechanism, the ZD620 boosts workflow efficiency while its compact design fits comfortably in any workspace. Powered by Zebra’s Link-OS and Print DNA software suite, this printer is future-ready with secure remote management and advanced diagnostics capabilities.


Product Features

  • High-resolution 203 DPI direct thermal printing for clear, sharp labels
  • Peel-and-present (dispenser) for faster label application
  • Multiple interfaces: USB, Serial, Ethernet, Bluetooth, USB Host
  • Full-colour LCD with 10-button interface for easy configuration and operation
  • Supports ZPL, EPL, XML, ZBI and other printer languages for seamless integration
  • Built-in Real Time Clock (RTC) for accurate time-stamping
  • Compact design with dual-wall frame construction for enhanced durability
  • ENERGY STAR certified for energy efficiency
  • Compatible with Android, iOS, and Windows platforms
  • Designed for critical applications across healthcare, logistics, retail


Product Specifications

Specification

Details

Model

ZD620 (ZD6A042D3PF00EZ)

Print Method

Direct Thermal

Print Resolution

203 DPI

Max Print Speed

8 inches/sec

Max Print Width

4 inch (104 mm)

Connectivity

USB, USB Host, Serial, Ethernet, Bluetooth

Display

LCD Touchscreen with 10-button control

Dispenser

Label Peeler (Peel & Present)

Real Time Clock

Yes

Supported Media Types

Roll-fed, Die-cut, Tag, Receipt, Continuous, Wristbands

Media Width

4 inch (118 mm)

Max Media Roll Diameter

127 mm

Supported OS

Windows, iOS, Android

Supported Commands

ZPL II, EPL, ZBI, XML

Emulations

EPL, EPL2, ZPL, ZPL II, ZBI, EZPL

Memory

256 MB RAM / 512 MB Flash

Dimensions (W x H x D)

177mm x 149mm x 221mm

Weight

Approx. 1.63 kg

Certifications

RoHS, Energy Star, CE, FCC, cTUVus

Application Use

Desktop / Healthcare / Retail / Logistics / Manufacturing

Warranty

2-Year Limited Warranty


Features

Core Size:
3 inch
Cutter Option:
  • No Auto-Cutter
OS Compatability:
  • Android
  • iOS
  • Windows
Print Size:
  • 4"
Warranty:
2 Years
Print Method:
  • Direct Thermal
Interface:
  • USB
  • Serial / RS232
  • Ethernet
  • Bluetooth
  • WIFI
Color:
  • Grey
Type:
  • Monochrome
Print Speed :
  • 8
Printer Type / Suitable For:
  • Desktop
Print Width:
  • 4 inch
Manufacturer
:
Zebra

Attachments

Brochure (Zebra_ZD620_Spec_Sheet.pdf, 293 Kb) [Download]
