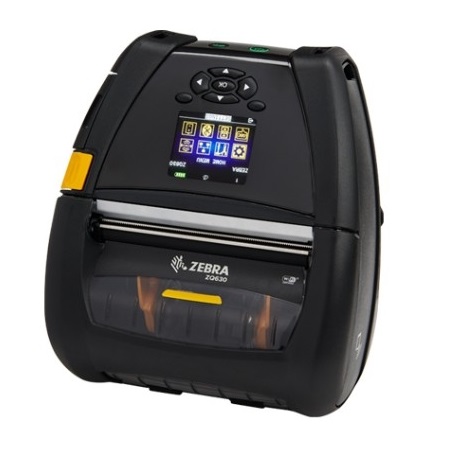

Zebra ZQ630 4 Inch, Bluetooth 4 Mobile Label Printer

Tearbar, Windows, iOS, Android, 4", 1 Year, Direct Thermal , Bluetooth, 203dpi, Grey, Black, Monochrome, 4.5, Mobile, 4 inch, Zebra
$1,595.00
For Special & Volume Pricing - Call +61 2 9090 4610
ZQ63-AAFAA00-00
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

Enhance mobility, productivity, and efficiency with the Zebra ZQ630 Plus, a rugged 4-inch direct thermal mobile label printer designed for demanding enterprise environments. Part of Zebra’s ZQ600 Plus Series, this printer builds upon the popular QLn platform with superior features, including a large colour display, Bluetooth 4.x connectivity, and an intelligent battery system that keeps your team going—shift after shift.

Designed for use across industries—retail, manufacturing, logistics, and healthcare—the ZQ630 Plus delivers fast, high-quality printing of labels, tags, and receipts on the go. Its 6800mAh PowerPrecision+ Li-Ion battery ensures uninterrupted performance, while Zebra’s Print DNA suite of tools simplifies device management, integration, and security.

With an intuitive user interface, IP54-rated durability, and support for ZPL, EPL, and CPCL printer languages, the ZQ630 Plus is a mobile powerhouse made for enterprise-scale workflows. Whether mounted on a belt or used with accessories, it delivers reliable printing wherever your operations demand it.


Product Features

  • Direct Thermal Printing – Ideal for labels, tags, and receipts on demand
  • Bluetooth 4.x Connectivity – Seamless wireless pairing with iOS, Android, and Windows
  • 4.1” Print Width (104 mm) – Perfect for wide-format mobile labelling tasks
  • Large Colour Display – Easy-to-read 288x240 pixel LCD for printer status and navigation
  • 6800 mAh Battery – Full-shift performance with smart PowerPrecision+ technology
  • Rugged Design – Withstands 6 ft (1.83 m) drops and rated IP54 for dust and water resistance
  • Peel-and-Present Mode – Includes label present sensor for efficient batch printing
  • Clamshell Media Loading – Fast and easy label replacement in the field
  • Zebra Print Touch & NFC – Simplifies Bluetooth pairing and support access
  • Printer Management Support – Integrates with AirWatch®, SOTI®, Ivanti®


Product Specifications

Specification

Details

Model

ZQ630 Plus

Print Method

Direct Thermal

Print Resolution

203 DPI (8 dots/mm)

Max Print Width

4 inch (104 mm)

Max Print Speed

Up to 4.5 IPS (115 mm/sec)

Media Width

51 mm – 112 mm (linered), 51 mm – 104 mm (linerless)

Media Roll Size

Max Ø66 mm on 19 mm or 34.9 mm core

Media Types

Die-cut, black mark, linerless, tags, receipt paper

Battery

6800 mAh (49.4 Wh) PowerPrecision+ Li-Ion (removable, rechargeable)

Display

Colour LCD (288x240), with navigation buttons

Memory

256 MB RAM, 512 MB Flash (128 MB user-accessible)

Interfaces

Bluetooth 4.x (Classic & BLE), NFC

Barcodes Supported

1D (Code 39, UPC, EAN, etc.), 2D (QR, PDF417, Data Matrix, etc.)

Durability

IP54, 6 ft. drop tested

Operating Temp.

-20°C to 50°C

Humidity

10% to 90% non-condensing

Dimensions (WxDxH)

187mm x 165mm x 83mm

Weight with Battery

1.1 kg

OS Compatibility

iOS, Android, Windows

Software & Tools

Print DNA, Link-OS, PrintSecure, Zebra Network Connect

Certifications

FCC, CE, TUV, VCCI, FIPS security available

Warranty

1-Year Manufacturer’s Warranty

Features

Cutter Option:
  • Tearbar
OS Compatability:
  • Android
  • iOS
  • Windows
Print Size:
  • 4"
Warranty:
1 Year
Print Method:
  • Direct Thermal
Interface:
  • Bluetooth
Color:
  • Grey
  • Black
Type:
  • Monochrome
Print Speed :
  • 4.5
Printer Type / Suitable For:
  • Mobile
Print Width:
  • 4 inch
Manufacturer
:
Zebra

Attachments

Brochure (Zebra_ZQ600-Series-Spec-Sheet.pdf, 837 Kb) [Download]
