Description

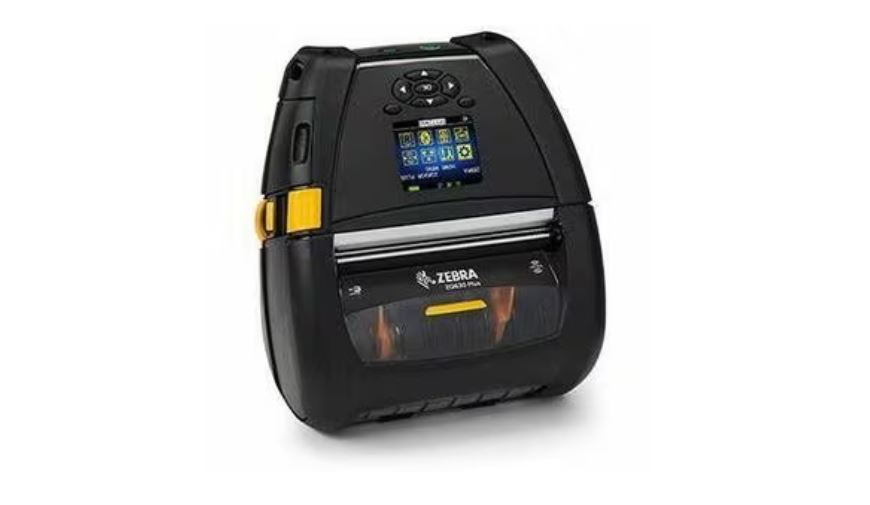

The Zebra ZQ630 Plus sets a new standard in premium mobile label printing with cutting-edge features, Wi-Fi 6 dual-radio and Bluetooth 5.x connectivity, and Zebra’s latest Print DNA software. Designed for high-performance logistics, manufacturing, retail, and healthcare applications, this 4-inch 203DPI direct thermal printer delivers productivity on the move—allowing staff to print labels, tags, and receipts anywhere, anytime.
Featuring a 6800 mAh PowerPrecision+ battery, rugged IP54 design, intelligent label sensing, and a large colour display, the ZQ630 Plus empowers teams with seamless operations throughout long shifts. With Zebra’s Link-OS® and Print DNA suite, businesses can manage and monitor printers remotely, improving uptime and reducing IT overhead.
Whether you’re using Apple®, Android™, or Windows® devices, the ZQ630 Plus integrates effortlessly, supporting ZPL®, CPCL, and EPL™ print languages, along with gap/black mark sensing for versatile media compatibility.
Product Features
- 203DPI Resolution – Crisp and reliable barcode, text, and graphic output
- Wi-Fi 6 Dual Radio + Bluetooth 5.x – High-speed, simultaneous wireless communication
- Direct Thermal Printing – No ink or ribbon required, ideal for mobile environments
- 6800 mAh Smart Battery – All-day power with PowerPrecision+ technology
- Large 288 x 240 Colour Display – With alerts and navigation for easy use
- Zebra Print DNA & Link-OS® – Advanced printer management, integration, and security
- Drop-resistant Design – Withstands drops from 6 feet (1.83m); IP54 dust and water resistance
- Peel and Present Mode – For fast, on-demand label printing
- Multilingual Fonts – English, Traditional Chinese, Korean preloaded
- Zebra Print Touch (NFC) – Quick Bluetooth pairing and online support
- Supports Apple, Android, Windows – For universal compatibility
- Comprehensive Emulation – ZPL, CPCL, EPL™ for easy integration into legacy systems
Product Specifications
Specification | Details |
Model | ZQ630 Plus |
Print Method | Direct Thermal |
Print Resolution | 203 DPI / 8 dots per mm |
Max Print Width | 4 inch (104 mm) |
Max Print Speed | 4.5 IPS (115 mm/sec) |
Print Length | 12.7 mm – 813 mm (0.5 in – 32 in) |
Media Width | 2 inch – 4 inch (51 mm – 112 mm, linered) |
Media Roll Size | Up to 66 mm O.D., 0.75"/1.375" core |
Media Types | Die-cut, linerless, receipt paper, black mark, RFID |
Media Sensors | Black mark, gap, and label-present sensor |
Battery | 6800 mAh PowerPrecision+ Li-Ion, removable, rechargeable |
Connectivity | Wi-Fi 6 (802.11ax), Bluetooth 5.x, USB 2.0, RS-232 (serial) |
Display | 288 x 240 px full-colour LCD with 5-way navigation keys |
Memory | 256 MB RAM / 512 MB Flash (128 MB user-accessible) |
Supported OS | Link-OS® |
Emulations | ZPL®, CPCL, EPL™ |
Operating Temp | -20°C to 50°C |
Humidity | 10% – 90% RH (non-condensing) |
Drop Rating / IP Rating | 1.83m (6 ft) drop, IP54 rated |
Dimensions (LxWxH) | 187mm x 165mm x 83mm |
Weight | 1.1 kg (2.45 lbs) with battery |
Security | FIPS, AES, WPA2, 802.1x, NFC pairing, Zebra Secure Boot |
Approvals | CE, FCC, EN55022 Class B, VCCI Class B, TUV, CSA |
Warranty | 1-Year Manufacturer’s Warranty |
Features
- Android
- iOS
- Windows
- Direct Thermal
- USB
- Serial / RS232
- Bluetooth
- WIFI
- Grey
- Black
- Monochrome
- 4.5
- Mobile
- 4 inch
