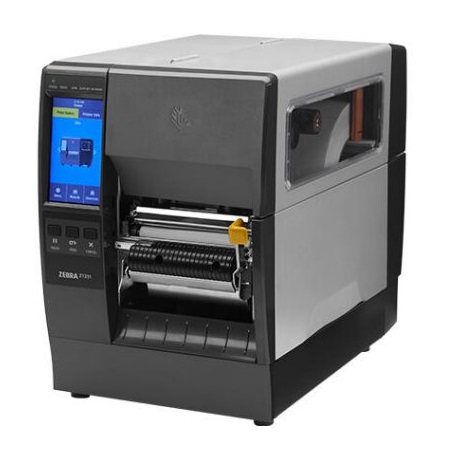

ZEBRA ZT231 203DPI T/T MULTI WIFI MIDRANGE PRINTER

3 inch, Cutter, 4", 1 Year, Thermal Transfer, USB, Serial / RS232, Ethernet, WIFI, 203dpi, Dark Grey, Monochrome, 12, Industrial, 4 inch, Zebra
$2,699.00
For Special & Volume Pricing - Call +61 2 9090 4610
ZT23142-T0PC00FZ
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

The Zebra ZT231 combines premium performance with an affordable price point, offering businesses in Australia a reliable, high-speed 4-inch thermal transfer label printer built to scale with your operations. Featuring 203DPI resolution, this industrial-grade printer delivers crisp, accurate labels for manufacturing, logistics, healthcare, and warehousing.

Equipped with a 4.3" colour touch screen, multiple connectivity options including Wi-Fi (802.11ac), Ethernet, USB, USB Host, Serial, and Bluetooth Low Energy, the ZT231 simplifies integration and enhances workflow flexibility. The ZT231 also supports ZPL, EPL, and EPL2 programming languages for seamless compatibility with legacy systems.

Its rugged metal frame and intuitive side-loading media design make the ZT231 both durable and user-friendly. The printer supports a wide range of media types and is upgrade-ready for RFID encoding and additional media handling features. Powered by Zebra's Print DNA software suite, the ZT231 enables secure, smart printing at scale.


Product Features

  • Durable Midrange Design – Metal frame with plastic enclosures for industrial reliability
  • 203DPI High-Quality Printing – Ideal for shipping labels, compliance labels, and product ID
  • Connectivity Ready – USB, Serial, Ethernet, USB Host, Bluetooth LE, and 802.11ac Wi-Fi
  • User-Friendly Interface – 4.3" full-colour touchscreen for fast setup and management
  • Side-Loading Media – Simplified ribbon and media changes
  • Smart Firmware Support – ZPL, ZPL II, EPL, EPL2, and optional ZBI 2.0 for standalone applications
  • Future-Ready – Optional RFID encoding, guillotine cutter, peel/re-winder kits
  • Print DNA Software Suite – Enhanced manageability, security, and remote diagnostics


Product Specifications

Specification

Details

Model

ZT23142-T0PC00FZ

Print Method

Thermal Transfer

Resolution

203 DPI (8 dots/mm)

Max Print Speed

Up to 12 IPS (305 mm/sec)

Max Print Width

4 inch (104 mm)

Media Width

Up to 4 inch

Min Label Length

Tear mode: 17.8 mm; Peel mode: 12.7 mm; Cutter: 25.4 mm

Media Roll Capacity

203 mm (8") O.D. on 76 mm (3") I.D. core

Ribbon Length/Width

Up to 450 m; 40 mm – 110 mm

Display

4.3” Colour Resistive Touch Screen

Connectivity

USB 2.0, Serial RS232, Ethernet, USB Host, BTLE, Wi-Fi 802.11ac

Emulations

ZPL, ZPL II, EPL, EPL2

Memory

256 MB SDRAM (32 MB user-available), 256 MB Flash (64 MB user-available)

Optional Features

RFID Encoder, Cutter, Rewinder, Peel-off Module

Barcodes Supported

1D (Code 39, Code 128, EAN, UPC, etc.) & 2D (QR Code, PDF417, DataMatrix, Aztec, etc.)

Dimensions (WxDxH)

241mm x 432mm x 279mm

Weight

9.1 kg

Operating Temperature

5°C to 40°C (TT), 0°C to 40°C (DT); 20% – 85% RH non-condensing

Compliance

RCM, CE, FCC Class B, UKCA, BIS, CCC, BSMI, VCCI, cTUVus

Features

Core Size:
3 inch
Cutter Option:
  • Cutter
Print Size:
  • 4"
Warranty:
1 Year
Print Method:
  • Thermal Transfer
Interface:
  • USB
  • Serial / RS232
  • Ethernet
  • WIFI
Color:
  • Dark Grey
Type:
  • Monochrome
Print Speed :
  • 12
Printer Type / Suitable For:
  • Industrial
Print Width:
  • 4 inch
Manufacturer
:
Zebra

Attachments

Brochure (Zebra-ZT231-PDF.pdf, 175 Kb) [Download]
