Description

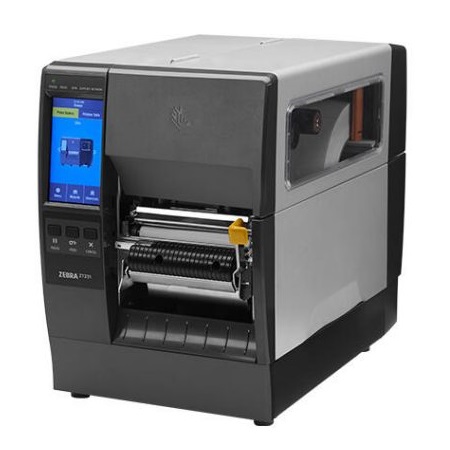

The Zebra ZT231 is an affordable, industrial-grade 4-inch 203DPI thermal transfer label printer built to deliver smart performance, future-ready scalability, and industry-leading reliability. With a compact footprint, intuitive 4.3” colour touchscreen, and guillotine cutter with catch tray, this printer is ideal for manufacturing, warehousing, logistics, and healthcare applications in Australia.
Equipped with USB, Serial, Ethernet, Bluetooth Low Energy (BTLE), and USB Host connectivity, the ZT231 ensures fast integration into existing systems while enabling seamless data transfer. The printer supports both thermal transfer and direct thermal printing, producing sharp, long-lasting labels and barcodes up to 4.5” wide.
Built with a metal frame and plastic enclosures, and enhanced by Zebra's Print DNA software suite, the ZT231 combines durability with smart features such as advanced label counters, auto-calibration, and remote printer management. Optional upgrades, including RFID encoding and Wi-Fi connectivity, ensure your investment stays relevant for years to come.
Product Features
- 203DPI High-Resolution Output – Crisp text, barcodes, and graphics
- Thermal Transfer & Direct Thermal Printing – Versatile media handling
- Front-Mount Guillotine Cutter – Clean and efficient label separation
- Catch Tray Included – Keeps printed labels organised
- 4.3” Colour Touchscreen – Intuitive interface with three-colour LED indicators
- Durable Design – Metal frame with bi-fold media door and clear window
- Smart Connectivity – USB, Serial, Ethernet, BTLE, USB Host
- Print DNA Suite – Built-in tools for security, manageability, and efficiency
- Side-Loading Media Path – Simplified ribbon and media installation
- Upgradeable – Optional RFID encoder, 802.11ac Wi-Fi, and more
- ENERGY STAR® Certified – Eco-friendly performance
Product Specifications
Specification | Details |
Model | Zebra ZT231 |
Print Method | Thermal Transfer & Direct Thermal |
Resolution | 203 DPI (8 dots/mm) |
Max Print Width | 4 inch (104 mm) |
Max Print Speed | Up to 12 IPS (305 mm/sec) |
Max Media Width | 4.5 inch (114 mm) |
Min Label Length | 1 inch (25.4 mm) in cutter mode |
Max Label Length | 991 mm (39 inches) |
Media Types Supported | Continuous, Die-cut, Notch, Black-mark |
Media Thickness | 0.076 – 0.25 mm |
Media Roll Size | 203 mm OD on 76 mm core; 152 mm OD on 25 mm core |
Ribbon Length | Max. 450 metres |
Ribbon Width | 40 mm to 110 mm |
Interfaces | USB 2.0, RS-232 Serial, 10/100 Ethernet, USB Host, BTLE |
Optional Interfaces | 802.11ac Wi-Fi, Applicator Interface, RFID Encoder |
Display | 4.3" Colour Touchscreen, Three-Colour LED Indicators |
Memory | 256MB SDRAM (32MB user), 256MB Flash (64MB user) |
Programming Languages | ZPL/ZPL II, EPL (203DPI only), ZBI 2.0 |
Barcode Support | 1D & 2D Barcodes incl. QR Code, DataMatrix, PDF417, MaxiCode, etc. |
Media Handling | Guillotine Cutter with Catch Tray |
Construction | Metal Frame with Plastic Enclosure |
Dimensions (W x D x H) | 241mm × 432mm × 279mm |
Weight | Approx. 9.1 kg (20 lbs) |
Compliance | ENERGY STAR®, CE, RCM, FCC Class A, UL, C-Tick |
Operating Environment | 0°C to 40°C, 20%–85% RH (non-condensing) |
Warranty | 2 Years Standard Manufacturer's Warranty |
