Bixolon XD3-40DEK 4" USB/Serial/Ethernet D/T Label Printer

Serial, USB, Ethernet, 1 inch, Tearbar, Windows, Linux, 4", 2 Years, Direct Thermal , USB, Ethernet, Serial, 203 dpi , Black, Monochrome, 5, Desktop, 4 inch, BIXOLON
$429.00
For Special & Volume Pricing - Call +61 2 9090 4610
XD3-40DEK
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Models

Description

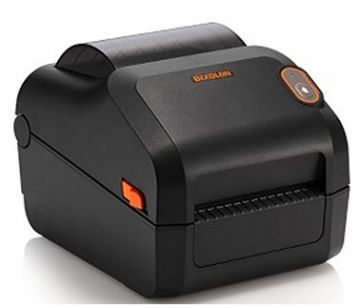

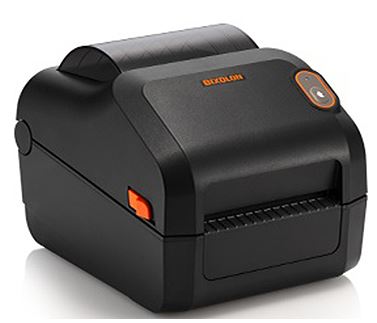

The Bixolon XD3-40DEK is a compact and cost-effective 4 inch direct thermal desktop label printer, purpose-built for logistics, warehousing, manufacturing, and retail applications. Offering seamless connectivity via USB, Serial, and Ethernet, it provides exceptional versatility at an entry-level price point.

Delivering fast print speeds of up to 5 inches per second, this model is perfect for businesses requiring quick and reliable label output. It supports market-leading programming languages, including seamless smart switching without manual configuration, and is compatible with popular label design software like BarTender and Label Artist.

With its easy media loading, adjustable guides, and compact design, the XD3-40DEK simplifies your workflow without compromising on performance. Backed by a 24-month warranty, it’s a smart investment for growing operations.


Product Features

  • Direct Thermal label printing 4 inches wide
  • High-speed printing at 5 IPS (127mm/sec)
  • 203dpi resolution for clear text and barcodes
  • Triple Interface: USB, Serial, and Ethernet
  • Smart language switching for seamless integration
  • Compact, space-saving design ideal for tight workspaces
  • Easy media loading with adjustable paper guide and holder
  • Supports multiple media types: gap, black mark, fan-fold, continuous
  • Compatible with BarTender UltraLite and Label Artist
  • Optional peeler and external paper supply


Product Specifications

Specification

Details

Print Method

Direct Thermal

Max Print Speed

5 IPS  (127mm/sec)

Print Resolution

203 dpi

Max Print Width

4 inch

Max Print Length

1,000 mm

Media Types Supported

Gap, Black Mark, Notch, Continuous, Fan-Fold

Media Width

4 inch

Media Roll Diameter

4 inch

Media Thickness

0.06 – 0.20 mm

Core Size

1 inch

Interfaces

USB, Serial, Ethernet

Software Compatibility

Label Artist, BarTender, UltraLite

Sensor Type

Transmissive (Fixed), Reflective (Adjustable)

Power Supply

External 100–240V AC, 50/60Hz

Dimensions (WxDxH)

181mm x 222mm x 168 mm

Weight

1.7 kg

Warranty

24 Months

Features

Cable:
  • Serial
  • USB
  • Ethernet
Core Size:
1 inch
Cutter Option:
  • Tearbar
OS Compatability:
  • Linux
  • Windows
Print Size:
  • 4"
Warranty:
2 Years
Print Method:
  • Direct Thermal
Interface:
  • USB
  • Ethernet
  • Serial
Color:
  • Black
Type:
  • Monochrome
Print Speed :
  • 5
Printer Type / Suitable For:
  • Desktop
Print Width:
  • 4 inch
Manufacturer
:
BIXOLON

Attachments

Brochure (br_xd3-40d.pdf, 1,275 Kb) [Download]
