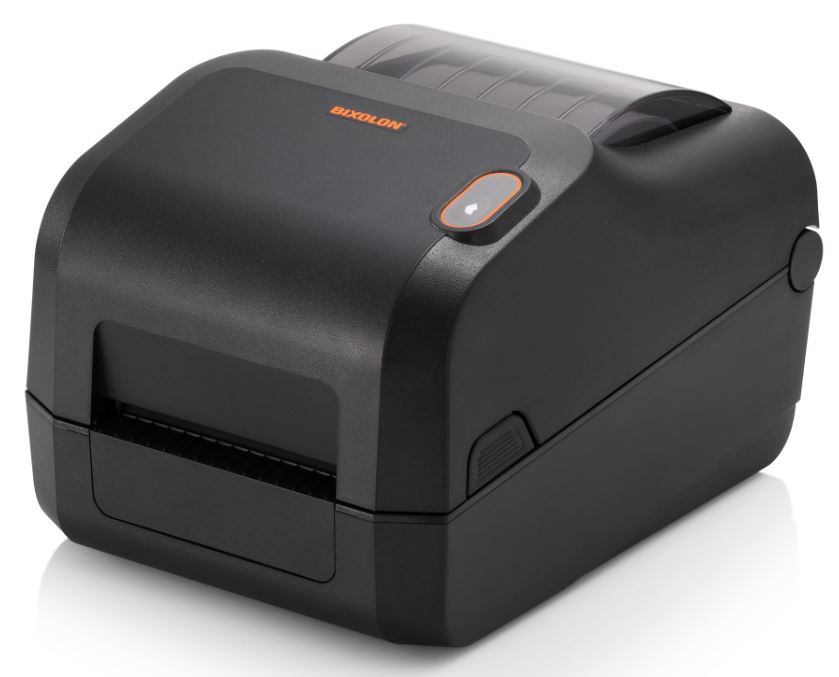

Bixolon XD3-40TEK 4" Ser+USB+Eth Thermal Transfer Label Printer

1 inch, Linux, Mac, Windows, 4", 2 Years, Thermal Transfer, USB, Ethernet, Serial, 203dpi, Black, Monochrome, 5, Desktop, 4 inch, BIXOLON
$473.00
For Special & Volume Pricing - Call +61 2 9090 4610
XD3-40TEK
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Models

$473.00 (Inc GST)
+
$349.00 (Inc GST)
+

Description

The Bixolon XD3-40TEK is a robust and cost-effective 4 inch desktop thermal transfer label printer, designed for medium-volume printing needs across industries such as retail, logistics, warehousing, and healthcare. Combining performance, reliability, and flexibility, the XD3-40TEK supports both direct thermal and thermal transfer printing, offering seamless compatibility with industry-standard programming languages including SLCS, BPL-Z (ZPL II), and BPL-E (EPL).

With USB, Serial, and Ethernet connectivity, this Australian model ensures easy integration into existing infrastructure. The XD3-40TEK is engineered for convenience with easy paper loading, adjustable media sensors, and tool-less maintenance of the print head and roller, making it ideal for environments requiring maximum uptime.

This compact, ENERGY STAR certified printer also supports a wide range of media types and ribbon sizes, making it a powerful and scalable solution for businesses that demand both economy and efficiency.


Product Features

  • Prints via Thermal Transfer or Direct Thermal methods
  • 203 dpi resolution and print speeds 5 IPS (127 mm/sec)
  • Supports a wide media range: gap, black mark, notch, continuous, fan-fold
  • Triple interface connectivity: USB, Serial & Ethernet (included in this model)
  • Open-access design for easy media loading and ribbon replacement
  • Compatible with ZPL II (BPL-Z), EPL (BPL-E), and SLCS programming languages
  • Toolless maintenance of print head and platen roller
  • Supports ribbons from 74m to 300m (0.5 inch and 1inch core)
  • Energy efficient and ENERGY STAR certified
  • Two-year warranty


Product Specifications

Specification

Details

Model

XD3-40TEK

Print Method

Thermal Transfer / Direct Thermal

Resolution

203 dpi

Max Print Width

4 inch (104 mm)

Max Print Length

1,000 mm

Print Speed

5 IPS (127 mm/sec)

Media Width

4 inch

Media Types

Gap, Black Mark, Notch, Continuous, Fanfold

Media Thickness

0.06 mm – 0.20 mm

Max Roll Diameter

127 mm

Ribbon Length

74 m – 300 m

Ribbon Width

4 inch

Interfaces

USB, Serial, Ethernet

Memory

64 MB SDRAM, 128 MB Flash

Sensor Types

Transmissive (Fixed), Reflective (Adjustable), Ribbon-End, Head Open

Barcode Support

1D & 2D Symbologies incl. QR Code, PDF417, Data Matrix

Fonts

Bitmap, Scalable, Unicode (UTF-8, UTF-16LE/BE)

Emulations

SLCS, BPL-Z (ZPL II), BPL-E (EPL)

Dimensions (W x D x H)

210mm x 284mm x 186 mm

Weight

2.6 kg

Power Supply

External, 100-240V AC, ENERGY STAR certified

Operating Temperature

5°C to 40°C

Warranty

24 Months

Features

Core Size:
1 inch
OS Compatability:
  • Linux
  • Mac
  • Windows
Print Size:
  • 4"
Warranty:
2 Years
Print Method:
  • Thermal Transfer
Interface:
  • USB
  • Ethernet
  • Serial
Color:
  • Black
Type:
  • Monochrome
Print Speed :
  • 5
Printer Type / Suitable For:
  • Desktop
Print Width:
  • 4 inch
Manufacturer
:
BIXOLON

Attachments

Brochure (BR_XD3.pdf, 1,353 Kb) [Download]
