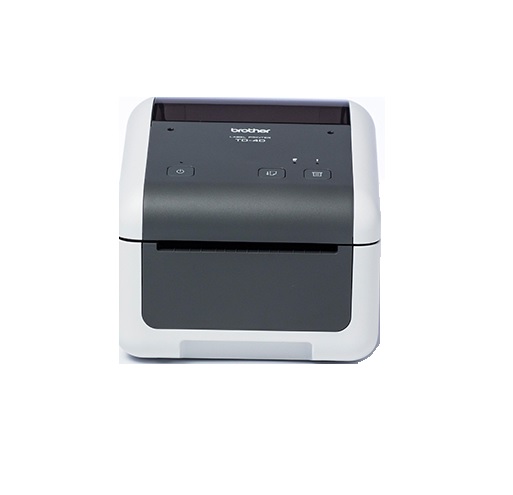

The Brother TD-4420DN is a robust and high-performance 4 inch desktop label printer, built for businesses requiring fast and accurate barcode, shipping, and shelf label printing. Using direct thermal printing technology, it eliminates the need for ink or toner while maintaining clear, professional-quality output.
With 203dpi resolution and print speeds 8 IPS (203.2mm/sec) , this printer is designed to keep up with demanding workflows. Featuring Ethernet, Serial, and USB connectivity, it integrates seamlessly into existing networks. The TD-4420DN supports ZPLII, EPL, DPL, and other common command languages for easy system integration.
Its compact footprint and intuitive design make it perfect for use in logistics, warehousing, healthcare, retail, and manufacturing environments. Equipped with advanced barcode symbology support, auto media calibration, and software tools like Brother's P-touch Editor, it ensures consistent, accurate label production.
Product Features
- Direct Thermal Printing – no ribbons or ink required
- High-speed output – 8 IPS (203.2mm/sec) for efficient operations
- 203dpi resolution – sharp text and barcode printing
- Triple interface options – USB (2.0), RS-232 Serial, and Ethernet
- Wide media compatibility – supports continuous, die-cut, fan-fold, perforated, and tag media
- ZPLII, EPL, DPL, Raster command support – for seamless software integration
- Compact & durable – perfect for space-constrained environments
- Bundled with P-touch Editor software – for custom label design
- 2-year warranty – includes hardware support and 6-month print head coverage
Product Specifications
Specification | Details |
Print Technology | Direct Thermal |
Print Resolution | 203 dpi |
Max Print Speed | 8 IPS (203.2mm/sec) |
Max Print Width | 4 inch (108.4 mm) |
Max Print Length | 3,000 mm (118.11 inch) |
Media Width | 4 inch |
Media Types | Continuous, Die-Cut, Fan-Fold, Tag |
Media Thickness | 0.06 – 0.279 mm |
Interfaces | USB 2.0 (Type B), Serial RS-232C, Ethernet |
Memory | 256MB RAM, 64MB Flash (40MB user area) |
Control Panel | 3 LEDs, 3 buttons (Power / Feed / Print) |
Supported Commands | ZPLII, EPL, DPL, Raster, ESC/P |
Barcodes | 1D & 2D including QR, PDF417, DataMatrix |
Dimensions (W x H x D) | 180mm x 155mm x 224mm |
Weight | 2.08 kg |
Warranty | 2 Years Hardware / 6 Months Print Head |
