Citizen CMP-30 3" Portable Thermal Printer with USB, RS232 Interface & Wifi (Label version)

Cutter, Mobile, Thermal Print, USB, Serial / RS232, WIFI, 203 dpi , Black, 80mm/sec, 3 inch, CITIZEN
$1,289.00
For Special & Volume Pricing - Call +61 2 9090 4610
CMP30LWF
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Models

Description

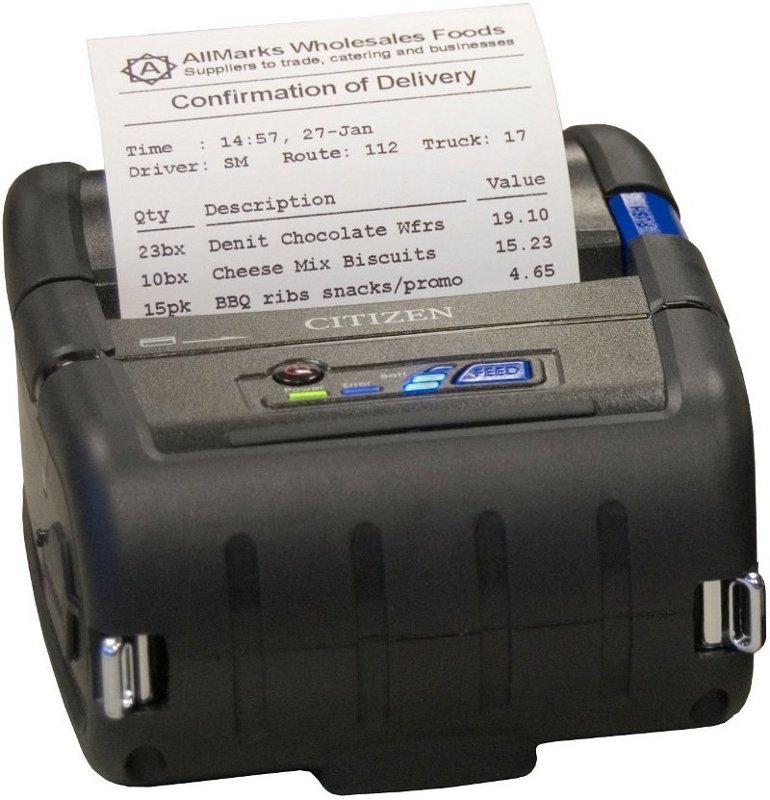

The Citizen CMP-30 is a robust and portable 3-inch thermal receipt printer designed for mobile professionals who need fast and reliable printing on the go. Featuring both USB and RS232C Serial interfaces, it offers flexible connectivity for a range of devices, including POS terminals, tablets (via adapters), and more.

Ideal for retail, hospitality, logistics, and field services, this printer supports direct line thermal printing at speeds up to 80 mm/sec with crisp 203 dpi resolution. Its durable elastomeric over-moulded plastic case provides protection in demanding environments, while the easy-to-load clamshell design reduces downtime during paper changes.

Supporting paper widths from 25mm to 80mm, and a maximum roll diameter of 56mm, it’s compatible with a variety of receipt and label formats. Enhanced by its ESC/POS and CPCL emulation support, the CMP-30 integrates easily with existing applications.

Product Features

  • USB & RS232C Serial connectivity for flexible device compatibility

  • Prints up to 80 mm/sec for quick receipts and labels

  • Supports 25mm to 80mm media width, ideal for varied applications

  • 203 dpi resolution for sharp, legible output

  • Durable construction with elastomeric over-moulded case

  • Clamshell mechanism for fast, easy paper loading

  • Long-lasting 2200mAh Li-ion battery with optional AC charging

  • Compact and lightweight at approx. 799g including battery & paper roll

  • Optional magnetic stripe reader with 3-track support

  • User interface with Feed/Power buttons and 5 LED indicators

  • ESC/POS & CPCL emulation for easy software integration

  • Error monitoring for paper end, cover open, head overheat, and low battery

Product Specifications

Printing Method

Direct Line Thermal Dot Printing

Print Width

72mm

Print Speed

Up to 80 mm/sec

Resolution

203 dpi (8 x 8 dots/mm)

Media Width

25mm – 80mm

Max Roll Diameter

56mm

Core Size

≥8.5mm (inside diameter)

Case Type

Elastomeric Over-Moulded Plastic

Mechanism

Clamshell, Easy-Load

Interfaces

USB, RS-232C Serial

Optional Interfaces

Bluetooth®, Wireless LAN

Emulation

ESC/POS, CPCL

User Interface

Feed & Power Buttons, 5 LED Indicators

Sensors

Paper End, Cover Open, Low Battery, Head Overheat

Optional MSR

3-Track Magnetic Stripe Reader

Battery

Li-ion 7.4V, 2200mAh

Weight

Approx. 799g (with battery & paper)



Features

Cutter Option:
  • Cutter
Receipt Printers Type:
  • Mobile
Print Method:
  • Thermal Print
Interface:
  • USB
  • Serial / RS232
  • WIFI
Color:
  • Black
Print Speed :
  • 80mm/sec
Print Width:
  • 3 inch
Manufacturer
:
CITIZEN

Attachments

Citizen CMP30LWF-Brochure (cmp20-30_brochure.pdf, 164 Kb) [Download]

Specifications- CMP-30 (Specifications-_CMP-30.pdf, 102 Kb) [Download]
