**Discontinued - Replaced by the CTS-651II**

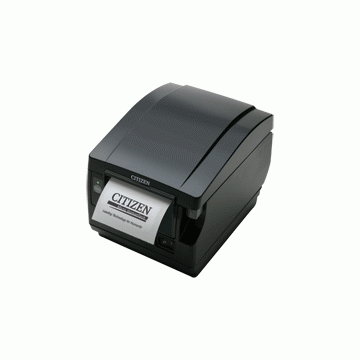

CITIZEN CTS-651 Thermal Printer no I/F Black
The New CT-S651 is your Next Best Printing Solution for your receipt applications as it not only offers Front Exit and more features for less money, but also it is fully compatible with previous Citizen models - making the CT-S651 the Best Value in any class! All these new features with front exit path of the Paper.
Main Features :
- High Speed Direct Thermal Printing
- Paper exit from the front for better splash proofing
- Up to 200mm/sec providing fast printing results for customers.
- Longer cutter life delivers lower maintenance costs
- Greater reliability delivers longer life & lower maintenance costs
- Wider paper width allows printing of additional information & larger fonts
- USB standard meets market standardization requirements
- 2D/PDF417 bar code support
- Built in power supply eliminates unsightly "brick" and frees up space
- Available in Black and White
Attachments
Specifications
|
Printing Method |
Line Thermal Dot Printing |
|
Printing Width (*1) |
80 mm / 640 dots, 72 mm / 576 dots, 64 mm / 512 dots, 54.5 mm / 436 dots, 54 mm / 432 dots, 52.5 mm / dots, 48 mm / 384 dots, 45 mm / 360 dots, 48.75 mm / 390 dots, 68.25 mm / 546 dots |
|
Dot Pitch |
8 x 8 dots/mm (203 x 203 dpi) |
|
Printing Speed (Max.) |
Max. 200 mm/sec, 1600 dots lines / sec. (fastest, print density 100%) |
|
Character Size (*3) |
Font A: 1.50 × 3.00 mm |
|
Line Spacing |
4.25mm (1/6 inch), adjustable by a user by command |
|
Paper feed method |
Friction |
|
Paper Type |
Thermal Paper Roll |
|
Paper Width |
Paper roll: 83+0/-1 mm, 80+0/-1 mm, 60+0/-1 mm, 58 mm+0/-1 |
|
Paper Roll Diameter |
Max Ø 80mm |
|
Paper Supply Method |
Easy Paper Loading, Drop in and Print |
|
Emulation |
ESC/POS |
|
Print Buffer |
4KBytes/45 bytes |
|
User Memory |
384 Kb (capable of storing user-defined characters and logos) |
|
Sensors |
Paper End Sensor , Rear Cover Open Sensor |
|
Drawer Ports |
1 port (opens 2 drawers, special cable is needed to open 2 drawers) |
|
External Device Port |
1 RJ45, 8 Pin Connector |
|
Interfaces |
Serial (RS-232C compliant), Parallel (IEEE1284 compliant), USB, |
|
Driver available |
Windows 2000/NT/XP/VISTA/7 32 bit & 64Bit/OPOS/JavaPOS/ POS for .net/CUPS |
|
Software Utilities |
Firmware/NV Image download |
|
Weight |
approx. 1.9 Kg |
|
External Dimensions (W x D x H) |
140 x 195 x 132mm |
|
Supply Voltage |
DC 24V ± 5% |
|
Power Supply (36AD2, 36AD3) |
Rated input: AC 100 to 240 V, 50/60 Hz, 150 VA Energy Star® approved |
|
Power Consumption |
Approx. 45 W (normal printing), 3W (standby) |
|
Operating Environment |
5-45°C, 10-90% RH |
|
Storage Environment |
-20-60°C, 10-90% RH |
