Description

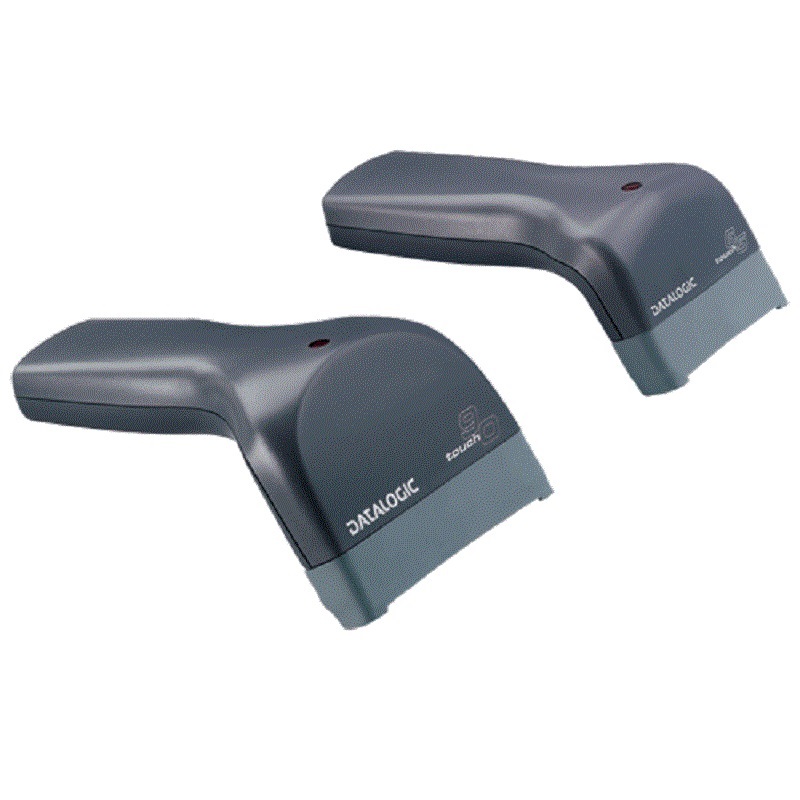

The Datalogic Touch 65/90™ Pro barcode scanner offers high-performance linear imaging in a cost-effective, compact, and ergonomic design – perfect for retail, office automation, and light industrial applications.
With an advanced scan rate of 256 scans/sec, this contact scanner excels at reading poorly printed or damaged barcodes. The PUZZLE SOLVER™ decoding system, exclusive to Datalogic, significantly increases read success by intelligently reconstructing partial barcode data.
Built for flexibility, the Pro version features all-in-one multi-interface support, including USB, RS-232, PS/2 Wedge, and Pen Emulation, making it ideal for diverse integration environments. The scanner also includes full data formatting and editing capabilities, providing control over how scanned data is processed and transmitted.
Available in two models – Touch 65™ (65mm window) and Touch 90™ (90mm window) – the scanner adapts to various scanning field requirements, ensuring high reliability and ease of use.
Product Features
-
High-speed scanning at 256 scans/second
-
Multi-interface support (USB, RS232, Wedge, Pen) in one model
-
Reads damaged or low-contrast barcodes with PUZZLE SOLVER™
-
Data formatting & editing tools (Pro models)
-
Supports GS1 Databar and all major 1D barcodes
-
Ergonomic design with LED and beeper feedback
-
Drop resistant (1.2m to concrete)
-
Flexible mounting options with optional desk/wall holders
Product Specifications
Model Options | Touch 65™ (65mm window) / Touch 90™ (90mm window) |
Scan Technology | Linear Imager with Visible Red LED |
Scan Rate | 256 scans/second |
Max Resolution | 0.10 mm (Touch 65™), 0.13 mm (Touch 90™) |
Reading Distance | 0 to 50 mm (EAN13) |
Interfaces | USB, RS232, Keyboard Wedge (PS2), Pen Emulation (Pro models) |
Symbologies Supported | EAN/UPC, Code 39, Code 128, Codabar, GS1 Databar, ISBN, etc. |
Data Functions | Formatting and editing (Pro models only) |
Programming | Manual (barcode), Software (RS-232), DL Aladdin™ tool |
Indicators | LED + programmable beeper |
Drop Resistance | Withstands 1.2m drops to concrete |
Environmental Rating | IP30 |
Operating Temperature | 0°C to 55°C |
Storage Temperature | -20°C to 70°C |
Humidity | 90% non-condensing |
Dimensions (65/90) | 164 x 77.5 x 63 mm / 175 x 100 x 80 mm |
Weight (65/90) | 160g / 195g |
Cable Length | 2 metres |
Features
- Omnidirectional
- Handheld
- Wired
- USB
- Serial / RS232
- Black
