Description

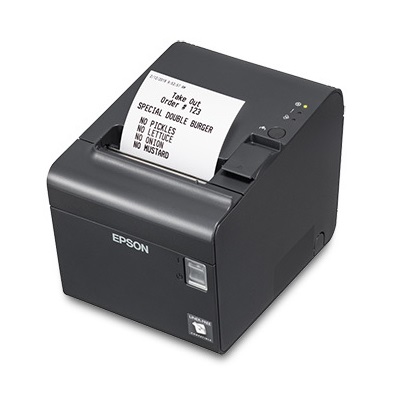

The Epson TM-L90II Linerless Label Printer is a high-performance, compact thermal printer engineered for fast, efficient label and receipt printing. Perfect for hospitality, retail, food service, and order management environments, this printer offers seamless integration into your workflow with dual Ethernet and USB connectivity.
Designed for liner-free label rolls, the TM-L90II features an intelligent label-taken sensor that prevents label overlap, a back-feed mechanism for optimal media usage, and advanced paper-saving functionality that reduces waste by 47%. With flexible media support (40 mm, 58 mm, and 80 mm widths) and compatibility with mobile POS systems, this Epson thermal label printer delivers versatile printing from PCs, smartphones, and tablets. Compact, reliable, and RoHS compliant, it's the smart choice for businesses focused on accuracy, efficiency, and sustainability.
Product Features
- Linerless printing compatibility – ideal for order labelling and receipt applications
- Dual interface support – USB and Ethernet for flexible connectivity
- Label-Taken Sensor – prints one label at a time to prevent sticking and misfeeds
- Back-feed printing – reduces label waste and improves print accuracy
- Up to 170 mm/sec print speed for thermal receipts and 90 mm/sec for labels
- 203 x 203 DPI resolution for crisp, clear text and barcodes
- Advanced paper-saving mode – reduces whitespace and character height to save up to 47>#/p###
- Wide media compatibility – supports 40 mm, 58 mm, and 80 mm widths
- Auto cutter durability – 1 million cuts for labels
- mPOS ready – print from tablets and smartphones
- Energy efficient – low 1.7A mean power consumption
- Compact footprint – ideal for limited counter space
Product Specifications
Specification | Details |
Print Method | Direct Thermal |
Print Resolution | 203 x 203 DPI |
Max Print Speed | 6 IPS (receipts), 3 IPS (labels) |
Print Width | 1.5 inch, 2 inch, 3 inch |
Character Set | 95 Alphanumeric, 37 International, 128x11 Graphic |
Barcode Support | UPC-A/E, EAN-8/13, ITF, Code 39/93/128, CODABAR, QR, MaxiCode, PDF417 |
Paper Diameter | 4 inch (102 mm) |
Auto Cutter Life | 1M cuts (labels), 2M cuts (receipts) |
MTBF / MCBF | 360,000 hrs / 70M lines (receipts) |
Interfaces | USB + Ethernet (standard) |
Power Supply | 24 VDC ±7% (includes PS-180 AC adapter) |
Power Consumption | Approx. 1.7A (mean) |
Dimensions (WxDxH) | 140mm x 148mm x 203mm |
Weight | Approx. 1.9 kg |
Colour | Epson Dark Grey |
Compliance | WEEE, RoHS, CE, FCC, RCM (C-Tick) |
Environmental Ratings | 0°C – 40°C, 10–90% RH non-condensing |
In the Box | Printer, User Manual, Paper Guides (40mm/58mm), Power Supply, AC Cable |
Warranty | 1 Year Standard Limited Warranty |
Features
- Auto-Cutter
- Mobile POS
- Windows
- 3"
- Direct Thermal
- USB
- Serial
- Dark Grey
- Monochrome
- 7
- Desktop
- 3 inch
