Description

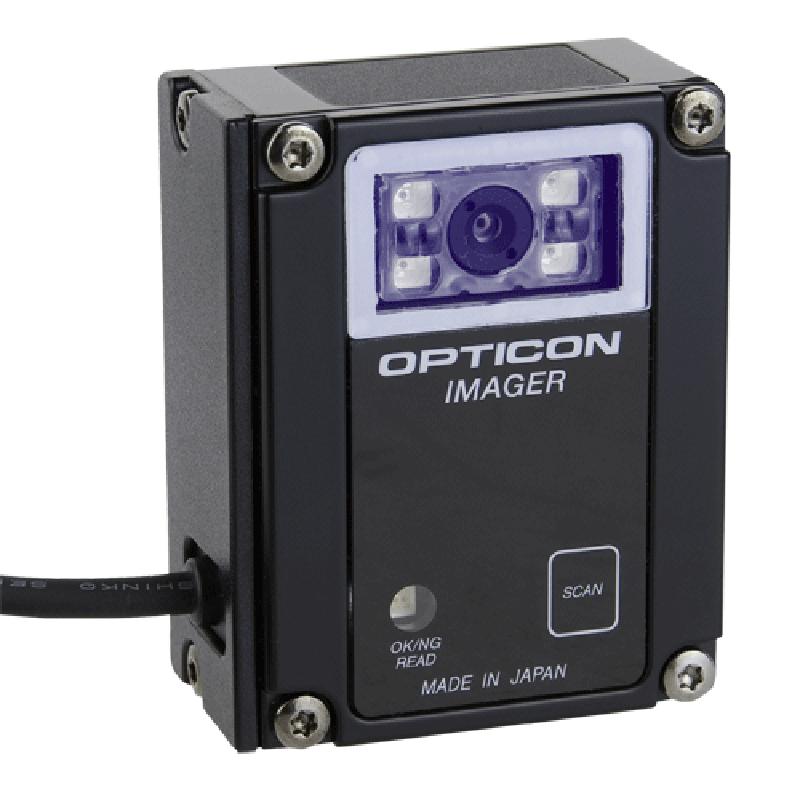

The Opticon NLV2101 is a compact and high-performance stationary 2D CMOS imager scanner, designed for seamless integration into OEM and fixed-mount applications. Built to deliver rapid and reliable scanning, it captures 1D and 2D barcodes with ease—even on curved, reflective, or low-contrast surfaces.
Ideal for retail kiosks, ticketing systems, automation lines, and access control, the NLV2101 offers flexible data capture with RS232 or USB (HID/VCP) connectivity. It features an advanced area sensor, fast frame rates up to 30 fps, multiple trigger modes, and programmable resolutions. Its compact metal housing and IP67 rating ensure outstanding durability, even in dusty or humid environments.
Product Features
-
2D CMOS Imager – Captures both 1D and 2D barcodes with fast and accurate performance
-
Durable Metal Housing – Industrial-grade build with IP67 rating for dust and water resistance
-
High Frame Rate – Up to 30 frames per second for responsive scanning
-
Flexible Triggering – Supports manual, serial, auto-trigger, and multiple read modes
-
Compact Design – Fits easily into OEM devices and tight spaces
-
Wide Decode Range – Reads small barcodes down to 5 mil and supports various formats
-
Multi-Interface Support – RS232 and USB (HID or Virtual COM) options
Product Specifications
Scan Technology | 2D CMOS Area Sensor (SXGA – 1.3 Megapixels) |
Light Source | Red LEDs (illumination), Green LEDs (aiming) |
Scan Rate | Up to 30 frames per second |
Interfaces | RS232 (DB9), USB (HID/VCP) |
Trigger Modes | Manual, auto-trigger, serial, multiple read |
Drop Resistance | 0.75m drop to concrete |
IP Rating | IP67 |
Dimensions (W x H x D) | 46 x 58 x 24.5 mm |
Weight | Approx. 120g (without cable) |
Power Requirement | 5V ±10%, Max 330mA |
Supported 1D Symbologies | Code 39, Code 128, EAN/UPC, GS1, Interleaved 2of5 & more |
Supported 2D Symbologies | QR, Data Matrix, PDF417, Aztec, Micro QR, Composite & more |
