The Opticon OPR-2001 RS232 Laser Barcode Scanner is designed for high-performance scanning in retail, office, and industrial environments where legacy serial connections are required. With a sleek, compact form factor and ergonomic design, the OPR-2001 blends powerful laser scanning technology with hands-free functionality via an optional stand.
Delivering accurate barcode reads at up to 100 scans per second, this scanner supports a wide range of 1D and postal symbologies, including GS1 DataBar and PDF417. Its rugged ABS housing withstands drops from 1.5 metres, while the IP42-rated sealing offers protection from dust and moisture.
Ideal for environments where USB or keyboard wedge isn’t suitable, the RS232 interface ensures reliable communication with older POS systems, industrial terminals, or embedded platforms. The OPR-2001 is a robust and cost-effective choice for dependable barcode capture.
Product Features
High-Speed Laser Scanning – 100 scans/second for accurate and fast barcode capture
-
RS232 Serial Interface – Ideal for legacy systems and embedded industrial setups
-
Ergonomic, Lightweight Design – Compact profile with a comfortable grip
-
Manual & Auto-Trigger Modes – Enables hands-free operation when paired with a stand
-
Wide Barcode Support – Reads all standard 1D barcodes and GS1, PDF417, and postal codes
-
Visual & Audible Feedback – LED and buzzer confirm successful scans
-
Durable Build Quality – Drop tested to 1.5 m onto concrete; rugged ABS housing
-
Ambient Light Resistant – Operates reliably under various lighting conditions
-

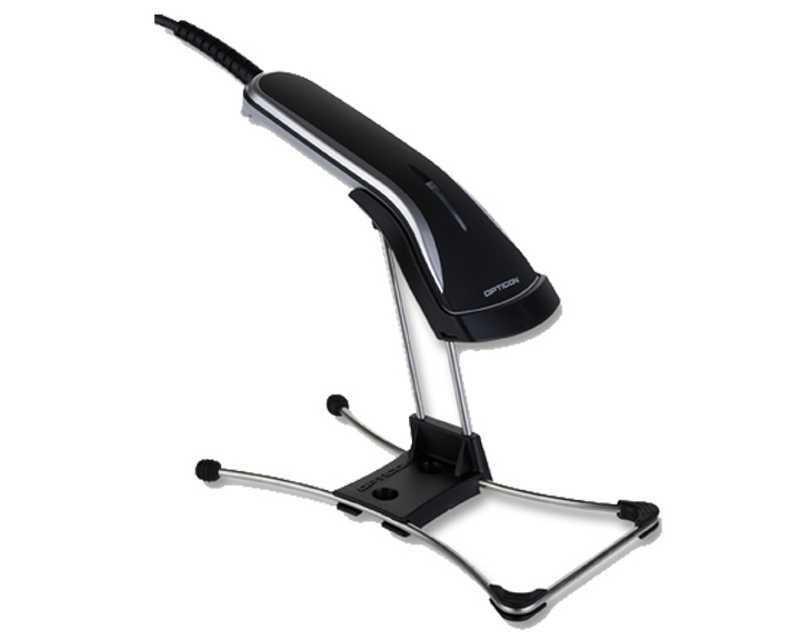

Optional Stand for Hands-Free Use – Enables efficient continuous scanning
-
Compliance & Safety Certified – CE, FCC, RoHS, and laser safety standards
Product Specifications
Scan Technology | 650 nm visible laser diode |
Scan Rate | 100 scans/sec |
Scan Method | Bi-directional laser scanning |
Trigger Modes | Manual, Auto-trigger, Stand detection |
Resolution | Min. 0.127 mm (5 mil) |
Depth of Field | Up to 500 mm (1.0 mm/39 mil barcode) |
Supported Symbologies | 1D barcodes, GS1 DataBar, PDF417, MicroPDF417, postal codes |
Interface | RS232 (DB9 connector, 6V external power supply required) |
Power Supply | 6V DC (min. 4.5V, max. 6.5V) via external PSU |
Power Consumption | Max. 150 mA |
Indicators | LED (red/green/orange), Buzzer |
Operating Temperature | -5°C to 50°C |
Storage Temperature | -20°C to 60°C |
Humidity (Operation) | 20–85% non-condensing |
Ambient Light Immunity | Up to 50,000 lx (direct sunlight) |
Drop Resistance | 1.5 m / 5 ft onto concrete |
Protection Rating | IP42 |
Dimensions (W x H x D) | 56 x 151 x 31 mm |
Weight | 60 g (excluding cable) |
Colour | Black |
Regulatory Compliance | CE, FCC, RoHS, IEC 60825-1 Class 2, FDA CDRH Class II |
Included | Scanner unit, RS232 interface (power supply sold separately) |
