Description

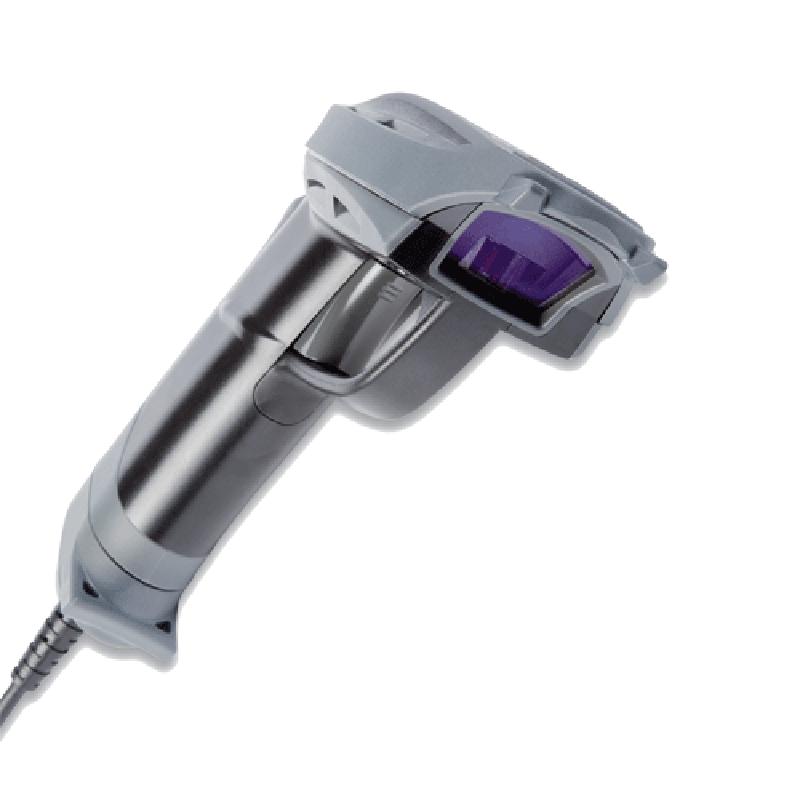

The Opticon OPR-3001 is a powerful and versatile cabled laser barcode scanner designed for high-accuracy 1D and PDF417 scanning in demanding retail, logistics, and industrial environments. Built for rugged performance, the OPR-3001 delivers bi-directional laser scanning at speeds up to 100 scans per second, ensuring rapid and reliable barcode data capture—even with curved, low-contrast, or damaged labels.With support for USB, RS232, and Keyboard Wedge interfaces, this scanner integrates easily into a wide range of point-of-sale and back-office systems. Its IP54-rated housing and 2-metre drop resistance make it ideal for environments where reliability and durability are essential. A wide scanning angle, intuitive LED/buzzer indicators, and an ergonomic design round out the OPR-3001's feature set.Whether for retail checkout, warehousing, ticketing, or government use, the Opticon OPR-3001 offers excellent scanning precision and industrial-grade dependability.
Product Features
- Bi-directional laser scanning with a 100 scans/second rate
- Reads all major 1D barcodes plus PDF417 & MicroPDF417
- High-resolution scanning down to 5 mil at PCS 0.9
- Multiple interface options: USB (HID/VCP), RS232, Keyboard Wedge
- Wide depth of field up to 590mm for large barcodes
- Durable IP54-rated housing and 2.0m drop resistance
- Ergonomic, lightweight design with LED and audible indicators
- Compatible with Windows, POS terminals, and embedded systems
Product Specifications
Model | Opticon OPR-3001 |
Scanner Type | Cabled Laser Barcode Scanner |
Light Source | 650 nm visible laser diode |
Scan Method | Bi-directional laser |
Scan Rate | 100 scans/sec |
Trigger Modes | Manual & Auto-trigger |
Protection Rating | IP54 |
Dimensions (W x H x D) | 68 x 155 x 150 mm |
Weight | Approx. 230 g |
