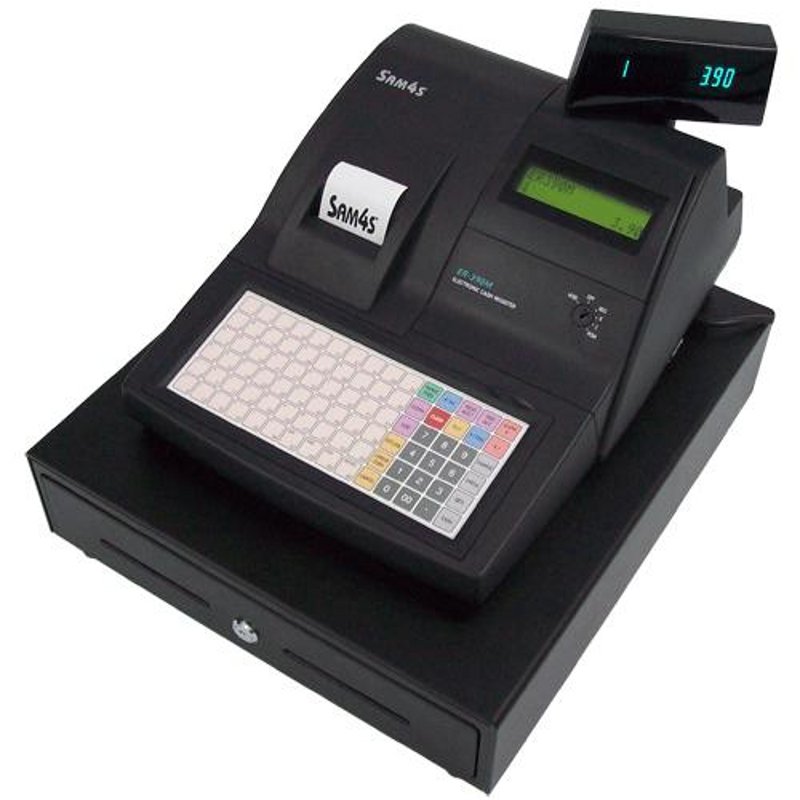

SAM4s ER-390MB Cash Register

ER390MB
[Contact us for a price] Request a quote
Free Shipping order above $500
For Special & Volume Pricing – Call +61 2 8806 0106
Sam4s

Need Help

Choosing a Product
+61 2 8806 0106 Live Chat Email Us
Talk to our technical Expert
price match

Models

[Contact us for a price] Request a quote
[Contact us for a price] Request a quote

Description

** DISCONTINUED - Switch to SAM4S NR-510**

The ER-390MB is a solution for a wide range of Hospitality environments. With its 2 line LCD display and single station thermal printer, it is well suited for the small to medium restaurants. Fast food operations are well catered for with Eat in/Take Away/Drive Through functions.

Main Features :
  • High featured Single Station Cash Register
  • 90 Key Programmable Flat Keyboard
  • High Speed (13.3 LPS) Thermal Printer (57mm paper)
  • Drop in Paper loading
  • 2 x RS232 ports for Scanner, Scale, PC communication, Kitchen/Bar Printer or Journal Surveillance output.
  • 2 Line LCD Operator Display
  • Up to 5000 PLU's
  • Graphic Logo print
  • Electronic Journal up to 3000 lines
  • Interrupt Cashier Lay-away
  • 18 Character Description


Attachments

ER-390MB-Brochure (ER390MB_brochure_S_.pdf, 476 Kb) [Download]

Specifications



Printing Method

Single Station Direct Thermal Type

Printing Speed (Max.)

up to 13.3 LPS

Paper Width

57.5 ± 0.5mm 69.5 ± 0.5mm 76 ± 0.5mm

Paper Roll Diameter

Max Ø 83.0mm

Paper Supply Method

Easy Paper Loading, Drop in and Print

Keyboard

90 Key Flat Keyboard

Display

Operator:

LCD 2 Lines of 16Characters

Customer

10 Digit VFD

Memory

ROM: 4 Mbits Flash ROM

RAM: 2 Mbits standard, 4 Mbits Optional

Memory Protection

60 Days

Interface

2 x RS232

Drawer

4B/8C

Memory Configuration
("Max." depends on

Memory Sharing

choices)

up to 5000 PLU's

Max. 99 Clerks

Max. 99 Groups

Max. 500 Checks (Accounts)

Max. 100 Lines Record Per Account

Soft (Restaurant Style) or Hard (Service Station Style) Check (Account) System

Max. 2 Price Levels

Max. 99 Mix & Match

Max. 15000 Line Electronic Journal

OS Functions

32 Character per Line Logo Description

(6 Lines Heading + 6 Lines Footing)

18 Character Description

15 Digit PLU Number

5 Modifier Levels

10 Macro keys (Manager Control Option - New)

10 Tender Keys

Charge Posting Accounts

Max. 4 Currency Conversion

Inventory Item

Condiment Item

Table Management or Clerk Interrupt

Training Mode

6 Digit Clerk Password

Graphic Logo on the Receipt Heading

Max. 100 Line Record per Transaction

Software Utilities

Programming Utility Software, ASCII converter for PC comm's

Weight

13 Kg

External Dimensions

(W x D x H)

400 x 450 x 266 mm

EMC/Safety Standards

CE, FCC, UL, TUV, GS

Power Supply

AC 230V± 10%
