Description

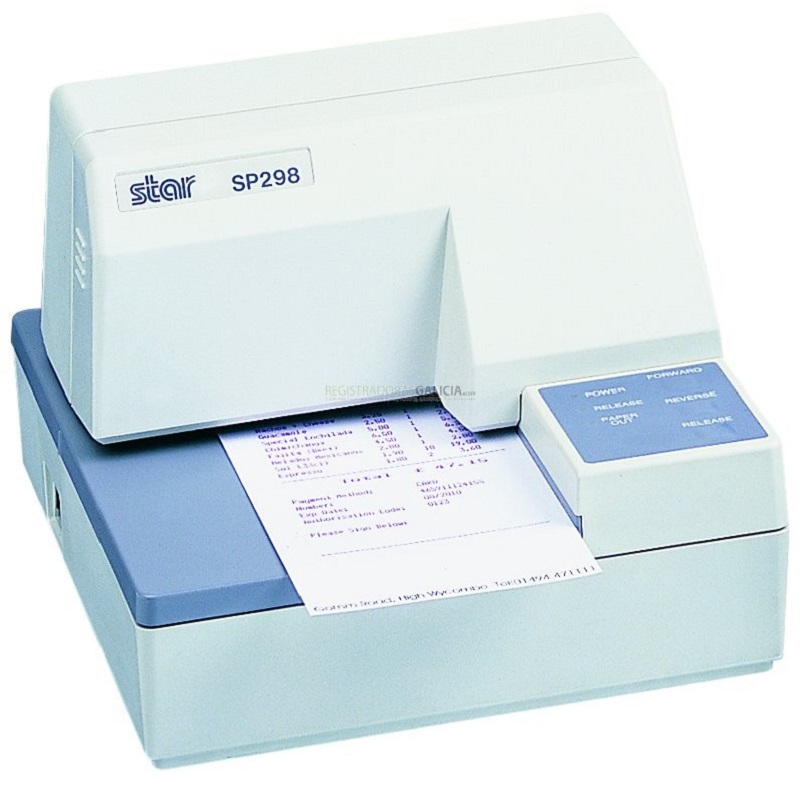

The Star SP298 (Serial Interface) is a reliable and compact 42-column slip printer, engineered for environments that require multi-part form printing, such as hospitality, retail, pharmacy, and banking. It features AutoSide Loading™ for simple document insertion and alignment, ensuring top-of-form accuracy and easy handling.
Built with a robust 9-pin impact dot matrix print head, the SP298 prints up to 3.1 lines per second and supports original + 2 copies—making it perfect for cheque printing, form-based orders, and branded pre-printed documents. This model comes equipped with a PS60A-24C Power Supply (B1), offering convenient setup right out of the box.
The SP298 serial model (RS-232C interface) ensures seamless integration into legacy POS systems while maintaining high reliability, with a 70 million character head life and 9 million line MCBF.
Product Features
-
Serial RS-232C interface for reliable legacy POS integration
-
42-column format ideal for form printing and multi-part documents
-
Prints original + two copies (multi-ply slips)
-
AutoSide Loading™ for quick and accurate slip feeding
-
High-performance 9-pin impact print head
-
Up to 3.1 lines per second print speed with bi-directional cheque mode
-
Compatible with Epson TM-U295 – same footprint and emulation
-
PS60A-24C power supply (B1) included – ready to use out of the box
-
ESC/POS™ and Star mode emulations for flexible software compatibility
-
Compact footprint – fits easily in tight retail or hospitality environments
Product Specifications
Print Method | 9-pin serial impact dot matrix |
Interface | Serial (RS-232C) |
Print Speed | Up to 3.1 lines/sec (bi-directional cheque mode) |
Number of Columns | 42 columns (7 x 9 font) |
Copy Capability | Original + 2 copies |
Paper Width | 69–80 mm |
Print Width | 63 mm |
Paper Feed Speed | Forward: 3.5”/sec, Reverse: 4.5”/sec |
Dimensions (WxDxH) | 180 x 190 x 138.5 mm |
Weight | Approx. 2.1 kg |
Certifications | UL, C-UL, FCC, TÜV, CE, CB |
Features
- Serial
- Grey
- 2.5inch
