Description

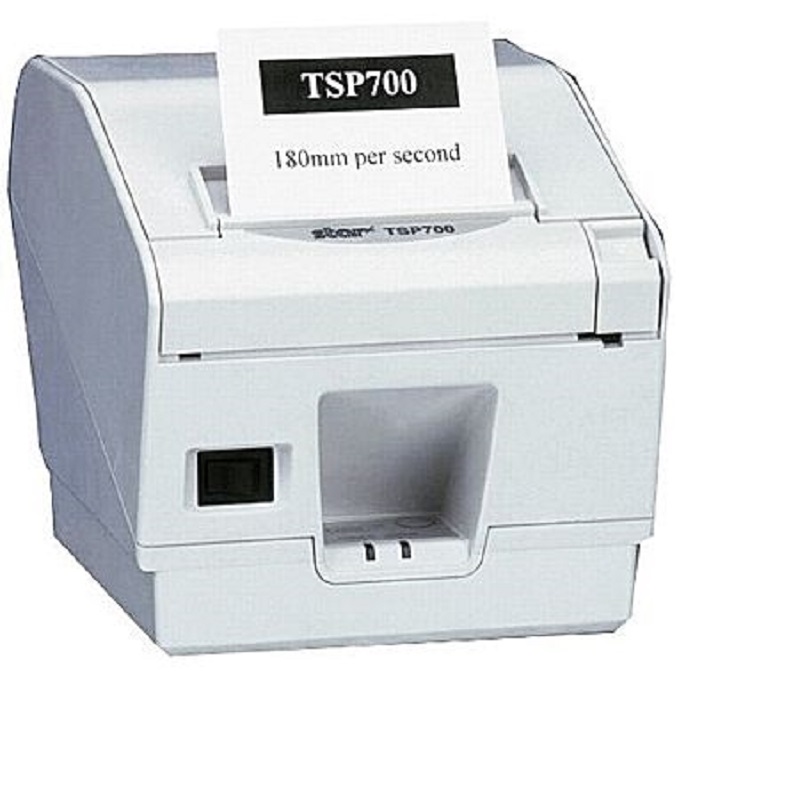

The Star TSP743 (Ethernet) is a high-performance thermal receipt, ticket, and label printer engineered for demanding environments that require speed, versatility, and network connectivity. With ultra-fast print speeds of up to 250mm/second and impressive processing under both Windows™ and DOS, this printer excels in retail, hospitality, gaming, lottery, and label printing applications.
Featuring Ethernet connectivity, the TSP743 allows seamless integration into modern LAN-based POS systems, supporting remote printing or shared access across multiple terminals. With its unique Auto Logo function, users can easily print logos and promotional graphics without slowing down performance. The printer supports a wide range of media widths including 80mm, 82.5mm for lottery use, and 58mm for label applications.
Built to handle thicker media up to 150gsm and offering two-colour printing (with appropriate media), the TSP743 ensures clear, durable output for high-impact receipts and branded tickets. Multiple mounting options and versatile emulations including Star Line Mode and ESC/POS™ make the TSP743 a flexible choice for any professional POS setup.
Product Features
-
High-speed printing at up to 250mm/second
-
Ethernet interface for network connectivity
-
Supports receipt, label, barcode, and ticket printing
-
Handles media thickness up to 0.15mm / 150gsm
-
Auto Logo feature for efficient graphic/logo printing
-
Flexible paper width support: 80mm (standard), 82.5mm (lottery), and 58mm (labels)
-
Wall and vertical mounting kits for space-saving installations
-
Star Line Mode & ESC/POS™ compatibility
-
Two-colour print capability (requires special paper)
-
Available in White or Charcoal Grey
Product Specifications
Print Method | Direct Thermal |
Max. Print Speed | 250 mm/sec |
Interfaces | Ethernet (LAN), Optional USB or Serial |
Media Types | Receipts, Labels, Tickets, Barcodes |
Supported Paper Widths | 80mm, 82.5mm (lottery), 58mm (label) |
Media Thickness | Up to 0.15mm / 150gsm |
Auto Cutter | Yes |
Emulation | Star Line Mode, ESC/POS™ |
Drivers | OPOS™, JavaPOS™, Windows™, Linux CUPS, Raster Driver |
Mounting Options | Wall & Vertical Kits Included |
Colour Options | White, Charcoal Grey |
Advanced Features | Auto Logo Printing, Second Copy Raster Driver |
Power Supply | External (PS60A-24C included) |
Features
- Auto Cutter
- Thermal Print
- Ethernet
- Grey
- White
- 250mm/sec
- 3 inch
