Description

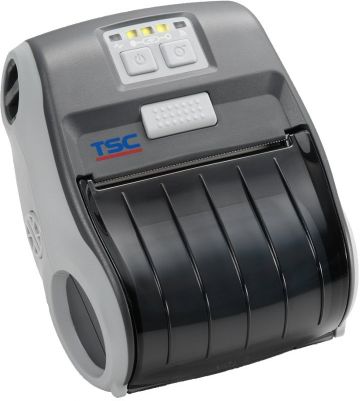

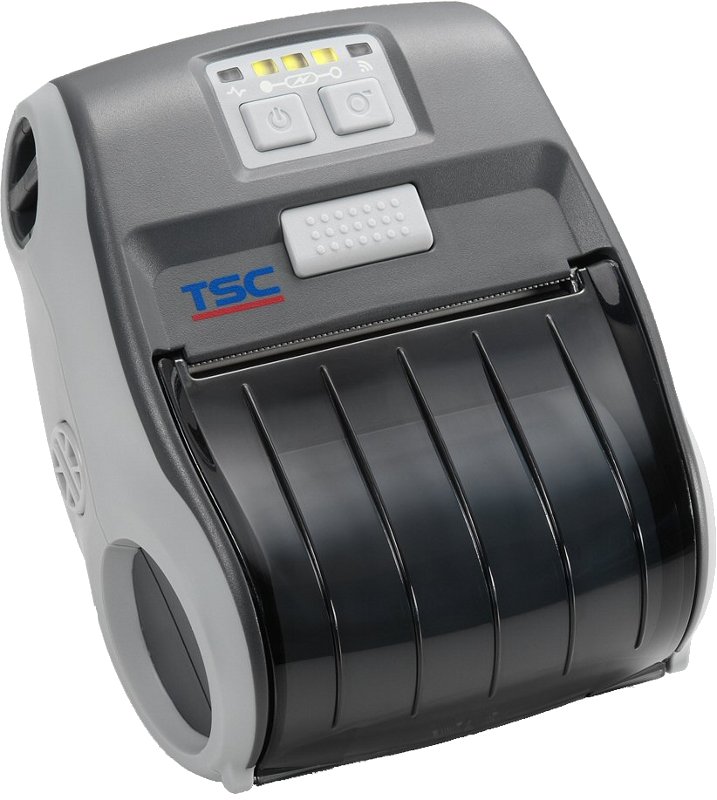

The TSC Alpha-3R is a durable, compact, and high-speed 3-inch direct thermal mobile receipt printer, designed for businesses that require on-the-go printing in challenging environments. Whether you're issuing receipts, tickets, or field service documentation, this lightweight unit simplifies mobile operations with reliable performance and robust design.
Equipped with a 2500mAh Li-ion battery, the Alpha-3R delivers over 12 hours of continuous printing and supports USB, RS-232, Bluetooth, and WiFi (802.11 b/g/n) for flexible connectivity. With IP54-rated protection and the ability to survive drops up to 1.5 meters, this printer is built to withstand the toughest mobile working conditions.
Its advanced TSPL-EZ (EPL2/ZPL2) and CPCL emulations ensure seamless integration with existing applications, while fast print speeds up to 102 mm/sec, large paper capacity, and quick paper loading boost productivity in retail, transportation, field service, logistics, and more.
Product Features
-
Rugged design with IP54-rated case and 1.5m drop resistance
-
Fast print speed of up to 102 mm/sec (4" per second)
-
3" wide receipt and label printing with 72mm max print width
-
Lightweight (0.55 kg) and compact for handheld or belt-clip use
-
Long-lasting 2500mAh Li-ion battery provides over 12 hours of uptime
-
USB 2.0 interface standard, with optional Bluetooth, WiFi, or RS-232
-
Supports linerless black-mark and standard thermal receipt media
-
4MB Flash / 8MB SDRAM memory with 32-bit RISC CPU
-
Supports 1D and 2D barcodes including QR, DataMatrix, PDF417
-
Compatible with TSPL-EZ, EPL2, ZPL2, and CPCL emulations
-
Optional IP54 environmental case with shoulder strap
Product Specifications
Print Method | Direct Thermal |
Max Print Speed | Up to 102 mm/sec |
Max Print Width | 72 mm (2.83") |
Resolution | 203 dpi (8 dots/mm) |
Drop Protection | 1.5 metres |
IP Rating | IP54 with case |
Memory | 4MB Flash, 8MB SDRAM |
Connectivity Options | USB 2.0 (Standard), RS-232, Bluetooth, WiFi 802.11 b/g/n |
Paper Width | Max 80 mm (3.15") |
Media Roll Diameter | Max Ø 57 mm |
Battery | 7.4V, 2500mAh Li-ion, rechargeable |
Battery Life | Over 12 hours (printing), 1-cell charger included |
Barcodes Supported | 1D: Code 39, 128, UPC, EAN; 2D: PDF417, QR Code, DataMatrix |
Printer Languages | TSPL-EZ, CPCL, EPL2, ZPL2 |
Dimensions (WxHxD) | 116 x 148 x 70 mm |
Weight | 0.55 kg |
Accessories Included | Belt Clip, Battery, Power Adapter, Quick Start Guide, CD |
Software Compatibility | Windows labeling software, SDKs for iOS, Android, Windows |
Features
- Mobile
- Thermal Print
- USB
- Wireless
- Bluetooth
- Black
- 170mm/sec
- 3 inch
