Description

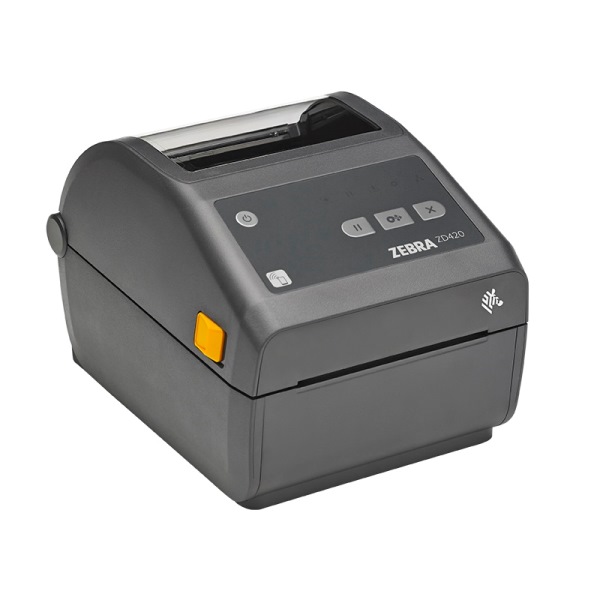

The Zebra ZD420D 300dpi Direct Thermal Label Printer delivers industry-leading print quality and flexibility, ideal for applications requiring high-resolution, crisp labels. Designed for dynamic business environments, this 4 inch desktop printer is engineered for ease of use, easy media loading, and swift deployment. With its modular, field-upgradeable design, you can add Ethernet, serial, or media handling options like a cutter or peeler – all without taking the printer out of service.
The ZD420D features Zebra’s Link-OS operating system and Print DNA suite, making remote printer management effortless, even across distributed locations. Whether in healthcare, retail, logistics, or government, the ZD420D supports fast-paced workflows with dependable, high-resolution 300dpi direct thermal printing.
Product Features
- High-resolution 300dpi printing for crisp text, barcodes, and graphics
- Modular design – upgrade interfaces and media options on-site
- Supports ZPL, EPL, XML, and ZBI programming languages
- User-friendly interface with 5 status icons and 3 control buttons
- USB 2.0 and USB Host connectivity standard
- Link-OS and Zebra Print DNA enabled for remote printer management
- ENERGY STAR certified for energy efficiency
- OpenACCESS clamshell design for quick media changes
- Dual-wall frame construction for added durability
- Ideal for high-resolution labelling in healthcare, retail, and logistics
Product Specifications
Specification | Details |
Print Method | Direct Thermal |
Print Resolution | 300 dpi (12 dots/mm) |
Max Print Width | 4 inch (108mm) |
Max Print Speed | 4 IPS (102 mm/sec) |
Print Languages | ZPL II, EPL 2, XML, ZBI |
Interface | USB 2.0, USB Host (Standard) |
Optional Connectivity | RS-232 Serial, Ethernet, Wi-Fi, Bluetooth |
Memory | 512 MB Flash, 128 MB SDRAM (without network module) |
Media Width | 4 inch |
Max Label Length | 991mm (39 inch) |
Media Thickness | 0.08mm to 0.1905mm |
Media Roll Diameter | 5 inch (127mm) |
Core Sizes Supported | 0.5 inch & 1 inch |
Sensors | Multi-position transmissive and full-width reflective sensors |
Dimensions (WxDxH) | 177mm x 220mm x 150mm |
Weight | 1.6 kg |
Operating Temperature | 4.4°C to 41°C |
Software & OS Support | Windows, macOS, Linux, Android (via Zebra SDKs) |
Barcode Support | 1D and 2D (QR, PDF417, DataMatrix, etc.) |
Warranty | 2 Year Standard Manufacturer’s Warranty |
