Description

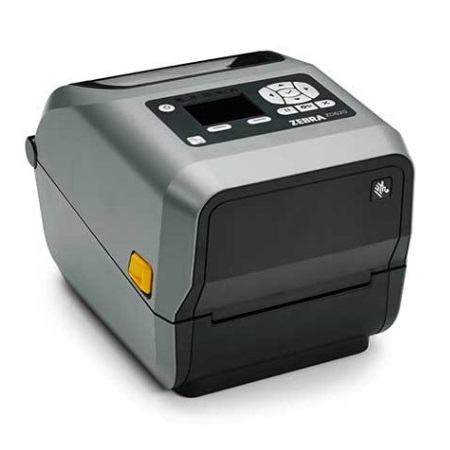

The Zebra ZD620 203DPI Thermal Transfer Label Printer delivers top-tier desktop printing performance for businesses that demand speed, accuracy, and flexibility. As the successor to Zebra’s GX Series and ZD500 models, the ZD620 redefines what desktop printing can offer, combining exceptional print quality with versatile connectivity and simplified management tools.
Equipped with a colour LCD screen and 10-button interface, this model is easy to configure and operate, even in demanding environments. Featuring USB, Ethernet, Serial, Bluetooth (BTLE), and USB Host interfaces, the ZD620 is designed to seamlessly integrate into existing systems. The built-in peeler/dispenser enhances productivity, especially in high-throughput labelling operations.
Whether you’re printing shipping labels, barcodes, or product tags, the ZD620 is the premium choice for fast, high-resolution label production in industries like retail, healthcare, warehousing, and logistics across Australia.
Product Features
- 203DPI print resolution for crisp, high-quality labels and barcodes
- Supports Thermal Transfer and Direct Thermal print methods
- Peel-and-present (dispenser) functionality for faster workflows
- Colour LCD with 10-button interface for intuitive control and status feedback
- Multiple connectivity options: USB, Serial, Ethernet, Bluetooth (BTLE), USB Host
- Runs on Zebra Link-OS with Print DNA suite for remote management and security
- Backward compatibility with Zebra GX and ZD500 label formats
- Easy media loading with OpenACCESS design
- ENERGY STAR qualified with durable dual-wall construction
- Optional Zebra OneCare support for extended maintenance
Product Specifications
Specification | Details |
Model | Zebra ZD620 |
Part Number | PRZZD62142T0PF00EZ |
Print Technology | Thermal Transfer / Direct Thermal |
Print Resolution | 203 DPI |
Max Print Speed | 8 IPS (203 mm/sec) |
Max Print Width | 4 inch (104 mm ) |
Print Length | Max. 991 mm |
Connectivity Interfaces | USB 2.0, USB Host, Serial (RS-232), Ethernet, Bluetooth Low Energy (BTLE) |
Display | Colour LCD with 10-button user interface |
Media Handling | Built-in Dispenser (Peel and Present) |
Memory | 512 MB Flash / 256 MB SDRAM |
Supported Media Types | Roll-fed, fan-fold, die-cut, continuous, tags, black mark, wristbands |
Media Width | 4 inch |
Ribbon Support | Yes (thermal transfer mode) |
Printer Languages | ZPL II, EPL 2, XML, ZBI, PDF Direct |
OS Compatibility | Windows, iOS, Android |
Dimensions | 267mm x 202mm x 192mm |
Weight | Approx. 2.5 kg |
Energy Efficiency | ENERGY STAR certified |
Warranty | 2-Year Manufacturer Warranty |
