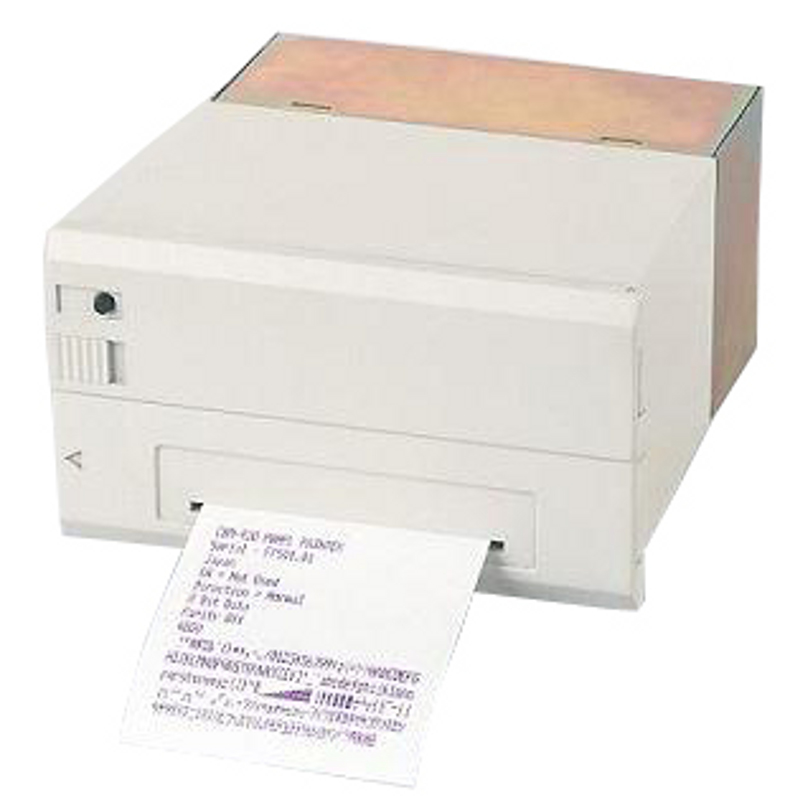

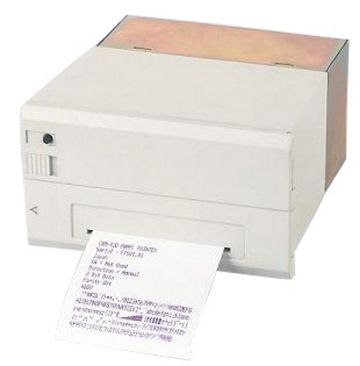

Citizen CBM-920-40P Mini Dot Matrix Receipt Printer With Parallel Interface

No Auto-Cutter, 50mm, Windows, Impact, Parallel, White, CITIZEN
$409.00
For Special & Volume Pricing - Call +61 2 9090 4610
CBM920-40P
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Models

Description

The CITIZEN CBM-920 is a compact and robust 40-column mini panel printer, designed for embedded applications in industrial and commercial environments. Engineered with reliable serial dot matrix printing, it delivers consistent performance at speeds of up to 1.8 lines per second. Ideal for panel mounting, this printer supports multi-copy (up to 3-ply) plain or carbon paper printing and includes auto-loading functionality for ease of use. With compatibility across legacy and modern systems via serial or parallel interfaces, and a 2K print buffer for efficient data handling, the CBM-920 is perfect for data logging, ticketing, and system integration needs.

Product Features

  • Reliable serial impact dot matrix printing technology

  • Supports up to 3-ply printing for multi-copy receipts or logs

  • Up to 1.8 lines per second printing speed

  • Designed for secure panel mounting with a compact footprint

  • Dual interface options: Serial (RS-232C) or Parallel (IEEE1284)

  • Auto paper loading function enhances user convenience

  • Compatible with legacy Windows OS (up to Windows 8)

  • 2K print buffer with selectable 72 bytes mode

  • Built-in sensors for paper end, near-end, voltage & mechanical errors

  • Supports international character sets and multiple code pages

Product Specifications

Printing Method

Serial Impact Dot Matrix

Printing Speed (Max.)

1.8 lines/sec (40 Column)

Printing Width

180 dots/line (40 Column)

Dot Pitch

(4+0.5) x 8

Paper Width

57.5 mm ± 0.5 mm

Paper Diameter

Max. Ø 50 mm

Paper Type

Plain bond or 2-ply paper

Paper Thickness

Max. 0.09 mm

Paper Feed Method

Friction with Auto Loading

Character Sets

Alphanumeric, International, PC437, Katakana

Print Buffer

2K bytes / 72 bytes (switchable)

Sensors

Paper near-end, Paper end, Error detection

Emulation

CBM920 & iDP3110

Interfaces

Serial RS-232C or Parallel IEEE1284

Driver Support

Windows 95/98/XP/Vista/7/8 (Text Mode)

Power Supply

DC 5V control (0.2A), 5V driving (2.5–4A peak)

Power Consumption

7 VA (printing), 0.5 VA (standby)

Dimensions (W x D x H)

115 × 65 × 119 mm

Panel Cut-out Size

109 x 62 mm

Weight

0.5 kg

Operating Temperature

0°C to 40°C

Operating Humidity

35% – 85% RH (non-condensing)

Storage Temperature

-20°C to 60°C

Reliability (MCBF)

1.0 million lines (40-column model)



Features

Cutter Option:
  • No Auto-Cutter
Max Roll Diameter:
50mm
OS Compatability:
  • Windows
Print Method:
  • Impact
Interface:
  • Parallel
Color:
  • White
Manufacturer
:
CITIZEN

Attachments

CBM-920-Brochure (cbm-920.pdf, 35 Kb) [Download]

Specifications (CBM920-40P.pdf, 210 Kb) [Download]
