Description

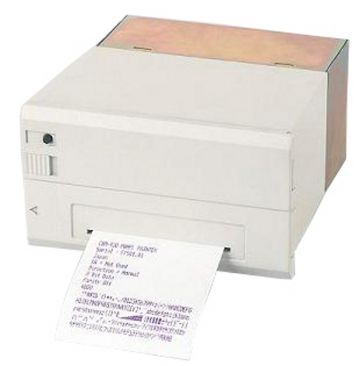

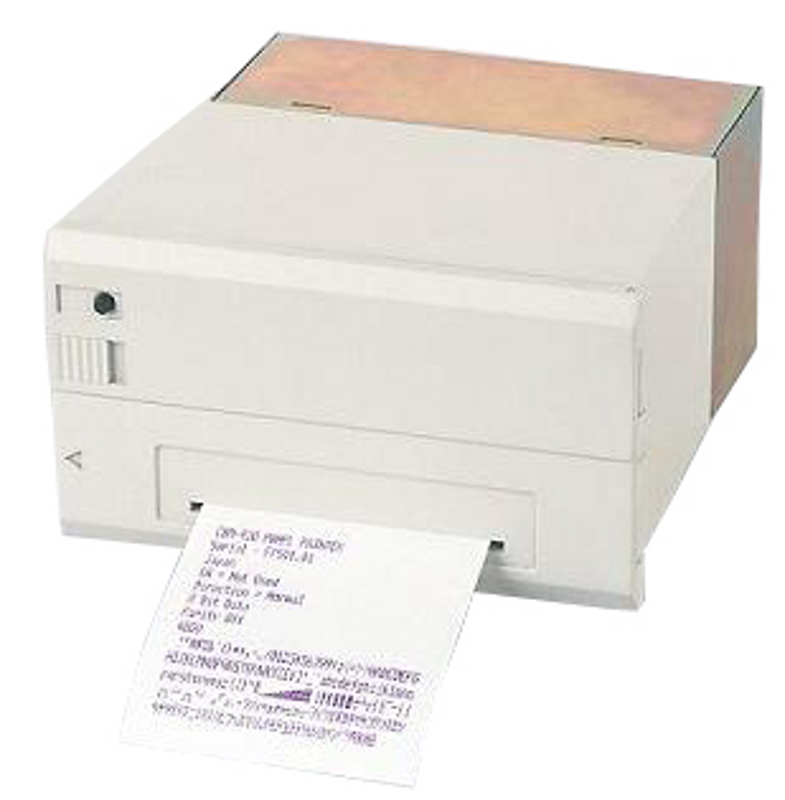

The CITIZEN CBM-920 is a compact and highly durable 40-column mini panel printer, specifically engineered for industrial and embedded applications requiring clear and consistent dot matrix printing. With RS232 serial interface connectivity, this panel-mount printer delivers dependable performance, printing at speeds up to 1.8 lines per second. Its 2K print buffer and support for multi-copy (up to 3-ply) plain or carbon paper make it an excellent choice for data logging, reporting, ticketing and diagnostic systems. Designed for reliability and space-saving installation, the CBM-920 excels in both legacy and modern setups.
Product Features
-
Reliable serial dot matrix printing for clear, impact-based receipts
-
Up to 1.8 lines/second printing speed for 40-column output
-
RS232 (Serial) interface for system integration
-
Panel-mount design with secure fitting and compact size
-
Supports 3-ply paper printing for carbon copy output
-
Auto-loading function for quick and easy paper handling
-
Built-in error detection: paper near-end, paper end, low/high voltage
-
2K byte buffer with selectable 72-byte mode for smoother data flow
-
Compatible with CBM920 & iDP3110 emulation modes
-
Ideal for data logging, embedded systems, and industrial control panels
Product Specifications
Printing Method | Serial Impact Dot Matrix |
Print Speed | 1.8 lines/sec (40-column) |
Printing Width | 180 dots/line (40-column) |
Dot Pitch | (4+0.5) x 8 |
Number of Columns | 40 |
Character Size | (4+0.5) x 8 |
Character Table | Alphanumeric, PC437 |
Line Spacing | 3.52 mm |
Paper Width | 57.5 mm ± 0.5 mm |
Paper Diameter | Max Ø 50 mm |
Paper Type | Plain or 2-ply bond paper |
Paper Thickness | 0.09 mm or less |
Paper Feed | Friction, Auto Loading Function |
Auto Cutter | Not Supported |
Indicators | Paper LED, Feed Switch |
Sensors | Paper end, near-end, mechanical error detection |
Interfaces | RS232 Serial |
Emulation | CBM920, iDP3110 |
Print Buffer | 2K bytes / 72 bytes (switchable) |
Power Supply | DC 5V (control), DC 5V (2.5–4A driving system) |
Power Consumption | 7 VA printing / 0.5 VA standby |
Dimensions (W x D x H) | 115 × 65 × 119 mm |
Panel Cut-Out Size | 109 x 62 mm |
Weight | 0.5 kg |
Operating Temp/Humidity | 0–40°C / 35–85% RH (non-condensing) |
Storage Temp/Humidity | -20–60°C / 10–90% RH (non-condensing) |
Reliability (MCBF) | 1.0 million lines (40-column model) |
Driver Support | Windows 95/98/ME/XP/Vista/7/8 (text-only) |
Features
- No Auto-Cutter
- Windows
- Impact
- Serial / RS232
- White
