Description

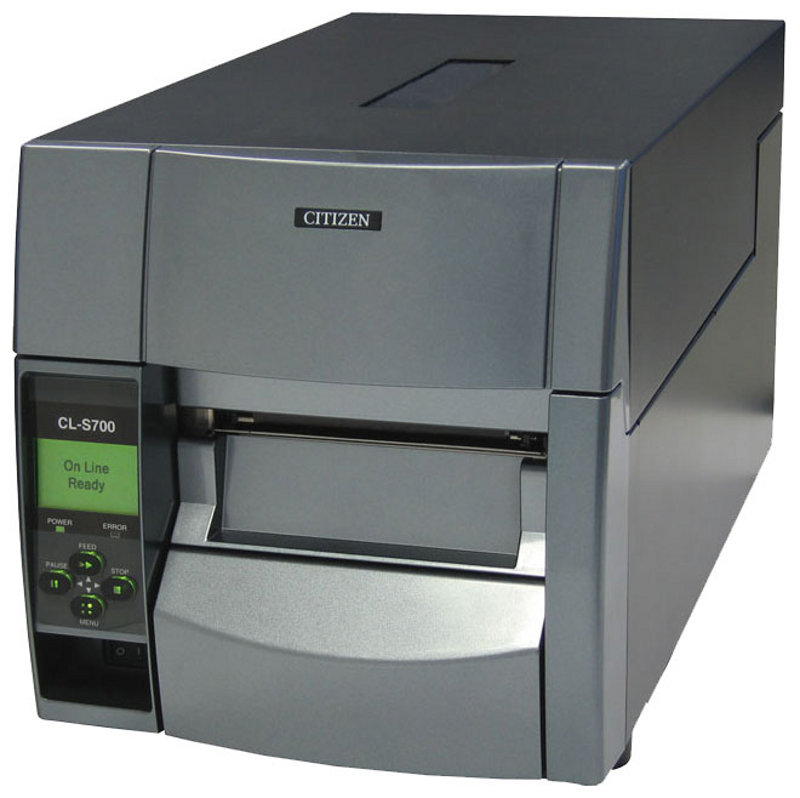

Built for industrial strength labelling, the Citizen CL-S700 is a powerful, high-speed label printer that combines performance, reliability, and ease of use in a rugged metal case. Designed for demanding applications in manufacturing, logistics, retail, and warehousing, the CL-S700 delivers crisp 203DPI resolution at speeds of up to 254mm/sec (10 IPS).
This model features Citizen’s innovative Hi-Lift™ metal mechanism, allowing the printer to open to a full 90° for easy media and ribbon access. The large graphical LCD display and VuePrint™ menu system make configuration and status checking intuitive, while Cross-Emulation™ technology automatically detects and switches between Zebra® and Datamax® languages—ensuring easy integration into existing systems.
Supporting both thermal transfer and direct thermal printing, the CL-S700 can handle media 4 inch (118mm) wide, with ribbon compatibility for up to 450 metres, ideal for high-volume label printing. With standard USB, Parallel, and Serial interfaces and optional Ethernet and Wireless LAN, the CL-S700 offers excellent connectivity options to suit any environment.
Whether you're printing barcode labels, shipping tags, or product identifiers, the CL-S700 stands out as a rugged, versatile choice for professional-grade label printing.
Product Features
- 203DPI Resolution – Sharp text and barcode printing for industrial labelling
- Hi-Lift™ Clamshell Mechanism – Opens 90° for easy ribbon and media access
- Durable Metal Construction – Built to withstand harsh environments
- Supports 450m Ribbons – Inside or outside wound, with ARCP™ ribbon control
- Large Graphic LCD – Easy to navigate with clear printer status and configuration
- Cross-Emulation™ Technology – Auto-detects Zebra® and Datamax® languages
- Standard Connectivity – USB 1.1, Serial RS-232C, and Parallel (IEEE-1284)
- Optional Connectivity – Ethernet or Wireless LAN available
- Fast Print Speed – Up to 10 IPS (254 mm/sec)
- Wide Media Compatibility – Handles labels from1 inch to 4 inch (25.4mm to 118mm) in width
- User-Friendly Menu – VuePrint™ configuration system for simplified operation
- 2-Year Manufacturer Warranty – Reliable and supported in Australia
Product Specifications
Specification | Details |
Model | CL-S700 |
Print Method | Thermal Transfer & Direct Thermal |
Print Resolution | 203 DPI (8 dots/mm) |
Max Print Speed | 10 IPS (254 mm/sec) |
Max Print Width | 4 inch (104 mm) |
Max Print Length | 812 mm |
Media Width | 1 inch to 4 inch (25.4 mm to 118 mm) |
Media Types | Roll, Fanfold, Die-cut, Continuous, Tags, Tickets |
Ribbon Length | Up to 450m (inside/outside wound) |
Media Thickness | 0.0635 mm to 0.254 mm |
Interfaces (Standard) | USB 1.1, RS-232 Serial, IEEE-1284 Parallel |
Optional Interfaces | Ethernet, Wireless LAN |
Display | Graphic LCD with 4 control buttons |
Memory | 16MB SDRAM, 4MB Flash (1MB user-available each) |
Emulations | Cross-Emulation™ (Zebra® ZPL-II®, Datamax®) |
Dimensions | 255mm x 490mm x 265mm |
Weight | 13.3 kg |
Power Supply | AC 100–240V, 1.5–3.5A, 50/60Hz |
Operating Environment | 0°C to 40°C, 30–80% RH (non-condensing) |
Warranty | 2-Year Manufacturer's Warranty |
