Description

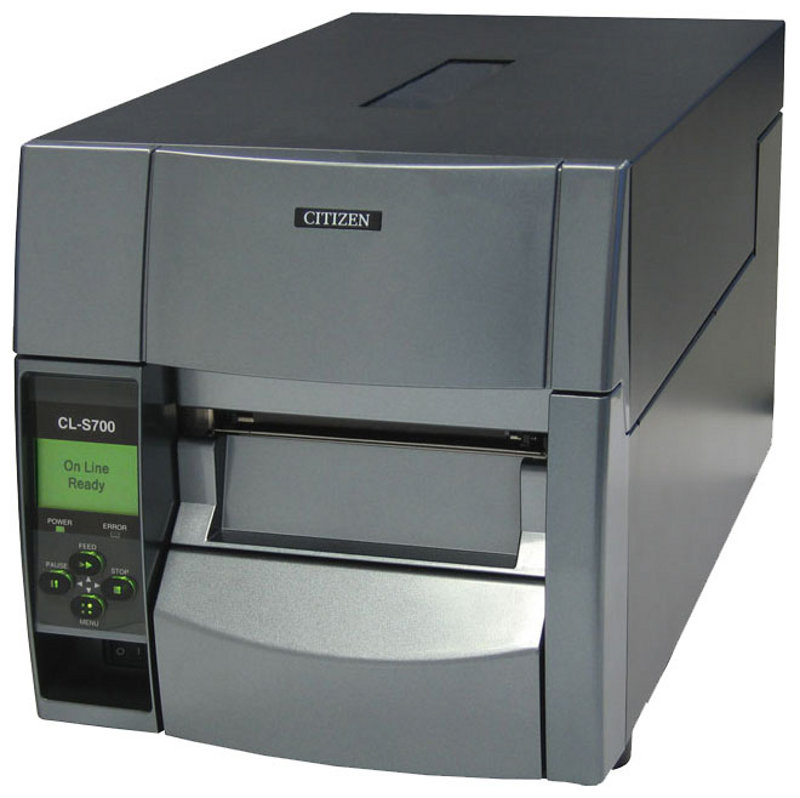

The Citizen CL-S700RW is a robust industrial 4-inch thermal transfer and direct thermal label printer built to deliver high-volume performance in warehouse, manufacturing, logistics, and retail environments across Australia. Featuring a 203DPI print resolution, fast print speeds of up to 10 IPS (254mm/sec), and an integrated internal rewinder, this printer is designed to handle demanding labelling applications with precision and efficiency.
The CL-S700RW features Citizen’s exclusive Hi-Lift™ metal mechanism, enabling easy 90° access for ribbon loading, along with ARCP™ ribbon control technology for consistent, high-quality output. With standard USB, RS232 Serial and Parallel interfaces, and optional Ethernet and Wireless LAN, this printer integrates seamlessly into any system. The large graphic LCD display, Cross-Emulation™ technology, and reliable rewind capability make the CL-S700RW a top-tier industrial labelling solution.
Product Features
- Thermal Transfer and Direct Thermal Printing – Handles a wide range of media types
- 203DPI Print Resolution – Ideal for clear text and barcodes
- Internal Rewinder Included – Efficient handling of printed labels
- Fast Print Speed – Up to 10 inches per second (254 mm/sec)
- Hi-Lift™ 90° Metal Mechanism – For fast, easy ribbon and media loading
- ARCP™ Ribbon Control – For smooth, wrinkle-free printing
- Cross-Emulation™ – Automatic switching between Zebra® and Datamax® languages
- Multiple Interfaces – USB, RS232, Parallel (standard), optional Ethernet/Wi-Fi
- Large Graphic LCD Display – Clear status indicators and intuitive configuration
- Heavy-Duty Metal Construction – Built for industrial environments
- Supports Long Ribbons – Up to 450 metres (inside or outside wound)
Product Specifications
Specification | Details |
Model | CL-S700RW |
Print Method | Direct Thermal and Thermal Transfer |
Resolution | 203 DPI (8 dots/mm) |
Max Print Width | 4 inch (104 mm |
Max Print Speed | 10 IPS (254 mm/sec) |
Max Print Length | 812 mm |
Media Width | 4 inch |
Label Width | 7.62 mm – 118 mm |
Media Roll Diameter | Up to 203 mm |
Core Size | 1.5 inch - 3 inch (38 – 76 mm) |
Media Thickness | 0.0635 – 0.254 mm |
Ribbon Length | Up to 450 metres |
Ribbon Winding | Inside or outside wound |
Ribbon System | ARCP™ automatic tension control |
Interfaces (Standard) | USB 1.1, RS232 Serial, Parallel IEEE 1284 |
Interfaces (Optional) | Ethernet LAN, Wireless LAN |
Display | Graphic LCD with 4-button VuePrint™ system |
Memory | 16MB SDRAM (1MB usable), 4MB Flash (1MB usable) |
Emulations | Zebra® ZPL-II®, Datamax® |
Sensors | Transparent, Reflective, Optional Peeler Sensor |
Dimensions (WxDxH) | 255mm x 490mm x 385mm |
Weight | 17.6 kg |
Operating Temperature | 0°C to 40°C |
Humidity (Operating) | 30% to 80% RH (non-condensing) |
Power Supply | AC100 – 240V, 50/60Hz, Max 3.5A |
Warranty | 2-Year Manufacturer’s Warranty (Australia) |
