Models
Description

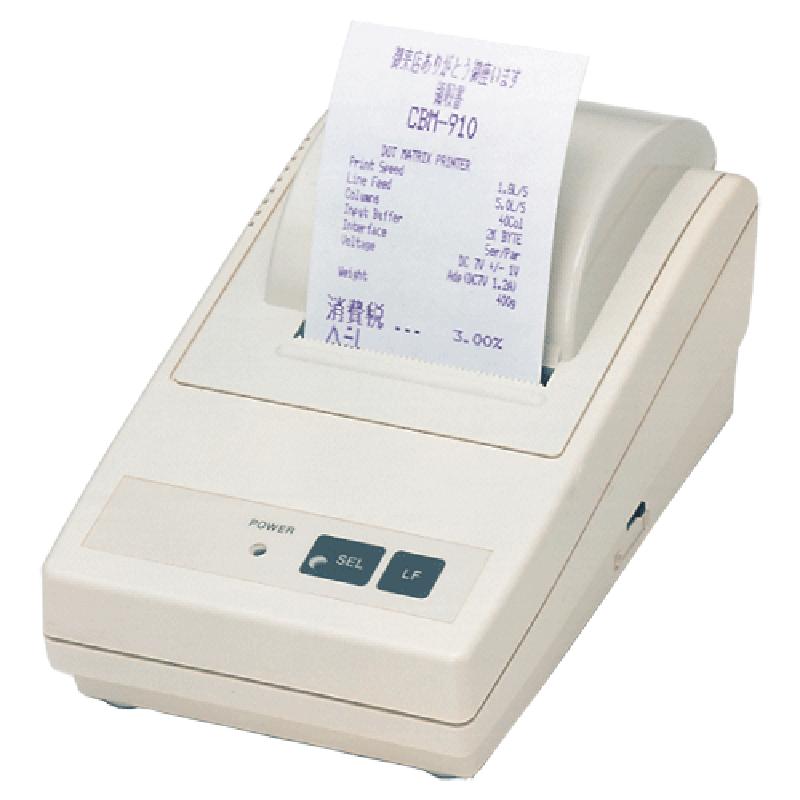

The Citizen CBM-910 is a compact and reliable 24-column dot matrix mini printer designed for applications where space is limited but performance is key. Ideal for data logging, instrumentation, and portable receipt printing, this palm-sized printer delivers a printing speed of up to 2.5 lines per second with quiet and efficient serial dot matrix technology.
Equipped with a parallel interface (IEEE1284 compliant), the CBM-910 integrates seamlessly with legacy and modern systems alike. It supports plain bond and multi-ply paper (up to 3 layers), making it suitable for businesses requiring duplicate or triplicate records.
The CBM-910 is fully compatible with the iDP3110 series, and comes with selectable CBM910 and iDP emulation, ensuring smooth system integration. With selectable buffer memory, intuitive LED indicators, and a robust build weighing under 500g, this printer is perfect for industrial, retail, and mobile setups.
Product Features
-
Parallel interface (IEEE1284) for dependable, high-speed data transfer
-
2.5 LPS print speed on 24-column configuration
-
Supports multi-part forms (up to 3 plies)
-
Compact, palm-sized design ideal for space-limited environments
-
Friction feed mechanism and easy paper roll loading
-
Selectable emulation: CBM910 & iDP3110 for versatile system compatibility
-
2K printer buffer for improved performance
-
Compatible with Windows XP, Vista, 7, 8 (Text only driver support)
-
LED indicators for Power, Paper Out, and Error status
-
Citizen quality and durability with up to 1.5 million MCBF lines
Product Specifications
Printing Method | Serial Impact Dot Matrix |
Print Speed | Up to 2.5 lines/sec (24 column) |
Interface | Parallel (IEEE1284 compliant) |
Print Width | 24 columns (144 dots/line) |
Paper Width | 57.5 mm ± 0.5 mm |
Paper Roll Diameter | Max Ø 60 mm |
Media Support | Plain bond or up to 3-ply paper |
Emulation | CBM910 & iDP3110 (selectable) |
Buffer Memory | 2K bytes / 72 bytes (selectable via memory switch) |
LED Indicators | Power (Green), Paper (Orange), Error (Red) |
Dimensions | 106 mm (W) x 180 mm (D) x 88 mm (H) |
Weight | Approx. 0.47 kg |
Power Supply | Optional (7V DC, not included) |
Operating Temp | 0°C to 40°C, 10%–85% RH (non-condensing) |
Features
- No Auto-Cutter
- Impact
- Parallel
- White
