Description

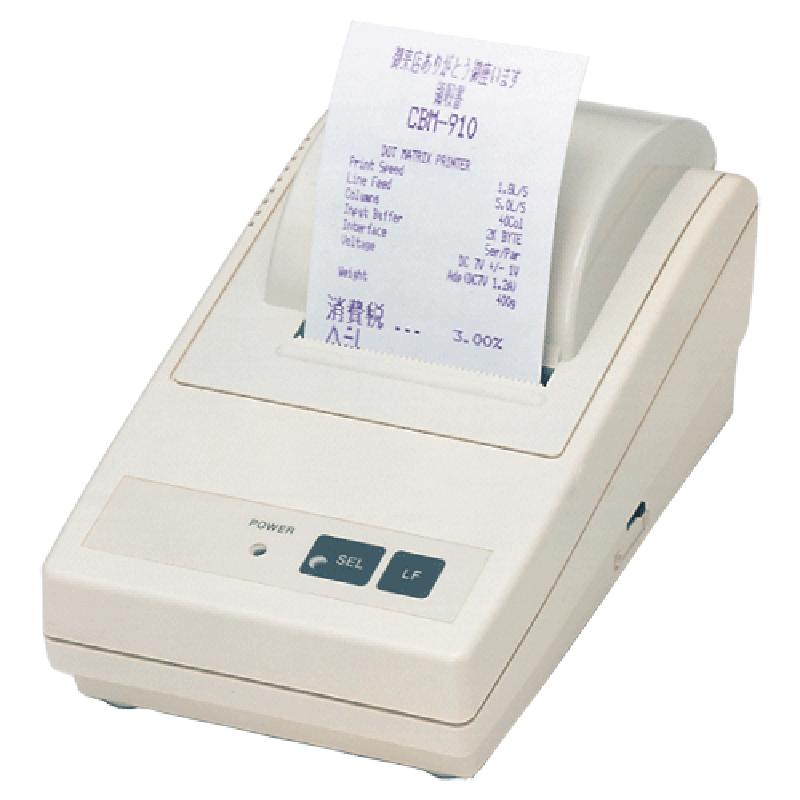

Compact, lightweight, and reliable, the Citizen CBM-910 40-Column Mini Printer delivers high-quality serial dot matrix printing for applications like data logging, field reporting, transaction slips, and POS confirmations. With a RS232 interface, it seamlessly connects to legacy and embedded systems.
This palm-sized printer offers a printing speed of up to 1.8 lines per second in 40-column mode and supports plain or 2-ply bond paper, making it ideal for multi-copy tasks. Built with a 2K byte buffer, memory-switch selectable emulation (CBM910/iDP3110), and intuitive LED status indicators, it’s a perfect choice for industries that demand durability, simplicity, and efficiency.
Product Features
-
RS232 Serial interface (9-pin) for straightforward integration
-
Prints up to 1.8 LPS in 40-column format
-
Compact design (only 106mm wide) – ideal for handheld or embedded use
-
Supports plain and 2-ply bond paper for duplicate or triplicate copies
-
2K buffer memory for smooth data handling
-
CBM910 and iDP3110 compatible emulations (selectable via memory switch)
-
LED indicators: Power, Paper, and Error
Durable and efficient for data logging, ticketing, and receipt applications
Product Specifications
Printing Method | Serial Impact Dot Matrix |
Interface | RS232 Serial (DB9, compliant) |
Printing Speed | Up to 1.8 lines/sec (40-column mode) |
Print Width | 180 dots/line |
Paper Width | 57.5 mm ± 0.5 mm |
Paper Roll Diameter | Max Ø 60 mm |
Media Type | Plain or 2-ply bond paper |
Buffer Memory | 2K bytes or 72 bytes (selectable) |
Character Set | PC437, PC850/852/857/858, Katakana, WPC1252, Int'l Sets |
Emulation | CBM910 & iDP3110 (selectable) |
Indicators | Power (Green), Paper (Orange), Error (Red) |
Dimensions (WxDxH) | 106 x 180 x 88 mm |
Weight | Approx. 0.47 kg |
Power Supply | Optional (DC 7V ± 1V – not included) |
Operating Conditions | 0–40°C, 10–85% RH (non-condensing) |
Features
Cutter Option:
- No Auto-Cutter
Print Method:
- Impact
Interface:
- Serial / RS232
Color:
- White
Print Width:
- 24 or 40 Column width
