Description

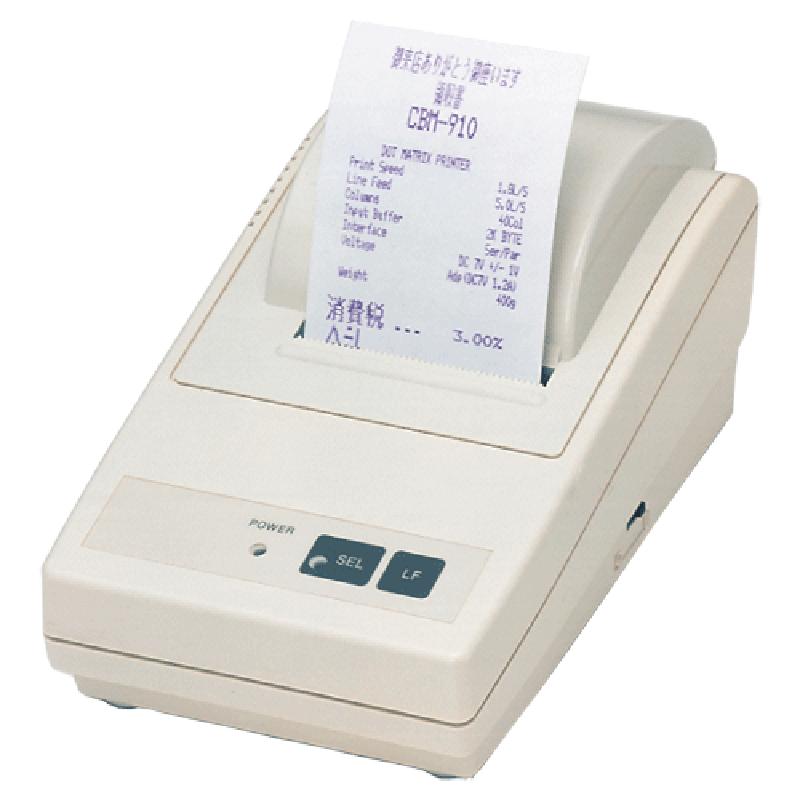

The Citizen CBM-910 40-Column Mini Printer is a compact and robust dot matrix printer designed for environments where space and reliability matter. Equipped with a parallel (IEEE1284) interface, it delivers consistent, efficient performance for applications such as data logging, multi-copy receipt printing, and embedded POS systems.
Despite its palm-sized dimensions, this 40-column printer handles 3-ply paper, making it ideal for applications requiring original plus multiple copies. With CBM910 and iDP3110 emulation, LED indicators, and a 2K print buffer, this printer is fully compatible with legacy setups while offering impressive durability and value.
Product Features
-
Parallel interface (IEEE1284) for dependable data transmission
-
Prints up to 1.8 lines per second in 40-column mode
-
Compact and lightweight design for desktop, handheld, or embedded use
-
Supports plain bond and 2-ply paper for duplicate/triplicate receipt printing
-
Selectable emulation modes: CBM910 or iDP3110
-
2K buffer memory for smooth processing
-
Visual status indicators: Power, Paper, and Error
-
Ideal for data logging, ticket printing, and compact POS systems
Product Specifications
Printing Method | Serial Impact Dot Matrix (one-way) |
Interface | Parallel (IEEE1284 compliant) |
Printing Speed | Up to 1.8 lines/sec (40-column) |
Print Width | 180 dots/line |
Paper Width | 57.5 mm ± 0.5 mm |
Roll Diameter | Max Ø 60 mm |
Paper Type | Plain bond or 2-ply |
Dot Pitch | 40-column: (4+0.5) x 8 |
Print Buffer | 2K bytes |
Emulation Modes | CBM910 / iDP3110 (selectable via memory switch) |
Indicators | Power (Green), Paper (Orange), Error (Red) |
Dimensions (WxDxH) | 106 x 180 x 88 mm |
Weight | Approx. 0.47 kg |
Power Supply | Optional (DC 7V ± 1V – not included) |
Power Consumption | Approx. 7 VA (printing), 0.5 VA (standby) |
Operating Temperature | 0 – 40°C, 10 – 85% RH (non-condensing) |
Storage Conditions | -20 – 60°C, 10 – 90% RH (non-condensing) |
Features
- No Auto-Cutter
- Impact
- Parallel
- White
- 4.7
- 24 or 40 Column width
